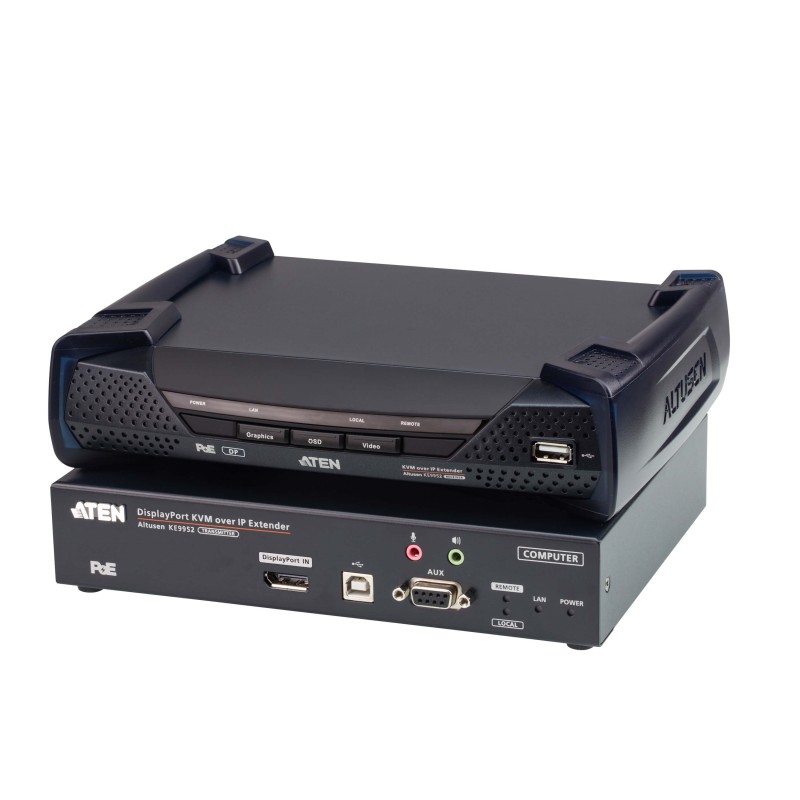

KE9952-AX - KE9952-AX

Data sheet

Type

Transmitter & receiver

Product color

Black

Connectivity technology

Wired

Weight

6.13 lbs (2.78 kg)

Harmonized System (HS) code

84733080

Certification

RoHS

Package weight

7.19 lbs (3.26 kg)

Material

Metal

Master (outer) case width

9.72" (247 mm)

Master (outer) case length

21.9" (556 mm)

Master (outer) case height

6.02" (153 mm)

Master (outer) case weight

8.36 lbs (3.79 kg)

Quantity per master (outer) case

1 pc(s)

Package width

9.72" (247 mm)

Package depth

21.9" (556 mm)

Package height

6.02" (153 mm)

LED indicators

Yes

Maximum digital resolution

3840 x 2160 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Cables included

DisplayPort, USB

Number of displays supported

1

Manual

Yes

Receiver weight

2.8 lbs (1.27 kg)

Color depth

36 bit

On Screen Display (OSD)

Yes

Maximum transfer distance

393700.8" (10000 m)

Master (outer) case net weight

6.13 lbs (2.78 kg)

Cable types supported

Cat5e

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

Rack mounting

Yes

Transmitter video port type

DisplayPort

Transmitter width

8.46" (21.5 cm)

Transmitter depth

6.42" (16.3 cm)

Transmitter height

1.65" (4.18 cm)

Transmitter weight

2.54 lbs (1.15 kg)

Receiver local video port type

DisplayPort

Receiver local keyboard/mouse port type

USB

PC Audio in

Yes

PC Audio out

Yes

AC adapter output voltage

48 V

Power consumption (transmitter) (max)

11.88 W

Transmitter local keyboard/mouse port type

USB

Receiver width

8.98" (22.8 cm)

Receiver depth

6.77" (17.2 cm)

Receiver height

2.16" (5.48 cm)

RS-232 ports

2

Power consumption (receiver) (max)

10.04 W

Specific References

EAN13

4719264648755

MPN

KE9952-AX
