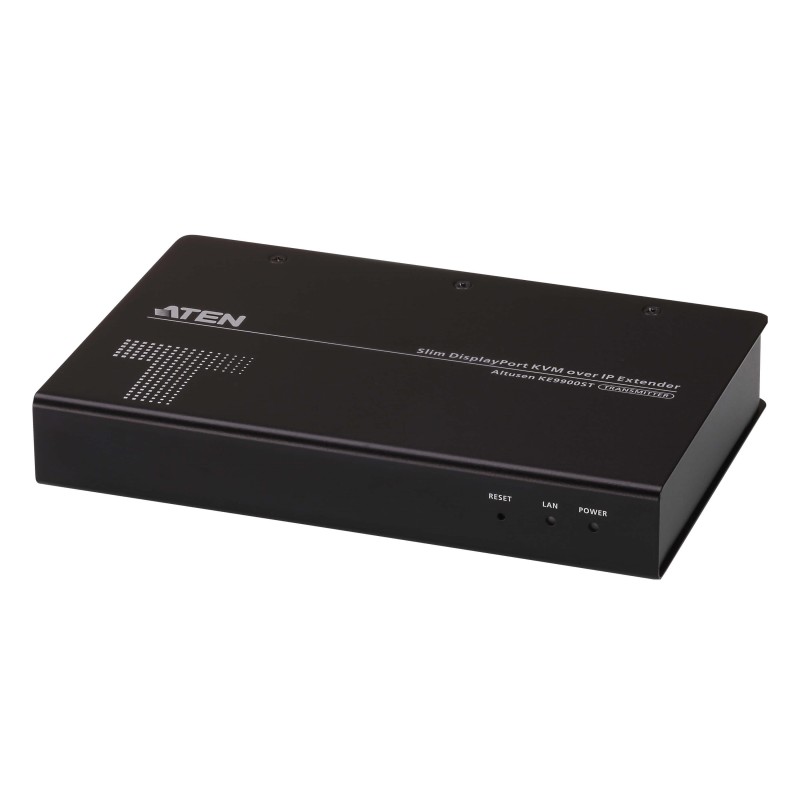

KE9900ST-AX-G - KE9900ST-AX-G

Data sheet

Type

Transmitter

Product color

Black

Connectivity technology

Wired

Weight

2.29 lbs (1.04 kg)

Harmonized System (HS) code

84733080

Certification

RoHS

Package weight

2.73 lbs (1.24 kg)

Material

Metal

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

14.9 lbs (6.78 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

LED indicators

Yes

Maximum digital resolution

1920 x 1200 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 95%

AC adapter included

Yes

Cables included

DisplayPort, USB

Number of displays supported

1

Manual

Yes

Color depth

24 bit

Master (outer) case net weight

11.5 lbs (5.2 kg)

Cable types supported

Cat5e

RJ-45 ports quantity (transmitter)

1

Rack mounting

Yes

Transmitter video port type

DisplayPort

Transmitter width

7.17" (18.2 cm)

Transmitter depth

4.65" (11.8 cm)

Transmitter height

1.13" (2.87 cm)

Transmitter weight

22.9 oz (650 g)

AC adapter output voltage

5, 12 - 48 V

Power consumption (transmitter) (max)

6.97 W

Transmitter local keyboard/mouse port type

USB

RS-232 ports

1

Specific References

EAN13

4719264647567

MPN

KE9900ST-AX-G
