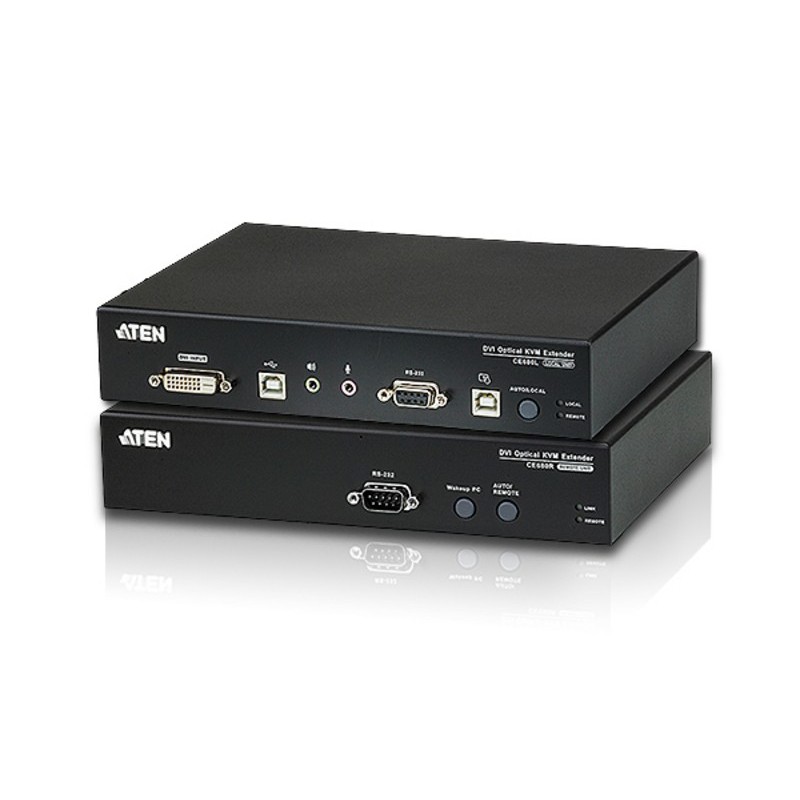

CE680-AT-G

Data sheet

Type

Transmitter & receiver

Product color

Black

Connectivity technology

Wired

Weight

6.57 lbs (2.98 kg)

Harmonized System (HS) code

84733080

Package weight

8.62 lbs (3.91 kg)

Material

Metal

Master (outer) case width

9.72" (247 mm)

Master (outer) case length

21.9" (556 mm)

Master (outer) case height

6.02" (153 mm)

Master (outer) case weight

8.62 lbs (3.91 kg)

Quantity per master (outer) case

1 pc(s)

Package width

9.72" (247 mm)

Package depth

21.9" (556 mm)

Package height

6.02" (153 mm)

LED indicators

Link, Power

Maximum digital resolution

1920 x 1200 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Manual

Yes

Receiver weight

2.43 lbs (1.1 kg)

Maximum transfer distance

23622" (600 m)

Quick installation guide

Yes

Master (outer) case net weight

6.57 lbs (2.98 kg)

Rack mounting

Yes

Transmitter video port type

DVI-D

Transmitter width

8.46" (21.5 cm)

Transmitter depth

6.42" (16.3 cm)

Transmitter height

1.65" (4.18 cm)

Transmitter weight

2.43 lbs (1.1 kg)

Supported resolutions

1920 x 1200

Receiver local video port type

DVI-D

Receiver local keyboard/mouse port type

USB

AC adapter output voltage

5.3 V

Transmitter local keyboard/mouse port type

USB

Receiver width

8.46" (21.5 cm)

Receiver depth

6.42" (16.3 cm)

Receiver height

1.65" (4.18 cm)

Specific References

EAN13

4719264641138

MPN

CE680-AT-G
