CE624-AT-G

Name: Aten CE624-AT-G
Brand: Aten
SKU: 135912
Price: 1375.2 CHF
Availability: BackOrder

Brand Aten

ATEN CE624-AT-G, Transmitter & receiver, Wired, 5905.5" (150 m), Cat5, Cat5e, Cat6, Cat6a, 1920 x 1200 pixels, 1600x1200, 1920x1200, 1920x1080

CHF1,375.2

Tax included

CHF1,272.2 Tax excluded

Delivery in several days

Quantity

Will be ordered for you

Description
Product Details

Description

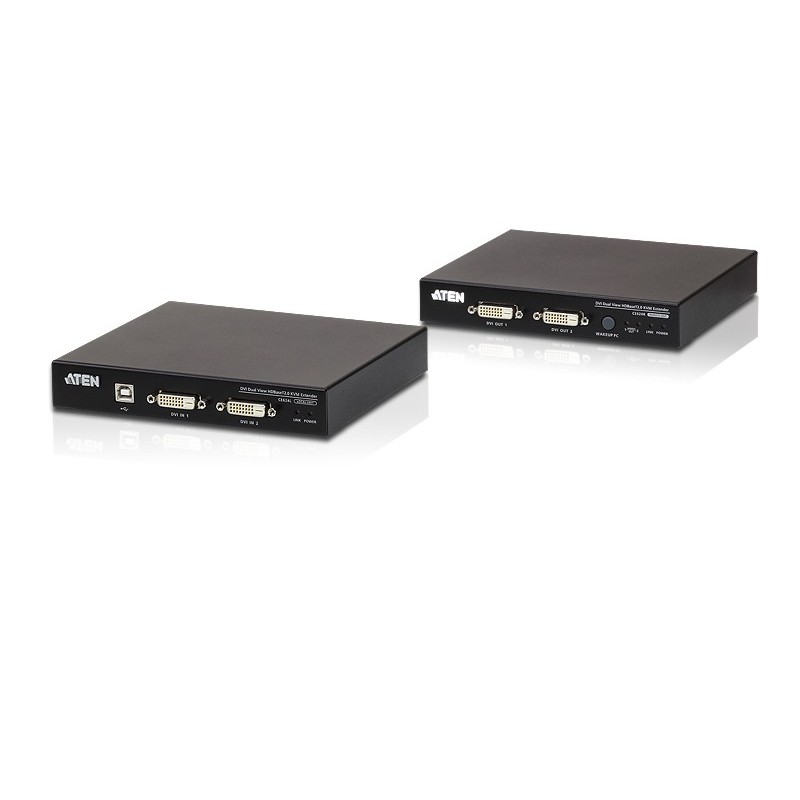

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
1x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
1x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
2x LIN5-26W1-W11G DVI-D Cables (1.8m)
1x LIN5-0205-21DG Pink Audio Jack Cable Sets (1.8m)
1x LIN5-0205-21CG Green Audio Jack Cable Sets (1.8m)
1x LIN6-04U1-V1BG USB Cable (1.8m)
2x 0AD6-8005-40MG Power Adapters
2x LIN2-418K-E12G Power cord
8x Foot Pads
2x Mounting Kits
1x User Instructions

ATEN CE624-AT-G. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 5905.5" (150 m). Transmitter video port type: DVI-D, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: DVI-D, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V. Transmitter width: 6.85" (17.4 cm), Transmitter depth: 6.26" (15.9 cm), Transmitter height: 1.13" (2.88 cm)

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	5905.5" (150 m)
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
Rack mounting	Yes
Maximum digital resolution	1920 x 1200 pixels
Supported resolutions	1600x1200, 1920x1200, 1920x1080
Product color	Black
Material	Metal
LED indicators	Link, Power
Transmitter video port type	DVI-D
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver local video port type	DVI-D
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
AC adapter output voltage	5 V
Transmitter width	6.85" (17.4 cm)
Transmitter depth	6.26" (15.9 cm)
Transmitter height	1.13" (2.88 cm)
Transmitter weight	28.2 oz (800 g)
Receiver width	6.85" (17.4 cm)
Receiver depth	6.26" (15.9 cm)
Receiver height	1.13" (2.88 cm)
Receiver weight	28.6 oz (810 g)
Package width	5.16" (131 mm)
Package depth	21.3" (540 mm)
Package height	9.17" (233 mm)
Package weight	8.91 lbs (4.04 kg)
Manual	Yes
Quick installation guide	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight	8.05 lbs (3.65 kg)
Master (outer) case net weight	8.05 lbs (3.65 kg)
Harmonized System (HS) code	84733080
Master (outer) case width	9.72" (247 mm)
Master (outer) case length	21.9" (556 mm)
Master (outer) case height	6.02" (153 mm)
Master (outer) case weight	8.91 lbs (4.04 kg)
Quantity per master (outer) case	1 pc(s)

Product Details

Availability date: 2025-12-19

Condition New

Data sheet

Type: Transmitter & receiver
Product color: Black
Connectivity technology: Wired
Weight: 8.05 lbs (3.65 kg)
Harmonized System (HS) code: 84733080
Package weight: 8.91 lbs (4.04 kg)
Material: Metal
Master (outer) case width: 9.72" (247 mm)
Master (outer) case length: 21.9" (556 mm)
Master (outer) case height: 6.02" (153 mm)
Master (outer) case weight: 8.91 lbs (4.04 kg)
Quantity per master (outer) case: 1 pc(s)
Package width: 5.16" (131 mm)
Package depth: 21.3" (540 mm)
Package height: 9.17" (233 mm)
LED indicators: Link, Power
Maximum digital resolution: 1920 x 1200 pixels
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%
Manual: Yes
Receiver weight: 28.6 oz (810 g)
Maximum transfer distance: 5905.5" (150 m)
Quick installation guide: Yes
Master (outer) case net weight: 8.05 lbs (3.65 kg)
Cable types supported: Cat5, Cat5e, Cat6, Cat6a
RJ-45 ports quantity (transmitter): 1
RJ-45 ports quantity (receiver): 1
Rack mounting: Yes
Transmitter video port type: DVI-D
Transmitter width: 6.85" (17.4 cm)
Transmitter depth: 6.26" (15.9 cm)
Transmitter height: 1.13" (2.88 cm)
Transmitter weight: 28.2 oz (800 g)
Supported resolutions: 1600x1200, 1920x1200, 1920x1080
Receiver local video port type: DVI-D
Receiver local keyboard/mouse port type: USB
AC adapter output voltage: 5 V
Transmitter local keyboard/mouse port type: USB
Receiver width: 6.85" (17.4 cm)
Receiver depth: 6.26" (15.9 cm)
Receiver height: 1.13" (2.88 cm)

Specific References

EAN13: 4719264645143
MPN: CE624-AT-G
