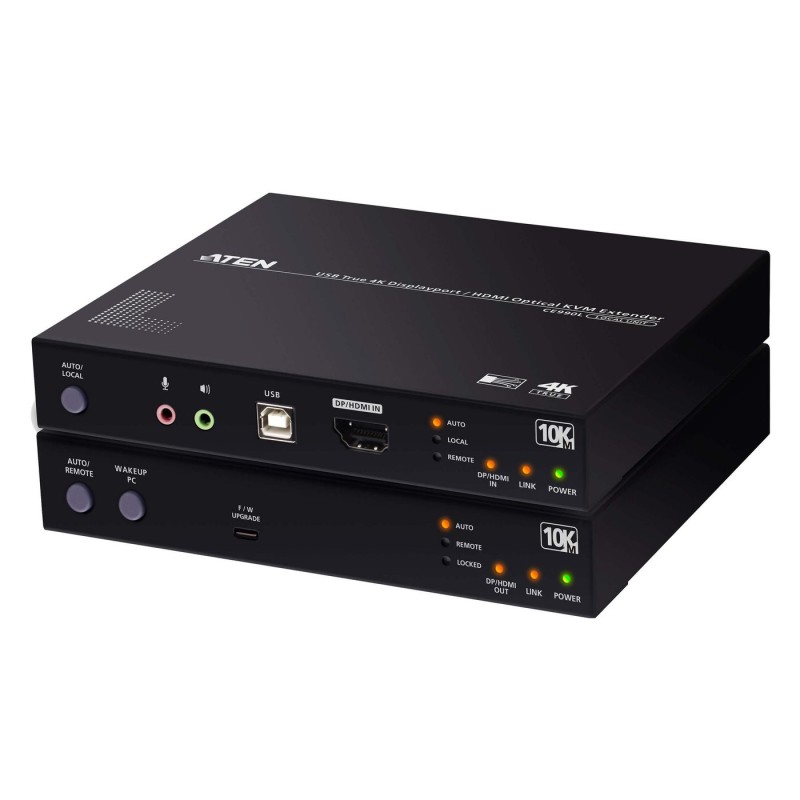

CE990-AT-G

The CE990 is a USB DisplayPort/HDMI Optical KVM Extender that extends KVM signals over fiber-optic transmission up to 10 km, delivering True 4K, HDCP 2.3-compliant video quality. It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles. In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fiber optic connection. The CE990 is ideal for critical control environments such as transportation, manufacturing, utilities, and more.

2-in-1 DisplayPort/HDMI Combo Connector
Featuring a combo connector, the CE990 supports connection to either a DisplayPort or HDMI display for both local and remote KVM installations. This versatile design supports flexible display configurations at each end, allowing mixed or matched output types between the local and remote consoles.

Pristine True 4K Clarity with HDR10
Experience unparalleled True 4K clarity (3840 x 2160 and 4096 x 2160 @60 Hz, 4:4:4) and HDR10 support, delivering optimal image accuracy, enhanced contrast, and rich colors for razor-sharp video content.

Reliable Fiber Optic KVM Extension over Long Distances
Deploying the CE990 enables long-distance KVM extension of up to 10 kilometers via a fiber optic connection, ensuring stable, interference-free transmission with inherent EMI resistance for reliable performance

Dual Console Access with Privileged Control
The CE990 enables KVM access to a computer from both local and remote consoles, facilitating efficient operational collaboration. Using the Auto/Local or Auto/Remote pushbutton, you can toggle between Auto mode (access from both consoles) and Local/Remote mode (exclusive access from either local or remote console), determining which console has privileged control over the computer.

Applications
Designed for critical control environments such as transportation, manufacturing, and utilities, the CE990 delivers stable long-distance KVM signal transmission and pristine video quality.

ATEN CE990. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 393700.8" (10000 m). Transmitter video port type: DisplayPort, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: DisplayPort, Receiver local keyboard/mouse port type: USB. USB data transfer rates: 480 Mbit/s. AC adapter output voltage: 12 DC, Power consumption (transmitter) (max): 11.89 W, Power consumption (receiver) (max): 9.49 W

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	393700.8" (10000 m)
Rack mounting	Yes
Maximum digital resolution	4096 x 2160 pixels
Product color	Black
Material	Metal
LED indicators	Yes
Transmitter video port type	DisplayPort
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
USB 2.0 ports quantity	4
USB data transfer rates	480 Mbit/s
PC Audio in	Yes
PC Audio out	Yes
AC adapter output voltage	12 DC
Power consumption (transmitter) (max)	11.89 W
Power consumption (receiver) (max)	9.49 W
Transmitter width	6.14" (15.6 cm)
Transmitter depth	7.01" (17.8 cm)
Transmitter height	1.13" (2.88 cm)
Transmitter weight	30 oz (850 g)
Receiver width	6.14" (15.6 cm)
Receiver depth	7.01" (17.8 cm)
Receiver height	1.13" (2.88 cm)
Receiver weight	29.6 oz (840 g)
Package width	5.16" (131 mm)
Package depth	21.3" (540 mm)
Package height	9.17" (233 mm)
Package weight	7.85 lbs (3.56 kg)
AC adapter included	Yes
Cables included	DisplayPort
Manual	Yes
Mounting bracket(s) included	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Country of origin	Taiwan
Master (outer) case width	9.72" (247 mm)
Master (outer) case length	21.9" (556 mm)
Master (outer) case height	6.02" (153 mm)
Master (outer) case weight	9.11 lbs (4.13 kg)
