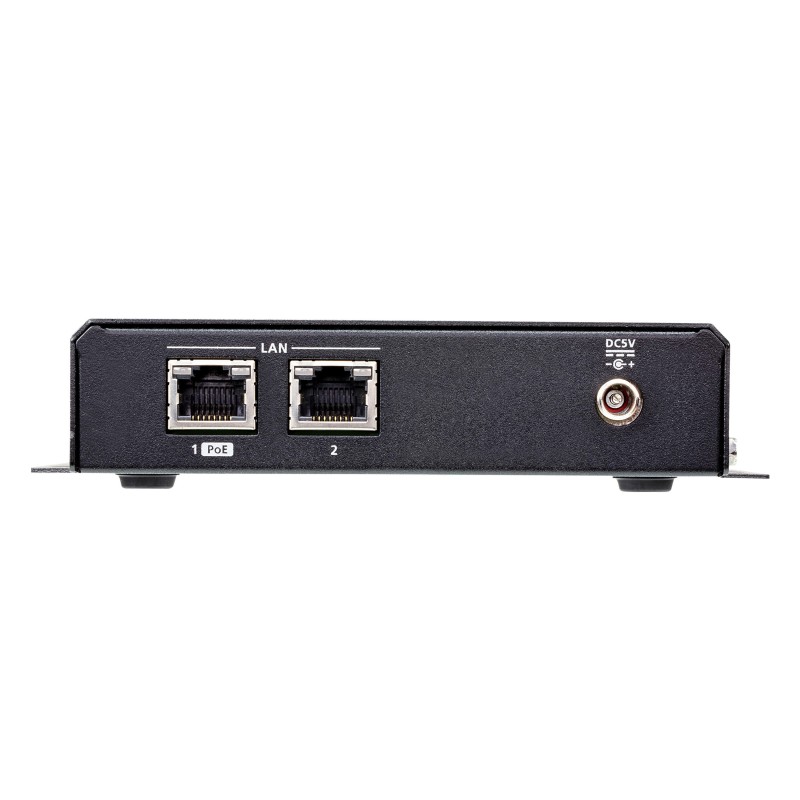

VE8952R-AT-G

The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.

No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.

No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.

Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.

Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.

Flexible Control with Mobile App
Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : http://assets.aten.com/product/manual/VE89_Implementation_Guide.pdf
1x VE8952R 4K HDMI over IP Receiver with PoE
1x JCNA-17A6-208G RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions

ATEN VE8952R-AT-G. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, USB connector type: USB Type-A. Width: 4.92" (124.9 mm), Depth: 6.54" (166 mm), Height: 1.14" (29 mm). Quantity per pack: 1 pc(s), Package width: 2.44" (62 mm), Package depth: 11.1" (283 mm). Master (outer) case width: 11.8" (300 mm), Master (outer) case length: 13.2" (336 mm), Master (outer) case height: 7.64" (194 mm)

Type	AV receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	3937" (100 m)
Maximum refresh rate	60 Hz
Front panel control (RX)	Yes
Extended display identification data (EDID)	Yes
LED indicators	Yes
HDCP	Yes
Rack mounting	Yes
Impedance	100 Ω
Daisy chain	Yes
Product color	Black
Connectivity technology	Wired
RJ-45 input ports	2
Number of HDMI outputs	1
USB ports quantity	2
USB connector type	USB Type-A
RS-232 output ports	1
Audio output	1
Remote (IR) output	1
DC-in jack	Yes
External power adapter	Yes
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Width	4.92" (124.9 mm)
Depth	6.54" (166 mm)
Height	1.14" (29 mm)
Weight	25.7 oz (730 g)
Quantity per pack	1 pc(s)
Package width	2.44" (62 mm)
Package depth	11.1" (283 mm)
Package height	6.81" (173 mm)
Package weight	34.4 oz (975 g)
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	13.2" (336 mm)
Master (outer) case height	7.64" (194 mm)
Master (outer) case weight	11.6 lbs (5.28 kg)
Master (outer) case net weight	8.05 lbs (3.65 kg)
Quantity per master (outer) case	5 pc(s)
