CHF394.2
tax incl.
CHF364.7
tax excl.
In stock
CHF168.5
tax incl.
CHF155.9
tax excl.
In stock
Description

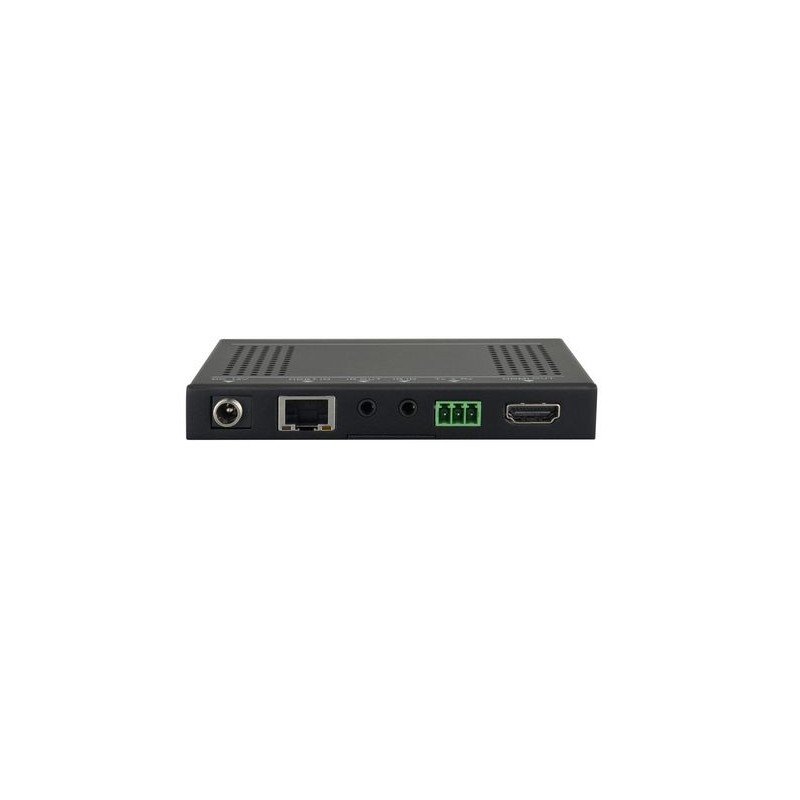

Transmitter/Receiver HDMI 2.0 18Gbps,Bi-directional IR, RS232 and CEC, one PSU, HDMI 1.4 and HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
Key features:
Full HDMI 2.0 compliant
18 Gbps bandwidth
Slim 4K HDBT extender.
Two way POC
Support Bi-directional IR and RS232
HDCP2.2 compliant
Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.
Function:
HDMI 2.0 extender
Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4
Key features:
Full HDMI 2.0 compliant
18 Gbps bandwidth
Slim 4K HDBT extender.
Two way POC
Support Bi-directional IR and RS232
HDCP2.2 compliant
- Full HDMI 2.0 compliant
- 18 Gbps bandwidth
- Slim 4K HDBT extender
- Two way PoC
- Support Bi-directional IR and RS232
- HDCP2.2 compliant
Specifications
Features
| Bandwidth | 18 Gbit/s |
| Cable types supported | Cat5e/Cat6 |
| CEC pass-through | Yes |
| HDBaseT certified | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 4096x2160 pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Remote control type | IR + RS232 |
| RS-232 pass-through | Yes |
| Supported video modes | 3840p |
| Type | AV transmitter & receiver |
| Wall mountable | Yes |
Operational conditions
| Operating temperature (T-T) | -10 - 50 °C |
Packaging content
| AC adapter included | Yes |
| Included power plug types | EU/GB |
| IR blaster included | No |
| IR receiver included | No |
| Mounting brackets included | Yes |
Ports & interfaces
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 1 |
| HDMI version | 2.0 |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Video in | 1 |
| Video out | 1 |
Power
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | Yes |
| Power consumption (receiver) (max) | 14 W |
| Power consumption (transmitter) (max) | 14 W |
| Power over Ethernet (PoE) | No |
Technical details
| Audio support | Yes |
Vendor information
| Brand Name | Vivolink |
| Warranty | 5 |
Product Details
50 Items
New
Data sheet
- Number of HDMI outputs
- 1
- Remote control type
- IR + RS232
- IR blaster included
- No
- an der Wand montierbar
- Yes
- Stromversorgung über Ethernet (PoE)
- No
- Fernbedienungseingang (IR)
- 1
- Inklusive Netzteil
- Yes
- DC-Eingangsbuchse
- Yes
- External power supply
- Yes
- LED-Anzeigen
- Yes
- Anzahl der seriellen Anschlüsse
- 1
- Typ der seriellen Schnittstelle
- RS-232
- Konnektivitätstechnologie
- Wired
- AC-Eingangsfrequenz
- 50 / 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Maximum Auflösung
- 4096x2160 Pixel
- Unterstützte Videomodi
- 3840p
- Bandbreite
- 18 Gbit/s
- Maximum Übertragungsentfernung
- 70 m
- Enthaltene Netzsteckertypen
- EU/GB
- HDMI-Version
- 2.0
- Typ
- AV transmitter & receiver
- Brand Name
- Vivolink
- Warranty
- 5
- Betriebstemperatur (TT)
- -10 - 50 °C
- Produktfarbe
- Black
- Montagehalterungen enthalten
- Yes
- RJ-45-Ausgangsports
- 1
- RJ-45-Eingangsports
- 1
- Unterstützte Kabeltypen
- Cat5e/Cat6
- CEC-Pass-Through
- Yes
- HDBaseT-zertifiziert
- Yes
- HDCP- und EDID-Bypass
- Yes
- HDCP-Pass-Through
- Yes
- IR-Durchgang
- Yes
- IR-Empfänger enthalten
- No
- HDMI-Eingang
- 1
- Remote-Ausgang (IR).
- 1
- Video aus
- 1
- Video ein
- 1
- Leistungsaufnahme (Empfänger) (max.)
- 14 W
- Leistungsaufnahme (Sender) (max)
- 14 W
- Audiounterstützung
- Yes
- RS-232-Pass-Through
- Yes
- 3,5 mm (1/8 Zoll) heraus
- Yes
- 3,5 mm (1/8 Zoll) Zoll
- Yes
- RS-232-Ausgangsports
- 1
- RS-232-Eingangsports
- 1
Specific References
- EAN13
- 5711783930204
- MPN
- VLHDMIEXTHDB2.0
