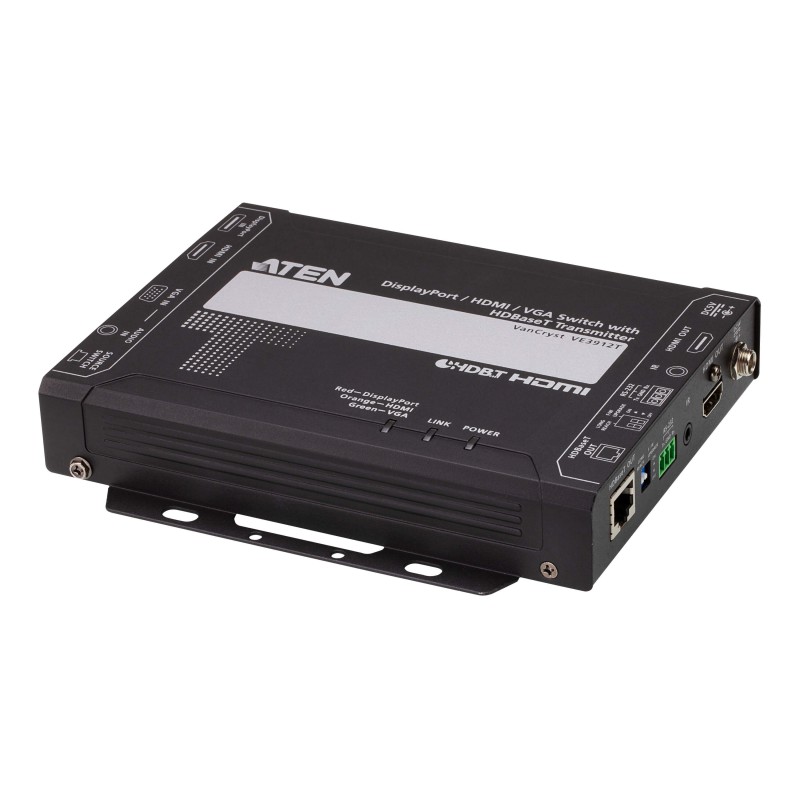

VE3912T-AT-G
ATEN VE3912T-AT-G, 4096 x 2160 pixels, AV transmitter, 3937" (100 m), Wired, Black, HDCP
Description
The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/analog sources conversion and extension.
1x VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
1x RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions
ATEN VE3912T-AT-G. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, Video in: 1 x HDMI Type A, Video out: 1 x HDMI Type A. Power consumption (max): 8.77 W. Width: 5.79" (147 mm), Depth: 6.81" (173 mm), Height: 1.18" (30 mm). Package width: 2.44" (62 mm), Package depth: 11.1" (283 mm), Package height: 6.81" (173 mm)
1x VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
1x RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions
ATEN VE3912T-AT-G. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, Video in: 1 x HDMI Type A, Video out: 1 x HDMI Type A. Power consumption (max): 8.77 W. Width: 5.79" (147 mm), Depth: 6.81" (173 mm), Height: 1.18" (30 mm). Package width: 2.44" (62 mm), Package depth: 11.1" (283 mm), Package height: 6.81" (173 mm)
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 3937" (100 m) |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Power | 8.77 W |
| On/off switch | Yes |
| HDCP | Yes |
| Material | Metal |
| Control type | Buttons |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Product color | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DisplayPorts in | 1 |
| RS-232 output ports | 1 |
| Video in | 1 x HDMI Type A |
| Video out | 1 x HDMI Type A |
| VGA (D-Sub) ports quantity | 2 |
| Audio input | 1 x HDMI Type A |
| AUX in | Yes |
| DC-in jack | Yes |
| Power consumption (max) | 8.77 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 5.79" (147 mm) |
| Depth | 6.81" (173 mm) |
| Height | 1.18" (30 mm) |
| Weight | 2.29 lbs (1.04 kg) |
| Package width | 2.44" (62 mm) |
| Package depth | 11.1" (283 mm) |
| Package height | 6.81" (173 mm) |
| Package weight | 2.47 lbs (1.12 kg) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Compliance certificates | RoHS |
| Master (outer) case width | 11.8" (300 mm) |
| Master (outer) case length | 13.2" (336 mm) |
| Master (outer) case height | 7.64" (194 mm) |
| Master (outer) case weight | 12.3 lbs (5.59 kg) |
| Master (outer) case net weight | 11.5 lbs (5.2 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
4 Items
New
Data sheet
- Type
- AV transmitter
- Product color
- Black
- Connectivity technology
- Wired
- VGA (D-Sub) ports quantity
- 2
- Ethernet LAN
- Yes
- Weight
- 2.29 lbs (1.04 kg)
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 5.79" (147 mm)
- Height
- 1.18" (30 mm)
- Depth
- 6.81" (173 mm)
- Package weight
- 2.47 lbs (1.12 kg)
- Material
- Metal
- Master (outer) case width
- 11.8" (300 mm)
- Master (outer) case length
- 13.2" (336 mm)
- Master (outer) case height
- 7.64" (194 mm)
- Master (outer) case weight
- 12.3 lbs (5.59 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 2.44" (62 mm)
- Package depth
- 11.1" (283 mm)
- Package height
- 6.81" (173 mm)
- DC-in jack
- Yes
- On/off switch
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Control type
- Buttons
- Impedance
- 100 Ω
- Quick start guide
- Yes
- Compliance certificates
- RoHS
- HDCP
- Yes
- Power consumption (max)
- 8.77 W
- Supported graphics resolutions
- 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
- Audio input
- 1 x HDMI Type A
- Supported video modes
- 1080p, 2160p
- Maximum transfer distance
- 3937" (100 m)
- Mounting brackets included
- Yes
- Master (outer) case net weight
- 11.5 lbs (5.2 kg)
- HDCP version
- 2.2
- External power adapter
- Yes
- Bandwidth
- 10.2 Gbit/s
- AUX in
- Yes
- RJ-45 input ports
- 1
- VGA (D-Sub) input ports
- 1
- Number of HDMI outputs
- 1
- HDMI in
- 1
- Consumer Electronics Control (CEC) support
- Yes
- DisplayPorts in
- 1
- Video out
- 1 x HDMI Type A
- Video in
- 1 x HDMI Type A
- Power
- 8.77 W
- RS-232 output ports
- 1
Specific References
- EAN13
- 4719264649851
- MPN
- VE3912T-AT-G
