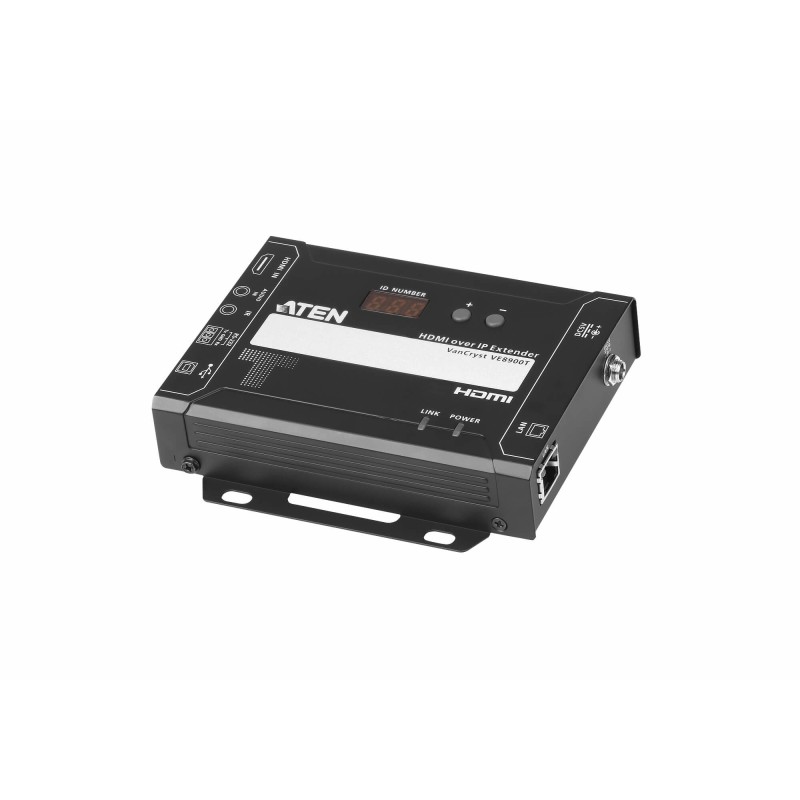

VE8900T-AT-G

Data sheet

Type

AV transmitter

Product color

Black

Quantity per pack

1 pc(s)

Connectivity technology

Wired

Weight

22.6 oz (640 g)

Maximum resolution

1920 x 1080 pixels

Width

5.35" (136 mm)

Height

1.17" (29.6 mm)

Depth

3.98" (101 mm)

Package weight

27.3 oz (774 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

10 lbs (4.55 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

USB connector type

USB Type-B

DC-in jack

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Impedance

100 Ω

USB ports quantity

1

Manual

Yes

Maximum refresh rate

60 Hz

Supported video modes

1080p

Maximum transfer distance

3937" (100 m)

Master (outer) case net weight

7.05 lbs (3.2 kg)

Cable types supported

Cat5e, Cat6

Extended display identification data (EDID)

Yes

RJ-45 input ports

1

HDMI in

1

Operating voltage (transmitter)

5 V

Power consumption (TX)

3.07 W

Specific References

EAN13

4719264645655

MPN

VE8900T-AT-G
