VE803-AT-G

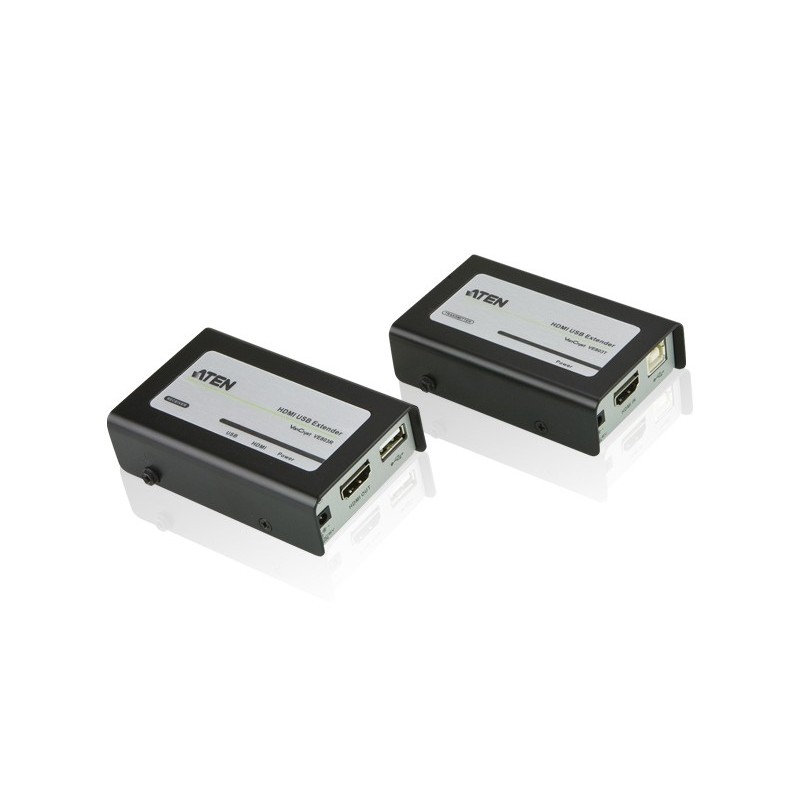

ATEN VE803-AT-G, 1920 x 1200 pixels, AV transmitter & receiver, 2362.2" (60 m), Wired, 3D, HDCP
Description
The VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters.
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
ATEN VE803-AT-G. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (TX): 1.04 W. Weight: 17.5 oz (495 g), Receiver dimensions (WxDxH): 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm), Receiver weight: 5.64 oz (160 g). Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm), Package height: 6.3" (160 mm)
The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control, allowing you to control the local HDMI source device from the remote display, or control the remote display through the local unit.
1x VE803T HDMI USB Extender
1x VE803R HDMI USB Extender
1x 0AD6-1705-10EG Power Adapter
1x USB Cable (1.8 m)
1x Mounting Kit
1x User Instructions
ATEN VE803-AT-G. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Cable types supported: Cat5e. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (TX): 1.04 W. Weight: 17.5 oz (495 g), Receiver dimensions (WxDxH): 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm), Receiver weight: 5.64 oz (160 g). Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm), Package height: 6.3" (160 mm)
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 2362.2" (60 m) |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Product color | Black |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (TX) | 1.04 W |
| Power consumption (RX) | 0.75 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight | 17.5 oz (495 g) |
| Receiver dimensions (WxDxH) | 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm) |
| Receiver weight | 5.64 oz (160 g) |
| Transmitter dimensions (WxDxH) | 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm) |
| Transmitter weight | 5.64 oz (160 g) |
| Package width | 2.32" (59 mm) |
| Package depth | 9.41" (239 mm) |
| Package height | 6.3" (160 mm) |
| Package weight | 23 oz (652 g) |
| AC adapter included | Yes |
| Cables included | USB |
| Manual | Yes |
| Mounting kit | Yes |
| Master (outer) case width | 12.4" (315 mm) |
| Master (outer) case length | 19.3" (490 mm) |
| Master (outer) case height | 13.3" (338 mm) |
| Master (outer) case weight | 29.8 lbs (13.5 kg) |
| Master (outer) case net weight | 21.8 lbs (9.9 kg) |
| Quantity per master (outer) case | 20 pc(s) |
Product Details
41 Items
New
Data sheet
- Type
- AV transmitter & receiver
- Product color
- Black
- Connectivity technology
- Wired
- Weight
- 17.5 oz (495 g)
- Maximum resolution
- 1920 x 1200 pixels
- Package weight
- 23 oz (652 g)
- Material
- Metal
- Master (outer) case width
- 12.4" (315 mm)
- Master (outer) case length
- 19.3" (490 mm)
- Master (outer) case height
- 13.3" (338 mm)
- Master (outer) case weight
- 29.8 lbs (13.5 kg)
- Quantity per master (outer) case
- 20 pc(s)
- Package width
- 2.32" (59 mm)
- Package depth
- 9.41" (239 mm)
- Package height
- 6.3" (160 mm)
- USB connector type
- USB Type-A, USB Type-B
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Storage relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- USB
- 3D
- Yes
- Manual
- Yes
- Receiver dimensions (WxDxH)
- 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm)
- Receiver weight
- 5.64 oz (160 g)
- Mounting kit
- Yes
- HDCP
- Yes
- Supported graphics resolutions
- 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes
- 1080i, 1080p
- Maximum transfer distance
- 2362.2" (60 m)
- Master (outer) case net weight
- 21.8 lbs (9.9 kg)
- Cable types supported
- Cat5e
- Bandwidth
- 6.75 Gbit/s
- Extended display identification data (EDID)
- Yes
- Transmitter weight
- 5.64 oz (160 g)
- Transmitter dimensions (WxDxH)
- 3.54 x 2.26 x 0.945" (90 x 57.4 x 24 mm)
- Number of HDMI outputs
- 1
- HDMI in
- 1
- Operating voltage (transmitter)
- 5 V
- Electrostatic Discharge (ESD) protection
- Yes
15 kV - Operating voltage (receiver)
- 5 V
- Power consumption (TX)
- 1.04 W
- Power consumption (RX)
- 0.75 W
Specific References
- EAN13
- 5057103064977
- MPN
- VE803-AT-G
