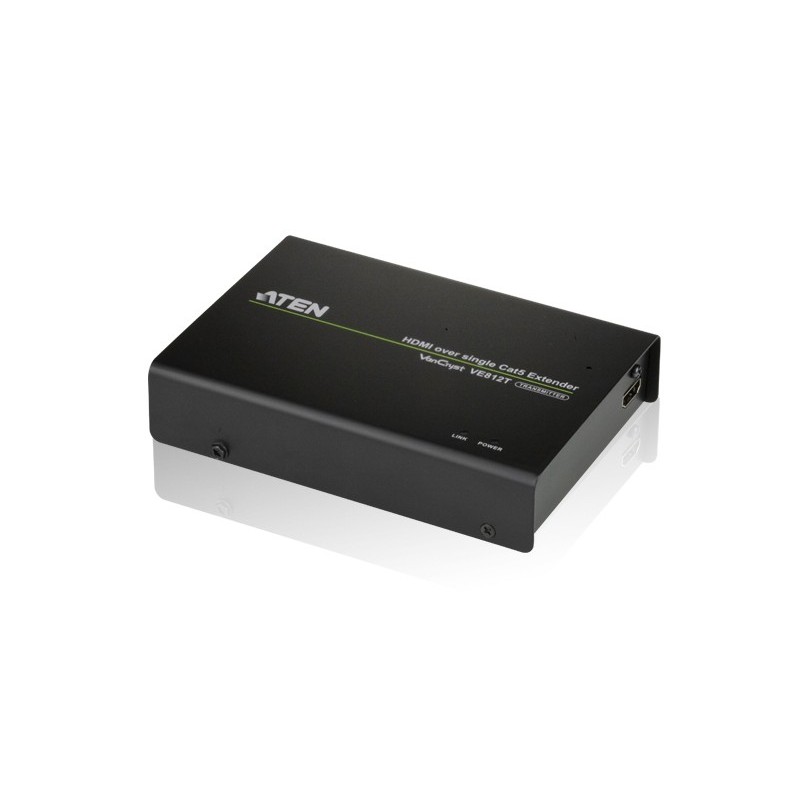

VE812T-AT-G

Data sheet

Type

AV transmitter & receiver

Product color

Black

Connectivity technology

Wired

Ethernet LAN

Yes

Weight

21.9 oz (620 g)

Operating voltage

5.3 V

Maximum resolution

4096 x 2160 pixels

Width

4.06" (103 mm)

Height

1.18" (30 mm)

Depth

5.58" (141.7 mm)

Package weight

27.2 oz (770 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

9.26 lbs (4.2 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Cables included

LAN (RJ-45)

3D

Yes

Manual

Yes

Power consumption (typical)

1.8 W

Mounting kit

Yes

Compliance certificates

RoHS

HDCP

Yes

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Supported video modes

1080p

Maximum transfer distance

3937" (100 m)

Master (outer) case net weight

6.83 lbs (3.1 kg)

HDCP version

2.2

Cable types supported

Cat5e, Cat6, Cat6a

Bandwidth

10.2 Gbit/s

RJ-45 output ports

1

HDMI in

1

Video in

HDMI

Specific References

EAN13

4719264640278

MPN

VE812T-AT-G
