Description

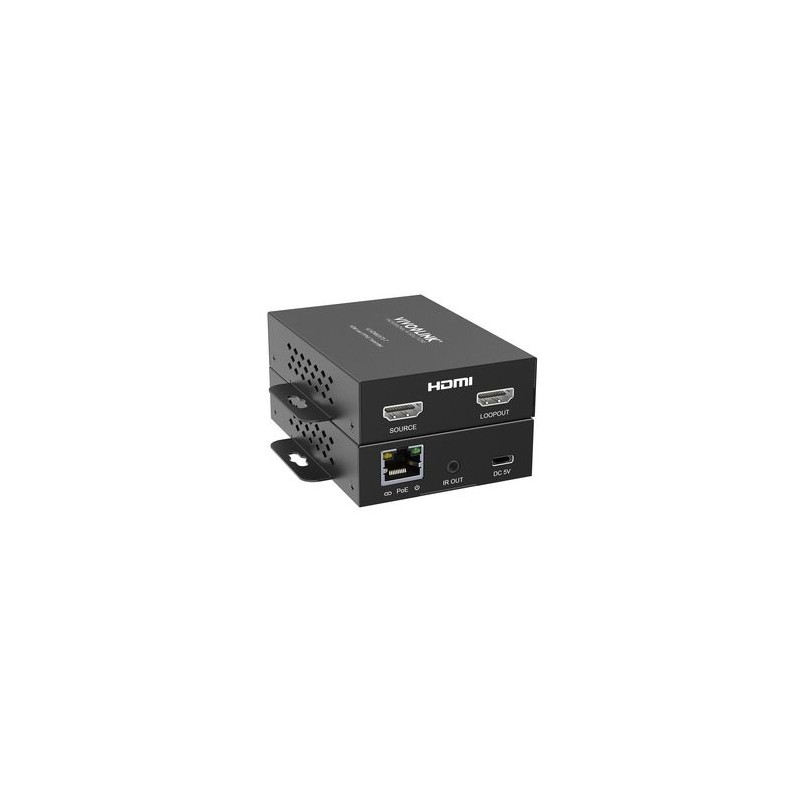

Transmitter unit with IR transmitter Max resolution 1080P@60hz
VLHDMIEXT3-T is transmitter for VLHDMIEXT3-R
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 150m 1080P@60Hz
Signal can be splitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
VLHDMIEXT3-T is transmitter for VLHDMIEXT3-R
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 150m 1080P@60Hz
Signal can be splitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
- Power can be PoE or with using the included USB-C to A cable
- Supports Full HD resolution 1080P@60 Hz
- Maximum transmission distance 150m
- Supports IR control (IR receiver and transmitter included)
- Signal can be splitted with a GBit Switch to several receivers
Specifications
Features
| Cable length | 150 m |
| Cable types supported | Cat6 |
| HDCP | Yes |
| HDCP & EDID bypass | Yes |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| IR pass-through | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920x1080p pixels |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Remote control type | IR |
| Supported video modes | 1080p |
| Type | AV transmitter |
| Video compression formats | H.264 |
| Wall mountable | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 60 °C |
Packaging content
| AC adapter included | Yes |
| Included power plug types | EU |
| IR blaster included | No |
| IR receiver included | Yes |
Ports & interfaces
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI in | 1 |
| HDMI version | 1.3a |
| Number of HDMI outputs | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 output ports | 1 |
| Video in | 1 |
| Video out | 1 |
Power
| AC input frequency | 50 / 60 Hz |
| AC input voltage | 100 - 240 V |
| External power adapter | No |
| Power consumption (typical) | 3.5 W |
Technical details
| Audio support | Yes |
Vendor information
| Brand Name | Vivolink |
| Warranty | 5 |
Product Details
100 Items
New
Data sheet
- HDCP
- Yes
- Number of HDMI outputs
- 1
- Remote control type
- IR
- IR blaster included
- No
- an der Wand montierbar
- Yes
- Fernbedienungseingang (IR)
- 1
- Inklusive Netzteil
- Yes
- DC-Eingangsbuchse
- Yes
- External power supply
- No
- LED-Anzeigen
- Yes
- Ethernet-LAN
- Yes
- Konnektivitätstechnologie
- Wired
- AC-Eingangsfrequenz
- 50 / 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 3.5 W
- Maximum Auflösung
- 1920x1080p Pixel
- Unterstützte Videomodi
- 1080p
- Videokomprimierungsformate
- H.264
- Maximum Übertragungsentfernung
- 150 m
- Enthaltene Netzsteckertypen
- EU
- HDMI-Version
- 1.3a
- Kabellänge
- 150 m
- HDCP-Version
- 1.4
- Typ
- AV transmitter
- Brand Name
- Vivolink
- Warranty
- 5
- Betriebstemperatur (TT)
- 0 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Produktfarbe
- Black
- RJ-45-Ausgangsports
- 1
- Unterstützte Kabeltypen
- Cat6
- HDCP- und EDID-Bypass
- Yes
- HDCP-Pass-Through
- Yes
- IR-Durchgang
- Yes
- IR-Empfänger enthalten
- Yes
- HDMI-Eingang
- 1
- Remote-Ausgang (IR).
- 1
- Video aus
- 1
- Video ein
- 1
- Audiounterstützung
- Yes
- 3,5 mm (1/8 Zoll) heraus
- Yes
- 3,5 mm (1/8 Zoll) Zoll
- Yes
Specific References
- EAN13
- 5715328119727
- MPN
- VLHDMIEXT3-T
