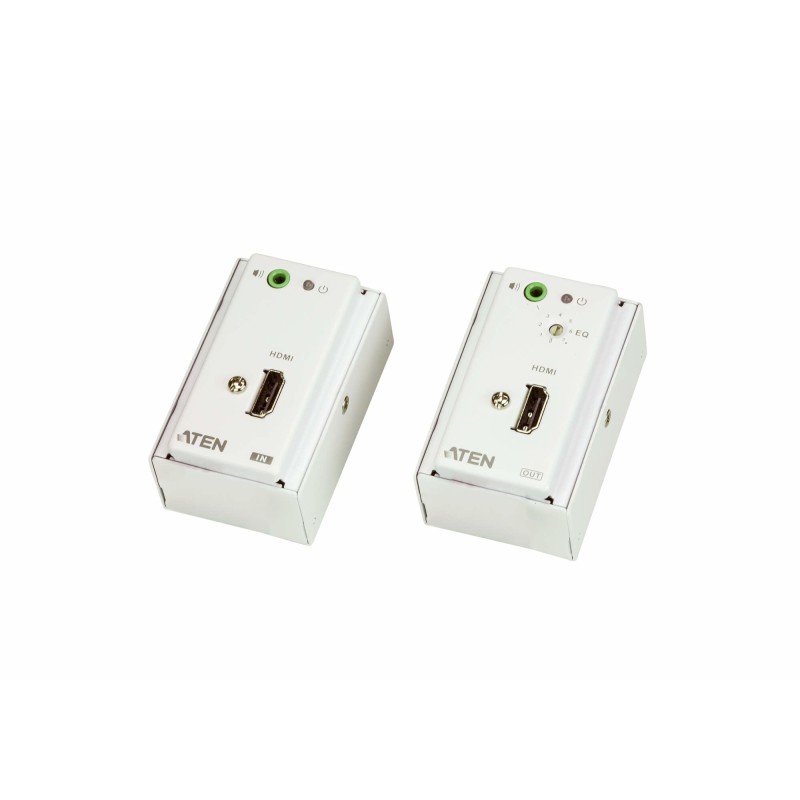

VE807-AT-G

Data sheet

Type

AV transmitter & receiver

Product color

White

Quantity per pack

2 pc(s)

Connectivity technology

Wired

Weight

17.6 oz (500 g)

Maximum resolution

1920 x 1200 pixels

Plug and Play

Yes

Package weight

21.5 oz (610 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

7.52 lbs (3.41 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Audio system

stereo

3D

Yes

Impedance

100 Ω

Manual

Yes

Receiver dimensions (WxDxH)

1.75 x 2.7 x 1.57" (44.4 x 68.6 x 40 mm)

Receiver weight

6.35 oz (180 g)

Compliance certificates

RoHS

HDCP

Yes

Audio input

1

Supported video modes

1080i, 1080p

Maximum transfer distance

2362.2" (60 m)

Master (outer) case net weight

5.51 lbs (2.5 kg)

Cable types supported

Cat5e, Cat6

External power adapter

Yes

Bandwidth

6.75 Gbit/s

Transmitter weight

6.35 oz (180 g)

Power consumption (transmitter) (max)

1.35 W

RJ-45 input ports

2

RJ-45 output ports

2

Audio output

1

Power consumption (receiver) (max)

0.81 W

Transmitter dimensions (WxDxH)

1.75 x 2.7 x 1.57" (44.4 x 68.6 x 40 mm)

Number of HDMI outputs

1

HDMI in

1

Video out

1

Video in

1

Operating voltage (transmitter)

9 V

Electrostatic Discharge (ESD) protection

15 kV

Operating voltage (receiver)

9 V

Specific References

EAN13

4719264645716

MPN

VE807-AT-G
