Description

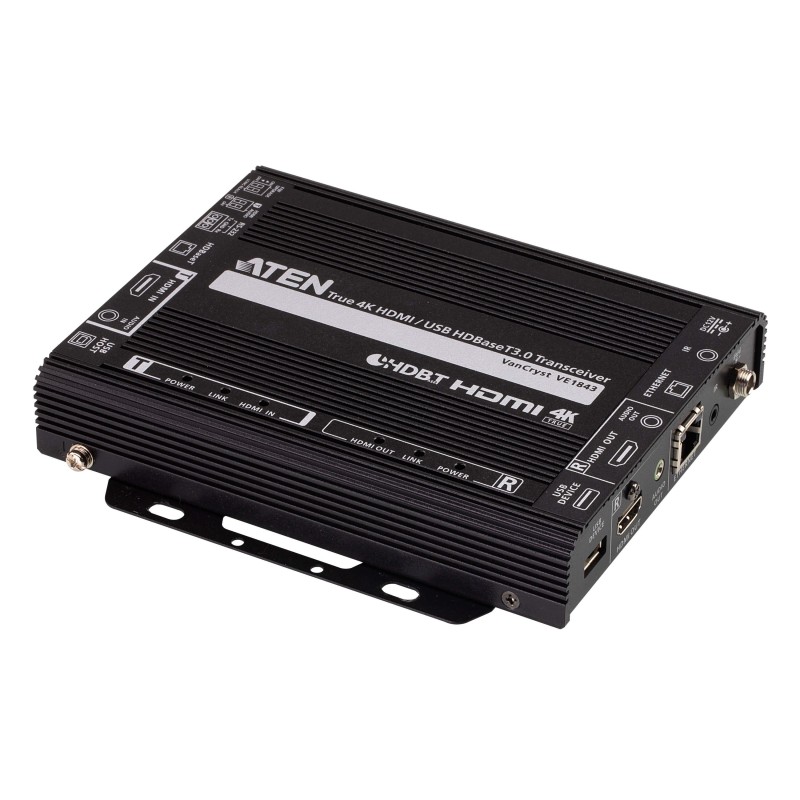

As ATEN ’s first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.
One Unit, Two Configurations
VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.
Uncompressed True 4K HDMI with HDR @100m
Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A cable with no latency, VE1843 offers superior video quality even when output devices are located far away.
One Cable to Transmit It All
Streamline complex installation and enjoy multi-signal control by using a Cat 6A cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management.
HDMI Audio Embedding & De-embedding
VE1843 comes with HDMI audio embedding / de-embedding functions, enabling users to easily embed a separate audio source to video content for applications such as training and education, or de-embed an audio signal from HDMI input source and output to an amplifier or speaker for enhanced sound quality.
Tailored Fanless Fin Heat Sink Enclosure
VE1843 prevents overheating and fan malfunctions, which will shut down operation, ensuring efficient thermal dissipation and non-stop signal transmission, while improving durability.
User-Focused Design in Every Detail
The design of VE1843 elevates its ease-of-use, including the self-explanatory labeling for intuitive port recognition, the built-in brackets for easy mounting, the LED lights for quick diagnosis, and a dedicated space on the front for writing labels to help device recognition / management.
Applications
VE1843 is ideal for small / mid-sized video presentation in conference rooms, public areas, and other applications where high-quality signal transmission across up to 100m/328ft is needed.
ATEN VE1843. Type: AV repeater, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, Serial interface type: RS-232. Width: 5.94" (150.9 mm), Depth: 6.75" (171.5 mm), Height: 1.18" (30 mm). Package width: 3.74" (95 mm), Package depth: 10.4" (265 mm), Package height: 8.66" (220 mm). Cables included: USB
One Unit, Two Configurations
VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.
Uncompressed True 4K HDMI with HDR @100m
Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A cable with no latency, VE1843 offers superior video quality even when output devices are located far away.
One Cable to Transmit It All
Streamline complex installation and enjoy multi-signal control by using a Cat 6A cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management.
HDMI Audio Embedding & De-embedding
VE1843 comes with HDMI audio embedding / de-embedding functions, enabling users to easily embed a separate audio source to video content for applications such as training and education, or de-embed an audio signal from HDMI input source and output to an amplifier or speaker for enhanced sound quality.
Tailored Fanless Fin Heat Sink Enclosure
VE1843 prevents overheating and fan malfunctions, which will shut down operation, ensuring efficient thermal dissipation and non-stop signal transmission, while improving durability.
User-Focused Design in Every Detail
The design of VE1843 elevates its ease-of-use, including the self-explanatory labeling for intuitive port recognition, the built-in brackets for easy mounting, the LED lights for quick diagnosis, and a dedicated space on the front for writing labels to help device recognition / management.
Applications
VE1843 is ideal for small / mid-sized video presentation in conference rooms, public areas, and other applications where high-quality signal transmission across up to 100m/328ft is needed.
ATEN VE1843. Type: AV repeater, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B, Serial interface type: RS-232. Width: 5.94" (150.9 mm), Depth: 6.75" (171.5 mm), Height: 1.18" (30 mm). Package width: 3.74" (95 mm), Package depth: 10.4" (265 mm), Package height: 8.66" (220 mm). Cables included: USB
| Type | AV repeater |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 3937" (100 m) |
| Maximum refresh rate | 240 Hz |
| Front panel control (RX) | Yes |
| Front panel control (TX) | Yes |
| Infrared (IR) frequency range | 30 - 56 kHz |
| LED indicators | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Impedance | 100 Ω |
| Rubber feet | Yes |
| HDCP version | 2.2 |
| Product color | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| Audio input | 1 |
| Audio output | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 5.94" (150.9 mm) |
| Depth | 6.75" (171.5 mm) |
| Height | 1.18" (30 mm) |
| Weight | 22.6 oz (640 g) |
| Package width | 3.74" (95 mm) |
| Package depth | 10.4" (265 mm) |
| Package height | 8.66" (220 mm) |
| Package weight | 3.09 lbs (1.4 kg) |
| AC adapter included | Yes |
| Cables included | USB |
| IR emitter included | Yes |
| Manual | Yes |
| IR receiver included | Yes |
| Country of origin | Taiwan |
| Package volume | 5663.37 cm³ |
| Master (outer) case width | 9.13" (232 mm) |
| Master (outer) case length | 19.7" (500 mm) |
| Master (outer) case height | 11.1" (283 mm) |
| Master (outer) case weight | 16.6 lbs (7.55 kg) |
| Master (outer) case volume | 32847.54 cm³ |
| Master (outer) case net weight | 12.9 lbs (5.87 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
4 Items
New
Data sheet
- Type
- AV repeater
- Product color
- Black
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- Weight
- 22.6 oz (640 g)
- Serial ports quantity
- 1
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 5.94" (150.9 mm)
- Height
- 1.18" (30 mm)
- Country of origin
- Taiwan
- Depth
- 6.75" (171.5 mm)
- Package weight
- 3.09 lbs (1.4 kg)
- Material
- Metal
- Master (outer) case width
- 9.13" (232 mm)
- Master (outer) case length
- 19.7" (500 mm)
- Master (outer) case height
- 11.1" (283 mm)
- Master (outer) case weight
- 16.6 lbs (7.55 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 3.74" (95 mm)
- Package depth
- 10.4" (265 mm)
- Package height
- 8.66" (220 mm)
- LED indicators
- Yes
- USB connector type
- USB Type-A, USB Type-B
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- USB
- 3D
- Yes
- Impedance
- 100 Ω
- USB version
- 2.0
- USB ports quantity
- 2
- Manual
- Yes
- HDCP
- Yes
- Maximum refresh rate
- 240 Hz
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
- Audio input
- 1
- Maximum transfer distance
- 3937" (100 m)
- Master (outer) case net weight
- 12.9 lbs (5.87 kg)
- HDCP version
- 2.2
- Cable types supported
- Cat6a
- Package volume
- 5663.37 cm³
- Bandwidth
- 18 Gbit/s
- Master (outer) case volume
- 32847.54 cm³
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- Audio output
- 1
- IR receiver included
- Yes
- Serial interface type
- RS-232
- Rubber feet
- Yes
- Number of HDMI outputs
- 1
- HDMI in
- 1
- Remote (IR) input
- 1
- HDBaseT port
- Yes
- Front panel control (RX)
- Yes
- Front panel control (TX)
- Yes
- Infrared (IR) frequency range
- 30 - 56 kHz
- IR emitter included
- Yes
Specific References
- EAN13
- 4710469341267
- MPN
- VE1843-AT-G
