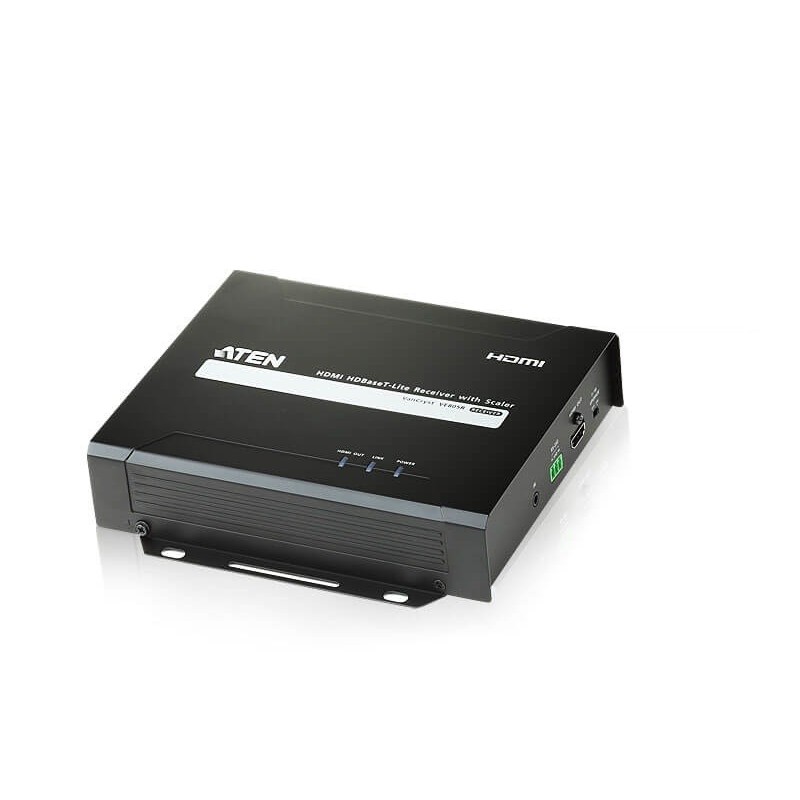

VE805R-AT-G

Data sheet

Type

AV receiver

Product color

Black

Weight

2.31 lbs (1.05 kg)

Operating voltage

5 V

Maximum resolution

1920 x 1080 pixels

Width

6.66" (169.2 mm)

Height

1.65" (42 mm)

Depth

6.98" (177.4 mm)

Package weight

2.73 lbs (1.24 kg)

Material

Metal

Master (outer) case width

13.5" (342 mm)

Master (outer) case length

20.2" (512 mm)

Master (outer) case height

9.13" (232 mm)

Master (outer) case weight

15.1 lbs (6.85 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.86" (98 mm)

Package depth

12.8" (325 mm)

Package height

8.27" (210 mm)

HDMI version

1.4

DC-in jack

Yes

On/off switch

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Impedance

100 Ω

Power consumption (typical)

9.5 W

HDCP

Yes

Supported video modes

1080p

Maximum transfer distance

2362.2" (60 m)

Wall mountable

Yes

Master (outer) case net weight

11.6 lbs (5.25 kg)

HDCP version

1.4

Cable types supported

Cat5e, Cat6, Cat6a

RJ-45 input ports

1

Number of HDMI outputs

1

Remote (IR) input

1

RS-232 input ports

1

Class

B

Specific References

EAN13

4719264642944

MPN

VE805R-AT-G
