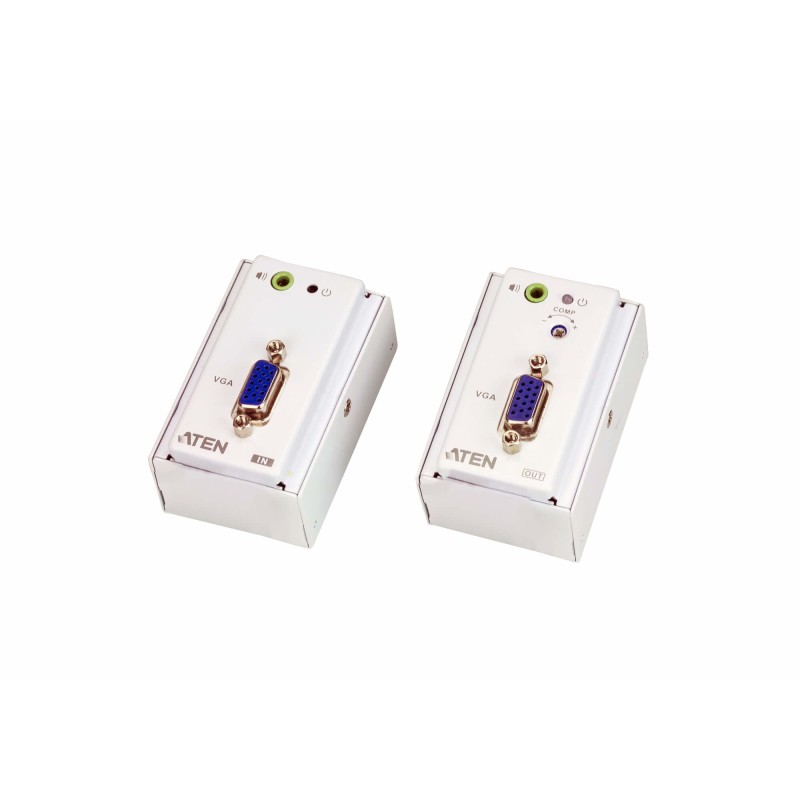

VE157-AT-G

Data sheet

Type

AV transmitter & receiver

Product color

White

Quantity per pack

2 pc(s)

Connectivity technology

Wired

VGA (D-Sub) ports quantity

2

Ethernet LAN

Yes

Weight

15.7 oz (445 g)

Maximum resolution

1920 x 1200 pixels

Plug and Play

Yes

Package weight

21.4 oz (606 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

7.61 lbs (3.45 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Audio system

stereo

Impedance

100 Ω

Quick start guide

Yes

Receiver dimensions (WxDxH)

1.75 x 2.7 x 1.69" (44.4 x 68.6 x 42.8 mm)

Receiver weight

6.35 oz (180 g)

Supported graphics resolutions

1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)

Audio input

1

Maximum transfer distance

5905.5" (150 m)

Master (outer) case net weight

4.92 lbs (2.23 kg)

Cable types supported

Cat5e, Cat6

External power adapter

Yes

Bandwidth

300 MHz

Transmitter weight

6.35 oz (180 g)

Power consumption (transmitter) (max)

1.65 W

RJ-45 input ports

1

RJ-45 output ports

1

VGA (D-Sub) input ports

1

Audio output

1

Power consumption (receiver) (max)

0.95 W

Transmitter dimensions (WxDxH)

1.75 x 2.7 x 1.69" (44.4 x 68.6 x 42.8 mm)

Video out

1

Video in

1

VGA (D-Sub) output ports

1

Operating voltage (transmitter)

9 V

Electrostatic Discharge (ESD) protection

Yes
15 kV

Operating voltage (receiver)

9 V

Resolution

1920 x 1200 pixels

Specific References

EAN13

4719264645693

MPN

VE157-AT-G
