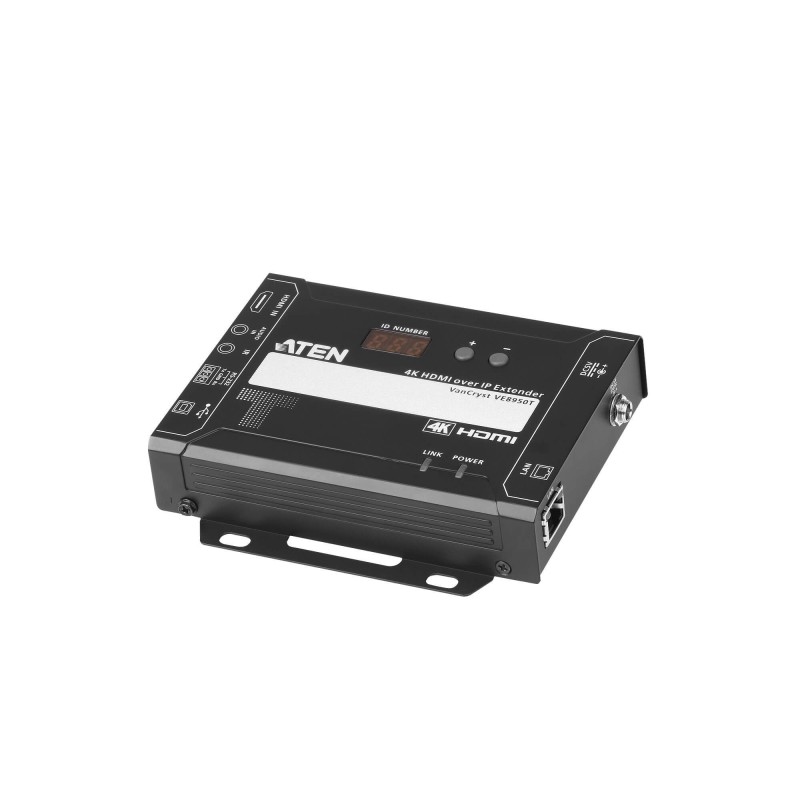

VE8950T-AT-G

Data sheet

Type

AV transmitter

Product color

Black

Quantity per pack

1 pc(s)

Connectivity technology

Wired

Weight

21.2 oz (600 g)

Maximum resolution

4096 x 2160 pixels

Width

5.35" (136 mm)

Height

1.17" (29.6 mm)

Depth

3.98" (101 mm)

Package weight

27.9 oz (790 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

9.33 lbs (4.23 kg)

Quantity per master (outer) case

5 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

USB connector type

USB Type-B

DC-in jack

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Control type

Buttons

Impedance

100 Ω

USB version

2.0

USB ports quantity

1

Manual

Yes

HDCP

Yes

Maximum refresh rate

60 Hz

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Audio input

1

Supported video modes

1080p

Maximum transfer distance

3937" (100 m)

Master (outer) case net weight

6.61 lbs (3 kg)

Cable types supported

Cat5e, Cat6

External power adapter

Yes

Extended display identification data (EDID)

Yes

RJ-45 output ports

1

Daisy chain

Yes

HDMI in

1

Remote (IR) input

1

Operating voltage (transmitter)

5 V

Power consumption (TX)

3.08 W

Baud rate

19.2 Kbit/s

Specific References

EAN13

4719264645679

MPN

VE8950T-AT-G
