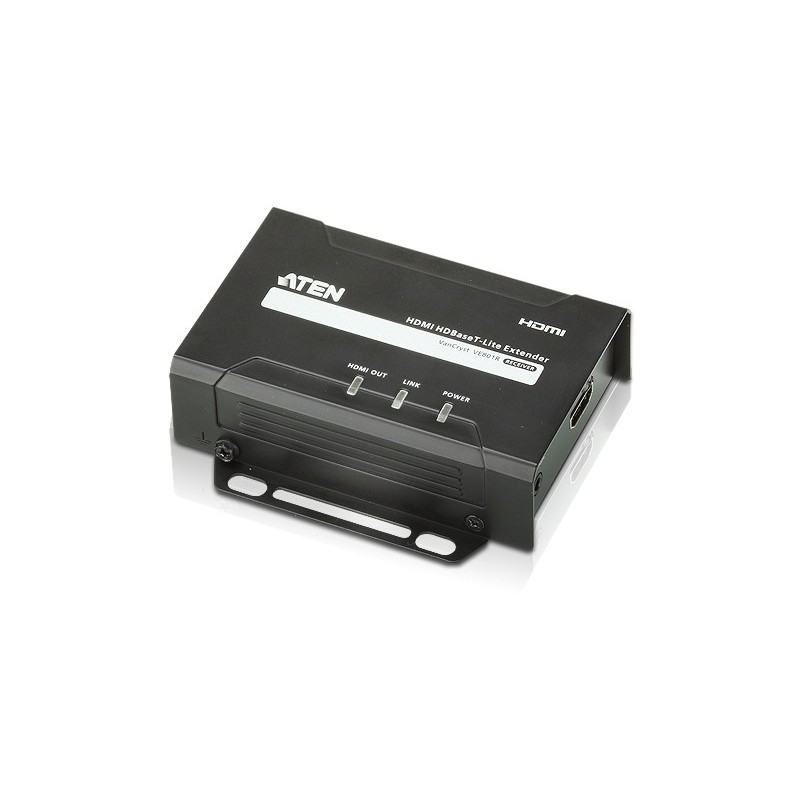

VE801R-AT-G

Data sheet

Type

AV receiver

Product color

Black

Quantity per pack

1 pc(s)

Connectivity technology

Wired

Weight

12.2 oz (347 g)

Maximum resolution

4096 x 2160 pixels

Plug and Play

Yes

Width

3.71" (94.2 mm)

Height

1.14" (29 mm)

Depth

2.6" (66 mm)

Package weight

15.6 oz (441 g)

Material

Metal

Master (outer) case width

9.84" (250 mm)

Master (outer) case length

12.8" (325 mm)

Master (outer) case height

6.89" (175 mm)

Master (outer) case weight

10.4 lbs (4.73 kg)

Quantity per master (outer) case

10 pc(s)

Package width

2.32" (59 mm)

Package depth

4.69" (119 mm)

Package height

6.3" (160 mm)

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

3D

Yes

Impedance

100 Ω

Manual

Yes

HDCP

Yes

Maximum refresh rate

60 Hz

Supported graphics resolutions

3840 x 2160, 4096 x 2160

Maximum transfer distance

2755.9" (70 m)

Firmware upgradeable

Yes

Master (outer) case net weight

7.65 lbs (3.47 kg)

HDCP version

2.2

Cable types supported

Cat5e, Cat6, Cat6a

External power adapter

Yes

Bandwidth

10.2 Gbit/s

Rack mounting

Yes

RJ-45 input ports

1

Number of HDMI outputs

1

Consumer Electronics Control (CEC) support

Yes

Operating voltage (receiver)

5 V

Power consumption (RX)

4.24 W

HDBaseT certified

Yes

HDBaseT port

Yes

Specific References

EAN13

4719264642791

MPN

VE801R-AT-G
