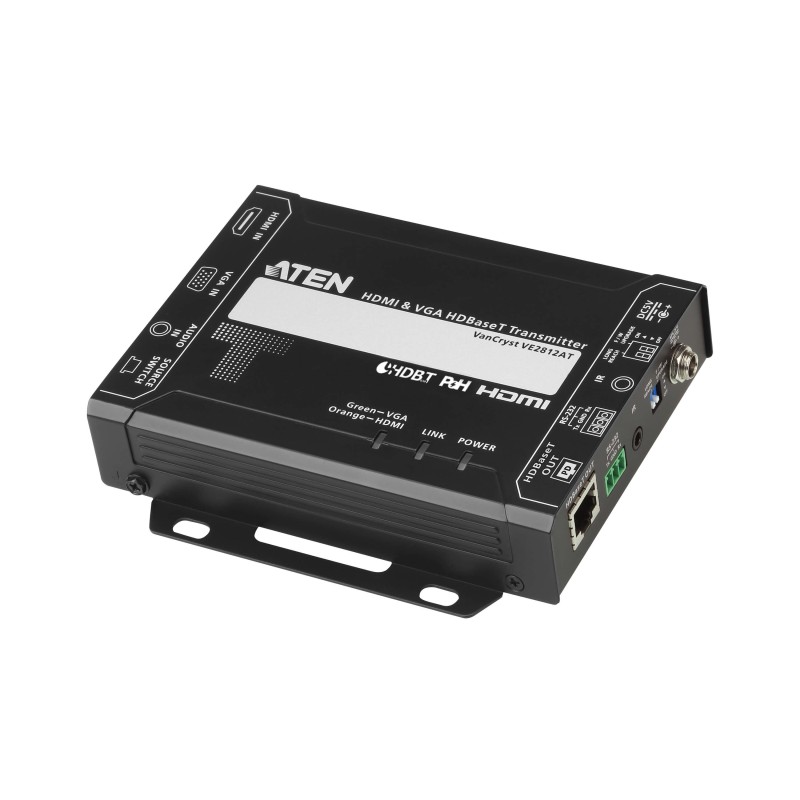

VE2812AT-AT-G
ATEN VE2812AT-AT-G, 4096 x 2160 pixels, AV transmitter, 3937" (100 m), Wired, 3D, HDCP
Description
ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
1 x VE2812AT Transmitter
1 x RS-232 Terminal Block
4 x Foot Pads
1 x 0AD8-1F05-26M1 Power Adapter
1 x User Instructions
ATEN VE2812AT-AT-G. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired. Width: 4.84" (123 mm), Depth: 5.64" (143.2 mm), Height: 1.18" (30 mm). Quantity per pack: 1 pc(s), Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm). Master (outer) case width: 9.84" (250 mm), Master (outer) case length: 12.8" (325 mm), Master (outer) case height: 6.89" (175 mm)
1 x VE2812AT Transmitter
1 x RS-232 Terminal Block
4 x Foot Pads
1 x 0AD8-1F05-26M1 Power Adapter
1 x User Instructions
ATEN VE2812AT-AT-G. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired. Width: 4.84" (123 mm), Depth: 5.64" (143.2 mm), Height: 1.18" (30 mm). Quantity per pack: 1 pc(s), Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm). Master (outer) case width: 9.84" (250 mm), Master (outer) case length: 12.8" (325 mm), Master (outer) case height: 6.89" (175 mm)
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 3937" (100 m) |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.2 |
| Product color | Black |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Audio input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 4.84" (123 mm) |
| Depth | 5.64" (143.2 mm) |
| Height | 1.18" (30 mm) |
| Weight | 22.6 oz (640 g) |
| Quantity per pack | 1 pc(s) |
| Package width | 2.32" (59 mm) |
| Package depth | 9.41" (239 mm) |
| Package height | 6.3" (160 mm) |
| Package weight | 27 oz (765 g) |
| Master (outer) case width | 9.84" (250 mm) |
| Master (outer) case length | 12.8" (325 mm) |
| Master (outer) case height | 6.89" (175 mm) |
| Master (outer) case weight | 9.7 lbs (4.4 kg) |
| Master (outer) case net weight | 7.05 lbs (3.2 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
2026-06-17
New
Data sheet
- Type
- AV transmitter
- Product color
- Black
- Quantity per pack
- 1 pc(s)
- Connectivity technology
- Wired
- Weight
- 22.6 oz (640 g)
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 4.84" (123 mm)
- Height
- 1.18" (30 mm)
- Depth
- 5.64" (143.2 mm)
- Package weight
- 27 oz (765 g)
- Material
- Metal
- Master (outer) case width
- 9.84" (250 mm)
- Master (outer) case length
- 12.8" (325 mm)
- Master (outer) case height
- 6.89" (175 mm)
- Master (outer) case weight
- 9.7 lbs (4.4 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 2.32" (59 mm)
- Package depth
- 9.41" (239 mm)
- Package height
- 6.3" (160 mm)
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- 3D
- Yes
- HDCP
- Yes
- Audio input
- 1
- Maximum transfer distance
- 3937" (100 m)
- Master (outer) case net weight
- 7.05 lbs (3.2 kg)
- HDCP version
- 2.2
- Bandwidth
- 10.2 Gbit/s
- RJ-45 output ports
- 1
- VGA (D-Sub) input ports
- 1
- HDMI in
- 1
- Consumer Electronics Control (CEC) support
- Yes
- Remote (IR) output
- 1
- HDBaseT port
- Yes
Specific References
- EAN13
- 4719264649639
- MPN
- VE2812AT-AT-G
