Description

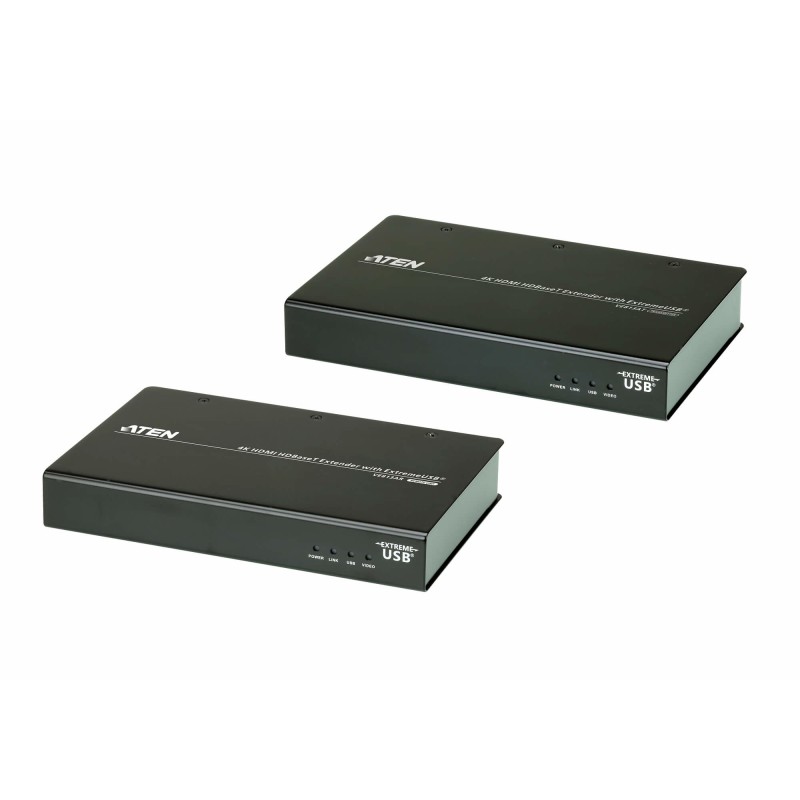

The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.
1x VE813AT 4K HDMI HDBaseT Extender with ExtremeUSB® (Transmitter)
1x VE813AR 4K HDMI HDBaseT Extender with ExtremeUSB® (Receiver)
1x LIN5-19V2-V12G HDMI Cable (1.8m/6ft)
1x LIN6-04U1-V1BG USB Cable (1.8m/6ft)
2x 0AD9-1B05-30EG Power Adapters
1x Mounting Kit
1x User Instructions
ATEN VE813A-AT-G. Type: AV transmitter & receiver, Cable types supported: Cat5, Cat6, Cat6a, Cat7, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (typical): 5.75 W. Weight: 3.84 lbs (1.74 kg), Receiver dimensions (WxDxH): 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm), Receiver weight: 21.9 oz (620 g). Package width: 3.86" (98 mm), Package depth: 12.8" (325 mm), Package height: 8.27" (210 mm)
1x VE813AT 4K HDMI HDBaseT Extender with ExtremeUSB® (Transmitter)
1x VE813AR 4K HDMI HDBaseT Extender with ExtremeUSB® (Receiver)
1x LIN5-19V2-V12G HDMI Cable (1.8m/6ft)
1x LIN6-04U1-V1BG USB Cable (1.8m/6ft)
2x 0AD9-1B05-30EG Power Adapters
1x Mounting Kit
1x User Instructions
ATEN VE813A-AT-G. Type: AV transmitter & receiver, Cable types supported: Cat5, Cat6, Cat6a, Cat7, Maximum transfer distance: 3937" (100 m). Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (typical): 5.75 W. Weight: 3.84 lbs (1.74 kg), Receiver dimensions (WxDxH): 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm), Receiver weight: 21.9 oz (620 g). Package width: 3.86" (98 mm), Package depth: 12.8" (325 mm), Package height: 8.27" (210 mm)
| Type | AV transmitter & receiver |
| Cable types supported | Cat5, Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 3937" (100 m) |
| LED indicators | Yes |
| Supported video modes | 1080p, 2160p |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| Product color | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 4 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| Power consumption (typical) | 5.75 W |
| Power consumption (receiver) (max) | 13.25 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight | 3.84 lbs (1.74 kg) |
| Receiver dimensions (WxDxH) | 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm) |
| Receiver weight | 21.9 oz (620 g) |
| Transmitter dimensions (WxDxH) | 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm) |
| Transmitter weight | 21.5 oz (610 g) |
| Package width | 3.86" (98 mm) |
| Package depth | 12.8" (325 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 4.5 lbs (2.04 kg) |
| AC adapter included | Yes |
| Cables included | HDMI, USB |
| Mounting kit | Yes |
| Master (outer) case width | 13.5" (342 mm) |
| Master (outer) case length | 20.2" (512 mm) |
| Master (outer) case height | 9.13" (232 mm) |
| Master (outer) case weight | 24.3 lbs (11 kg) |
| Master (outer) case net weight | 19.2 lbs (8.7 kg) |
| Quantity per master (outer) case | 5 pc(s) |
Product Details
2026-06-19
New
Data sheet
- Type
- AV transmitter & receiver
- Product color
- Black
- Connectivity technology
- Wired
- Weight
- 3.84 lbs (1.74 kg)
- Package weight
- 4.5 lbs (2.04 kg)
- Material
- Metal
- Master (outer) case width
- 13.5" (342 mm)
- Master (outer) case length
- 20.2" (512 mm)
- Master (outer) case height
- 9.13" (232 mm)
- Master (outer) case weight
- 24.3 lbs (11 kg)
- Quantity per master (outer) case
- 5 pc(s)
- Package width
- 3.86" (98 mm)
- Package depth
- 12.8" (325 mm)
- Package height
- 8.27" (210 mm)
- LED indicators
- Yes
- USB connector type
- USB Type-A, USB Type-B
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- Cables included
- HDMI, USB
- 3D
- Yes
- Impedance
- 100 Ω
- USB version
- 2.0
- USB ports quantity
- 4
- Receiver dimensions (WxDxH)
- 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm)
- Receiver weight
- 21.9 oz (620 g)
- Power consumption (typical)
- 5.75 W
- Mounting kit
- Yes
- HDCP
- Yes
- Supported video modes
- 1080p, 2160p
- Maximum transfer distance
- 3937" (100 m)
- Master (outer) case net weight
- 19.2 lbs (8.7 kg)
- Cable types supported
- Cat5, Cat6, Cat6a, Cat7
- Bandwidth
- 10.2 Gbit/s
- Transmitter weight
- 21.5 oz (610 g)
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- Power consumption (receiver) (max)
- 13.25 W
- Transmitter dimensions (WxDxH)
- 4.57 x 7.17 x 1.13" (116.1 x 182 x 28.7 mm)
- Number of HDMI outputs
- 1
- Consumer Electronics Control (CEC) support
- Yes
- Operating voltage (transmitter)
- 5 V
- Operating voltage (receiver)
- 5 V
Specific References
- EAN13
- 4719264645112
- MPN
- VE813A-AT-G
