SBPOEADPTEU

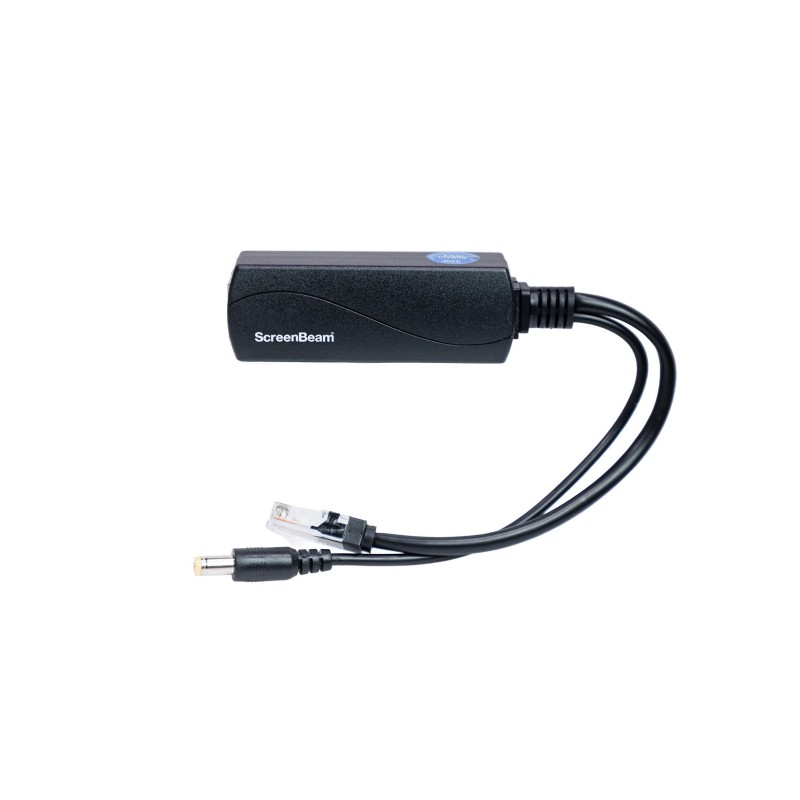

The ScreenBeam PoE (Power over Ethernet) Adapter is a high-performance PoE+ splitter / adapter designed specifically for all ScreenBeam 1xxx series hardware platforms. This adapter delivers both power and data over a single Ethernet cable, eliminating the need for a separate power outlet simplifying installation in conference rooms, classrooms, enterprise environments, and digital signage endpoints.

How It’s Used
Connect the PoE Adapter to your ScreenBeam 1000-series wireless display receiver.
Plug the adapter into a PoE-enabled network switch or injector.
The receiver receives both power and data through the Ethernet and power connection connections on the PoE Adapter, reducing cable clutter and simplifying installation.

Problems It Solves
- Cable Management: Removes the need for separate power outlets near the display, reducing clutter and complexity
- Installation Flexibility: Enables placement of receivers in locations without convenient access to AC power.
- Reduced Deployment Costs: Eliminates the expense of running additional electrical wiring for power.
- Improved Reliability: Centralized power management through PoE switches ensures consistent uptime and easier troubleshooting.

Compatibility
Works seamlessly with ScreenBeam 1xxx-series wireless display receivers, including models designed for enterprise and education environments.

Benefits of PoE vs. AC Power Adapter
- Single Cable Solution: Power and data delivered through one Ethernet cable.
- Simplified Installations: No need for local power outlets behind displays.
- Centralized Power Control: Manage power remotely via PoE switch for easier maintenance.
- Enhanced Safety: Reduces risk of exposed electrical cords in public spaces.
- Scalable Deployments: Ideal for large-scale rollouts in conference rooms, classrooms, and digital signage setups.

Requirements
- PoE+ Capable Network Switch or Injector: Must support IEEE 802.3at for sufficient power delivery.
- Compatible ScreenBeam Hardware: Works with all ScreenBeam 1xxx series platforms.
- Ethernet Cabling: Standard Cat5e or higher recommended for best performance.

ScreenBeam PoE Adapter. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Power over Ethernet (PoE) type supported: PoE+. Product color: Black. Output current: 3 A, DC output voltage: 12 V. Width: 10.8" (275 mm), Depth: 1.1" (28 mm), Height: 0.906" (23 mm). Number of products included: 1 pc(s)

Ethernet interface type	Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Product color	Black
Easy to install	Yes
LED indicators	Yes
Ethernet LAN (RJ-45) ports	1
RJ-45 input ports	1
RJ-45 output ports	1
DC-in jack	Yes
Output current	3 A
DC output voltage	12 V
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-30 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Width	10.8" (275 mm)
Depth	1.1" (28 mm)
Height	0.906" (23 mm)
Weight	5.29 oz (150 g)
Number of products included	1 pc(s)
