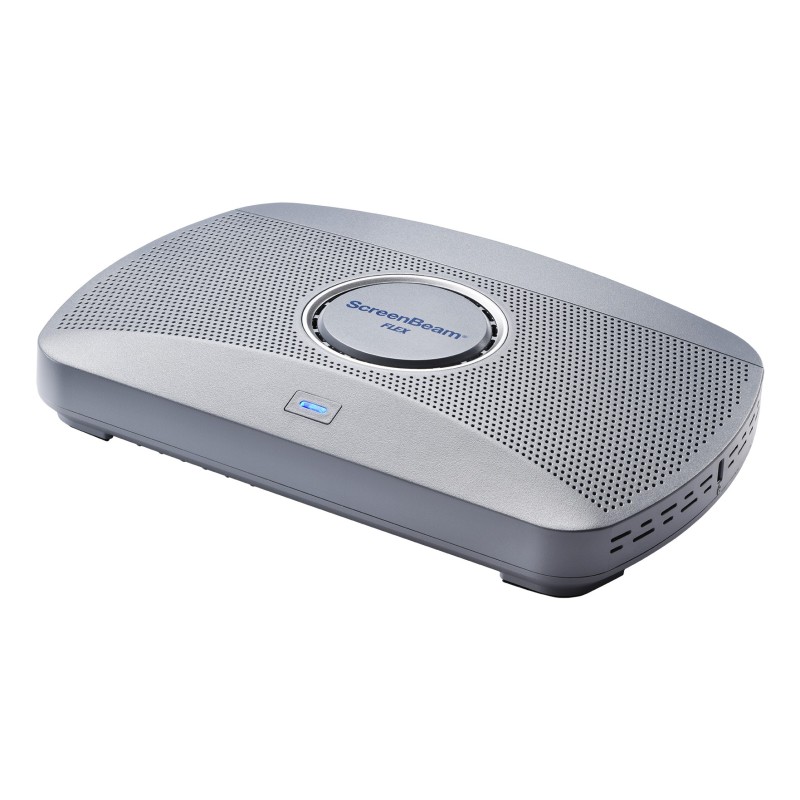

SBWD1100FEUDMIN3Y

ScreenBeam FLEX delivers 4K wireless presentation, multi-user display, touch/inking support, and digital signage—empowering SMBs and higher ed to affordably turn any space into a secure, dynamic collaboration hub

App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.

Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.

Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.

Multi-Network architecture
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously, without compromising the security of your internal network.

Multi-View
Up to four presenters in-room can share content simultaneously during a meeting making it easier for real-time editing of materials.

Quick Switch
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.

Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.

HDMI Input
Combines wireless display and HDMI® switching in a single device for a fully functional for wired and wireless connections.

Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.

GhostInking
GhostInking is ScreenBeam’s patented technology that eliminates wireless inking lag, delivering instant, natural handwriting on any interactive display connected wirelessly to a Windows device—no apps, cables, or proprietary tools. It enables a true pen-to-paper experience for seamless collaboration.

ScreenBeam Flex inc 3 Years Administrative Tools & 3 Year Warranty. Form factor: Desktop, Product color: White, Certification: FCC, RED, RoHS, UL. Wi-Fi standards: Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Ethernet LAN data rates: 10,100,1000 Mbit/s. Interface: HDMI + USB Type-A. Power source type: DC, Input voltage: 12 DC, Input current: 3 A. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS

Form factor	Desktop
Product color	White
Certification	FCC, RED, RoHS, UL
AirPlay mirroring	Yes
Miracast	Yes
Google Cast	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Dual-band	Yes
Bluetooth	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.1x
Supported network protocols	IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS
Interface	HDMI + USB Type-A
Number of HDMI outputs	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
3.5 mm (1/8-inch) out	Yes
DC-in jack	Yes
Power source type	DC
Input voltage	12 DC
Input current	3 A
Power consumption (max)	24.8 W
Power consumption (typical)	8.4 W
Windows operating systems supported	Windows 10, Windows 11
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android 8.0, Android 8.1, Android 9.0, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	20 - 85 °C
Storage relative humidity (H-H)	10 - 90%
Width	8.66" (220 mm)
Depth	5.67" (144 mm)
Height	1.48" (37.5 mm)
Weight	16 oz (453.5 g)
Cables included	HDMI
