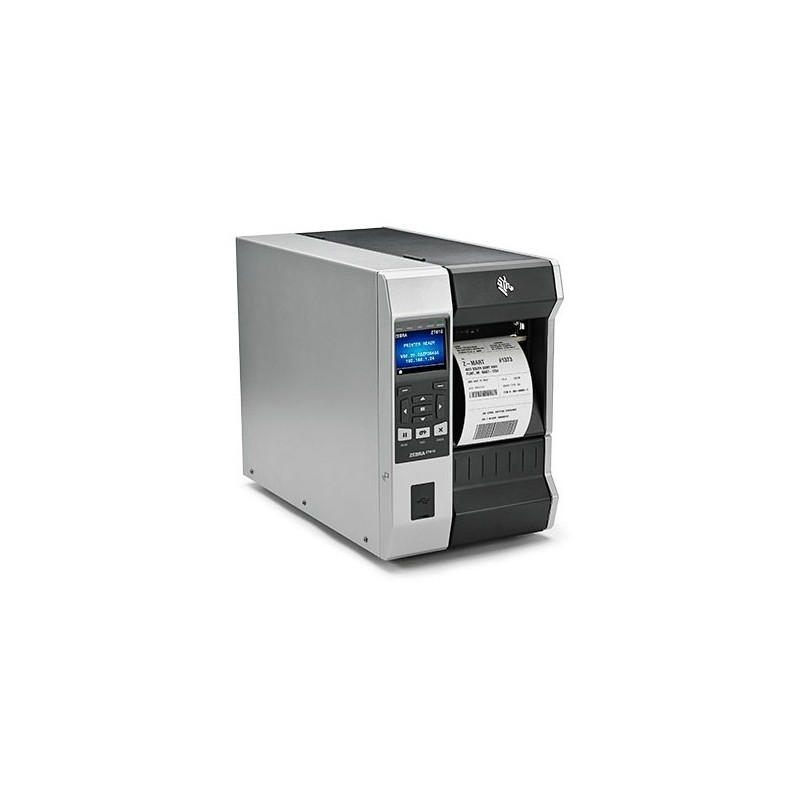

ZT61043-T0E0100Z

THE NEXT GENERATION XI SERIES, NOW WITH MORE INTELLIGENCE AND INDUSTRIAL BRAWN
The ZT600 Series advances the legacy of the Xi Series printers to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, the ZT600 Series industrial printers have you covered today – and for years to come.

EXCEPTIONAL PERFORMANCE FROM MICRO LABELS TO HIGH-VOLUME SHIPPING
Boost your productivity with printers that just won’t quit. The ZT600 Series features durable steel structural components that can withstand years of abuse in extreme temperatures, dust, debris and other challenging industrial conditions. Meticulously engineered printing mechanisms provide 24/7 reliability to meet your high-volume production needs. Plus, the ZT610™ offers best-in-class print registration with 600 dpi micro consistent printing.

HASSLE-FREE SETUP, DAILY USE, MAINTENANCE AND TROUBLESHOOTING
From color-illuminated media and ribbon paths that help you identify problems quickly to easy-adjust printhead pressure toggles that feature a scale and color-coded pressure indicators to simplify printer setup and operation, every detail of the ZT600 Series was designed to be user-friendly. Side loading capabilities eliminate the hassles of threading. Onboard sensors, diagnostics and help resources reduce the need for technical support. And guided instructions and feedback prevent common errors and reduce manual adjustments for highly consistent printing.

OPERATIONAL VISIBILITY, REMOTE MANAGEMENT AND FUTURE-READY ADAPTABILITY
The ZT610 and ZT620 are as smart as they are powerful. Zebra’s cloud-accessible Link-OS™ software platform and managed services offerings give you total visibility and control over your printing systems, whether you’re on-site or across the globe. Plus, with two available communication slots, field-installable RFID encoder and media-handling options, and two USB host ports for plug-and-play integration, it’s easy to stay ahead of your evolving business and technology needs, whatever they may be.

Zebra ZT610. Print technology: Thermal transfer, Maximum resolution: 300 x 300 DPI, Print speed: 300 mm/sec. Connectivity technology: Wired & Wireless, Ethernet LAN, Bluetooth, Bluetooth version: 4.0, USB port. Product color: Black, Gray

Print technology	Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed	300 mm/sec
Maximum printing width	4.09" (10.4 cm)
Vertical printing	Yes
Rotated printing	Yes
Ribbon width	4.33" (11 cm)
Ribbon length	17716.5" (450 m)
Maximum label length	30000" (762 m)
Maximum roll diameter	7.99" (20.3 cm)
Media thickness	0.058 - 0.25 mm
Core diameter	3" (7.62 cm)
Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Wi-Fi	No
USB port	Yes
Bluetooth	Yes
Bluetooth version	4.0
USB 2.0 ports quantity	3
RS-232 ports	1
Page description languages	ZPL, ZPL II
Internal memory	1024 MB
Flash memory	2048 MB
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Built-in processor	Yes
Number of fonts	16
Processor frequency	800 MHz
Product color	Black, Gray
Display	LCD
Built-in display	Yes
Display diagonal	4.3"
Color display	Yes
Housing material	Metal
AC input voltage	90 - 265 V
AC input frequency	47-63 Hz
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	20 - 85%
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-30 - 60 °C
Width	10.6" (268.2 mm)
Depth	19.9" (505 mm)
Height	15.6" (395.7 mm)
Weight	50 lbs (22.7 kg)
Harmonized System (HS) code	84433210
Sustainability certificates	ENERGY STAR
Navigation key	Yes
Plug and Play	Yes
