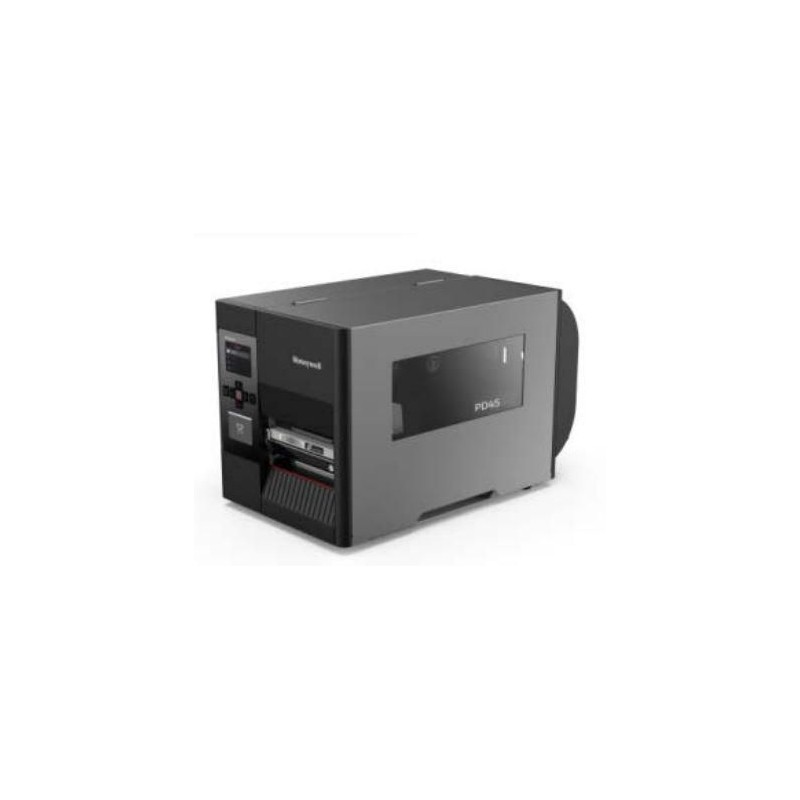

PD45S1FE010000300
  • PD45S1FE010000300

PD45S1FE010000300

Honeywell
PD45S, 3.5" Color Touch LCD-Display, 8 dots/mm (203 dpi), ZPLII, ZSim II, IPL, DPL, USB, USB Host, RS232
CHF1,374.4
Tax included
CHF1,271.4 Tax excluded
Delivery in several days
Quantity
Will be ordered for you

Description
This Item:
PD45S1F, Full touch screen, Direct Thermal and Thermal Transfer printer,no f-sensor,Ethernet, 300dpi, no power cord, EU
__________________________________________

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell’s patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.

Specifications

Design

Built-in displayYes
DisplayLCD
Display diagonal3.5 "
Product colourBlack

Operational conditions

Operating relative humidity (H-H)20 - 85 %
Operating temperature (T-T)5 - 40 °C
Storage relative humidity (H-H)20 - 85 %
Storage temperature (T-T)-20 - 70 °C

Paper handling

Core diameter7.62 cm
Maximum label width10.8 cm
Maximum media length480 cm
Maximum roll diameter8 cm
Media thickness0.076 - 0.255 mm
Ribbon length450 m
Ribbon width11 cm

Performance

Built-in barcodes1D/2D
Flash memory128 MB
Internal memory128 MB

Ports & interfaces

Connectivity technologyWired
Ethernet LANYes
RS-232 ports1
USB 2.0 ports quantity2
USB portYes

Power

AC input frequency50 - 60 Hz
AC input voltage100 - 240 V

Printing

ColourNo
Maximum printing width10.8 cm
Maximum resolution203 x 203 DPI
Minimum print length5 mm
Number of printable dots8 dot
Print speed250 mm/sec
Print technologyDirect thermal / Thermal transfer
Printing characters2D barcode/Barcode/Graphic/Text

Vendor information

Brand NameHoneywell
Warranty1
Product Details
2026-07-27
New

Data sheet

Flash memory
128 MB
Anzahl der USB 2.0-Anschlüsse
2
Tape length
450 m
Print speed
250 mm/sek
Maximum printing width (columns)
10.8 cm
Minimum print length
0.197" (5 mm)
Core diameter
7.62 cm
Anzeige
LCD
USB-Anschluss
Yes
Ethernet-LAN
Yes
Konnektivitätstechnologie
Wired
AC-Eingangsfrequenz
50 - 60 Hz
AC-Eingangsspannung
100 - 240 V
Maximum Auflösung
203 x 203 DPI
Bandbreite
11 cm
Drucktechnologie
Direct thermal / Thermal transfer
Eingebautes Display
Yes
Farbe
No
Diagonale anzeigen
3.5 "
Brand Name
Honeywell
Warranty
1
Betriebstemperatur (TT)
5 - 40 °C
Lagertemperatur (TT)
-20 - 70 °C
Relative Luftfeuchtigkeit bei Lagerung (HH)
20 - 85 %
Relative Luftfeuchtigkeit im Betrieb (HH)
20 - 85 %
Interner Speicher
128 MB
Produktfarbe
Black
RS-232-Anschlüsse
1
Maximum Rollendurchmesser
8 cm
Mediendicke
0.076 - 0.255 mm
Maximum Medienlänge
480 cm
Eingebaute Barcodes
1D/2D
Druckbare Punktnummern
8 dot
Maximum Etikettenbreite
10.8 cm
Zeichen drucken
2D barcode/Barcode/Graphic/Text

Specific References

MPN
PD45S1FE010000300
