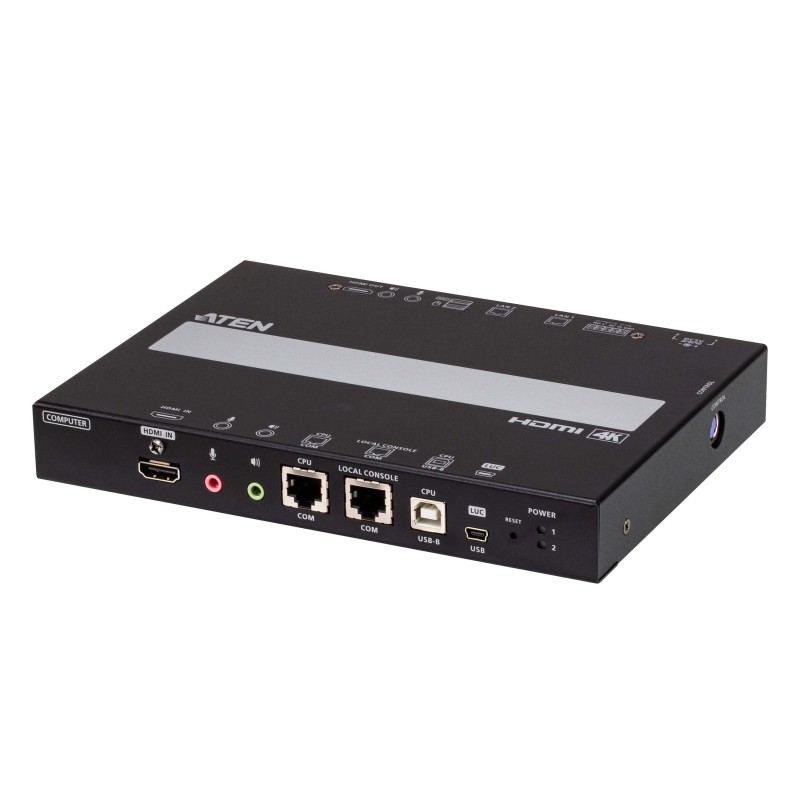

RCMHD101U-AX-G

The RCMHD101U Single Port HDMI KVM over IP Switch is a KVM device exclusively designed for production line applications, which can grant the video, audio, mouse & keyboard, and virtual media access of a workstation at a production line to a local and remote consoles for convenient management. It also supports microphone and speakers for both local and remote consoles.

Integrated with ATEN's exclusive RCM API and an FPGA graphics processor supporting up to 4K DCI resolution (4096 x 2160 @ 30 Hz), the KVM over IP Switch delivers optimal OCR functionality and customizable system integration and automation. Additionally, by using the RCMMS (RCM Management Software), an intuitive, centralized management platform featuring Panel Array, users can manage, monitor, and control up to hundreds of RCM devices simultaneously.

For enhancing its production line application capabilities, RCMHD101U features USB / RS-232 touch panel support, OSD title-bar notification, and local console priority. Furthermore, with the ATEN Access Control Box (2XRT-0015G) installed, remote access to the RCMHD101U can be enabled or disabled on site as required.

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port. By simply connecting a laptop to the LUC port, users can access any computer connected to the switch for easy on-site management. That means no additional monitor, keyboard and mouse is required locally for routine maintenance. Additionally, the RCMHD101U Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS / applications updates and patches from a remote console.

To ensure seamless connectivity, the RCMHD101U is equipped with dual LAN and dual power functionality for keeping operation at the production line smooth and efficient.

All in all, the RCMHD101U provides a complete system management across different facilities reduces the number of operators required on site to minimize space requirement while maximizing personnel efficiency. With its over-IP access eliminating the need to physically move legacy KVM solution to each malfunctioning unit, providing users with the ability to capture the device display screen data for data collection and direct OCR analysis, and using APIs for software integration applications, it is an outstanding solution for high-tech production lines requiring durable and reliable over-IP server management.

ATEN RCMHD101U. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product color: Black, Housing material: Metal, LED indicators: Power. Width: 5.93" (150.5 mm), Depth: 7.87" (200 mm), Height: 1.12" (28.4 mm). Package width: 3.86" (98 mm), Package depth: 12.8" (325 mm), Package height: 8.27" (210 mm)

Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity	1
USB 2.0 Type-B ports quantity	1
Console USB ports quantity	2
Console HDMI ports quantity	1
Serial port type	RJ-45
Serial ports quantity	2
Audio connections	Yes
Headphone outputs	2
Number of microphone inputs	2
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	30 Hz
Number of users	64 user(s)
Firmware upgradeable	Yes
Product color	Black
Housing material	Metal
LED indicators	Power
Push button	Yes
Built-in display	No
On Screen Display (OSD)	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	5.93" (150.5 mm)
Depth	7.87" (200 mm)
Height	1.12" (28.4 mm)
Weight	29.6 oz (840 g)
Package width	3.86" (98 mm)
Package depth	12.8" (325 mm)
Package height	8.27" (210 mm)
Package volume	6796.04 cm³
Package weight	3.02 lbs (1.37 kg)
Cables included	KVM, Mini-USB
Manual	Yes
AC adapter included	Yes
Rack mount kit	Yes
Rubber feet	Yes
Master (outer) case width	13.5" (342 mm)
Master (outer) case length	20.2" (512 mm)
Master (outer) case height	9.13" (232 mm)
Master (outer) case weight	19.3 lbs (8.76 kg)
Master (outer) case volume	40776.26 cm³
Country of origin	Taiwan
Package net weight	15.1 lbs (6.85 kg)
