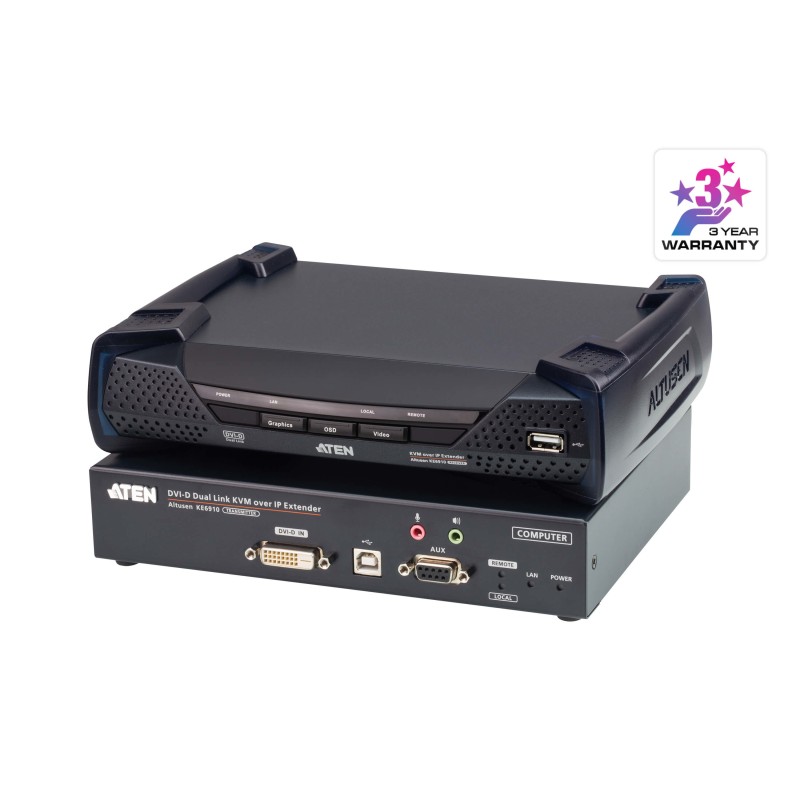

KE6910-AX-G - KE6910-AX-G

Data sheet

Type

Transmitter & receiver

Product color

Black

Connectivity technology

Wired

USB 2.0 ports quantity

4

Weight

7.98 lbs (3.62 kg)

Harmonized System (HS) code

84733080

Certification

RoHS

Package weight

10.2 lbs (4.61 kg)

Material

Metal

Master (outer) case width

9.72" (247 mm)

Master (outer) case length

21.9" (556 mm)

Master (outer) case height

6.02" (153 mm)

Master (outer) case weight

10.2 lbs (4.61 kg)

Quantity per master (outer) case

1 pc(s)

Package width

9.72" (247 mm)

Package depth

21.9" (556 mm)

Package height

6.02" (153 mm)

LED indicators

Yes

Maximum digital resolution

2560 x 2048 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 95%

AC adapter included

Yes

Cables included

AC, KVM

Manual

Yes

Receiver weight

2.78 lbs (1.26 kg)

On Screen Display (OSD)

Yes

Maximum transfer distance

393700.8" (10000 m)

Master (outer) case net weight

7.98 lbs (3.62 kg)

RJ-45 ports quantity

2

Cable types supported

Cat5

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

Rack mounting

Yes

Transmitter video port type

DVI-D

Transmitter local video port type

DVI-D

Transmitter width

6.42" (16.3 cm)

Transmitter depth

8.46" (21.5 cm)

Transmitter height

1.65" (4.18 cm)

Transmitter weight

2.49 lbs (1.13 kg)

Receiver local video port type

DVI-D

Receiver local keyboard/mouse port type

USB

USB port type

USB Type-A

PC Audio in

Yes

PC Audio out

Yes

AC adapter output voltage

5 V

Power consumption (transmitter) (max)

10.02 W

Transmitter local keyboard/mouse port type

USB

Receiver width

6.77" (17.2 cm)

Receiver depth

8.98" (22.8 cm)

Receiver height

2.16" (5.48 cm)

RS-232 ports

2

Power consumption (receiver) (max)

9.02 W

Transmitter local video port

Yes

KVM port selection

Push-buttons

Specific References

EAN13

4719264648267

MPN

KE6910-AX-G
