VE7832A-AT

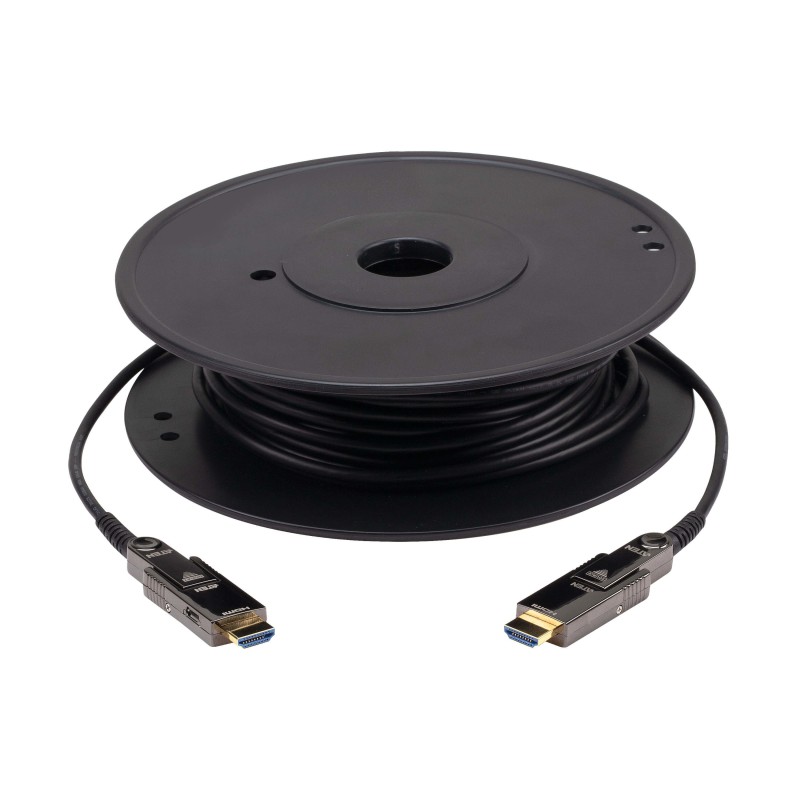

ATEN VE7832A, 787.4" (20 m), HDMI Type D (Micro), HDMI Type D (Micro), 3D, 18 Gbit/s, Black
Description
ATEN VE7832A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 20 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions.This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the VE7832A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
ATEN VE7832A. Cable length: 787.4" (20 m), Connector 1: HDMI Type D (Micro), Connector 1 gender: Male, Connector 2: HDMI Type D (Micro), Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product color: Black
Engineered to meet the latest trend of integrator-friendly design, the VE7832A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
ATEN VE7832A. Cable length: 787.4" (20 m), Connector 1: HDMI Type D (Micro), Connector 1 gender: Male, Connector 2: HDMI Type D (Micro), Connector 2 gender: Male, Connector contacts plating: Gold, 3D, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product color: Black
| Cable length | 787.4" (20 m) |
| Connector 1 | HDMI Type D (Micro) |
| Connector 2 | HDMI Type D (Micro) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product color | Black |
| Connector contacts plating | Gold |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Dolby technologies | Dolby TrueHD, DTS-HD Master Audio |
| Pull-resistant connector(s) | Yes |
| Pull-off force | 22 lbs (10 kg) |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Data transfer rate | 18 Gbit/s |
| High Dynamic Range (HDR) supported | Yes |
| Bandwidth | 600 MHz |
| Maximum refresh rate | 60 Hz |
| Cable material | Copper |
| Cable jacket material | Plenum (OFNP) |
| Bending radius (min) | 0.787" (2 cm) |
| Cable shielding | Aluminum mylar foil |
| Plug and Play | Yes |
| Color sampling | 4:4:4 |
| Extended display identification data (EDID) | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certification | CE, FCC, RoHS2, UL CMP-OF |
| Cable diameter | 0.177" (4.5 mm) |
| Weight | 33.5 oz (950 g) |
| Package volume | 3964.359 cm³ |
| Interface adapters included | Micro HDMI female - HDMI male |
| Manual | Yes |
| Screwdriver included | Yes |
| Quantity per pack | 1 pc(s) |
| Package width | 8.86" (225 mm) |
| Package depth | 9.25" (235 mm) |
| Package height | 2.91" (74 mm) |
| Package weight | 2.27 lbs (1.03 kg) |
| Country of origin | China |
| Master (outer) case net weight | 20.9 lbs (9.5 kg) |
| Master (outer) case width | 15.2" (385 mm) |
| Master (outer) case length | 18.5" (470 mm) |
| Master (outer) case height | 10.4" (265 mm) |
| Master (outer) case weight | 23.1 lbs (10.5 kg) |
| Master (outer) case volume | 47855.471 cm³ |
Product Details
2026-05-13
New
Data sheet
- Product color
- Black
- Quantity per pack
- 1 pc(s)
- Cable length
- 787.4" (20 m)
- Connector 1
- HDMI Type D (Micro)
- Connector 2
- HDMI Type D (Micro)
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Weight
- 33.5 oz (950 g)
- Plug and Play
- Yes
- Country of origin
- China
- Data transfer rate
- 18 Gbit/s
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Certification
- CE, FCC, RoHS2, UL CMP-OF
- Package weight
- 2.27 lbs (1.03 kg)
- Master (outer) case width
- 15.2" (385 mm)
- Master (outer) case length
- 18.5" (470 mm)
- Master (outer) case height
- 10.4" (265 mm)
- Master (outer) case weight
- 23.1 lbs (10.5 kg)
- Package width
- 8.86" (225 mm)
- Package depth
- 9.25" (235 mm)
- Package height
- 2.91" (74 mm)
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 85%
- 3D
- Yes
- Manual
- Yes
- Connector contacts plating
- Gold
- Cable shielding
- Aluminum mylar foil
- HDCP
- Yes
- Maximum refresh rate
- 60 Hz
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Bend radius (min)
- 0.787" (2 cm)
- Color sampling
- 4:4:4
- Cable diameter
- 0.177" (4.5 mm)
- High Dynamic Range (HDR) supported
- Yes
- Master (outer) case net weight
- 20.9 lbs (9.5 kg)
- HDMI Ethernet channel
- Yes
- HDCP version
- 2.2
- Cable material
- Copper
- Cable jacket material
- Plenum (OFNP)
- Audio Return Channel (ARC)
- Yes
- Package volume
- 3964.359 cm³
- Bandwidth
- 600 MHz
- Extended display identification data (EDID)
- Yes
- Master (outer) case volume
- 47855.471 cm³
- Dolby technologies
- Dolby TrueHD, DTS-HD Master Audio
- Interface adapters included
- Micro HDMI female - HDMI male
- Screwdriver included
- Yes
- Abzugskraft
- 22 lbs (10 kg)
- Pull-resistant connector(s)
- Yes
Specific References
- MPN
- VE7832A-AT
