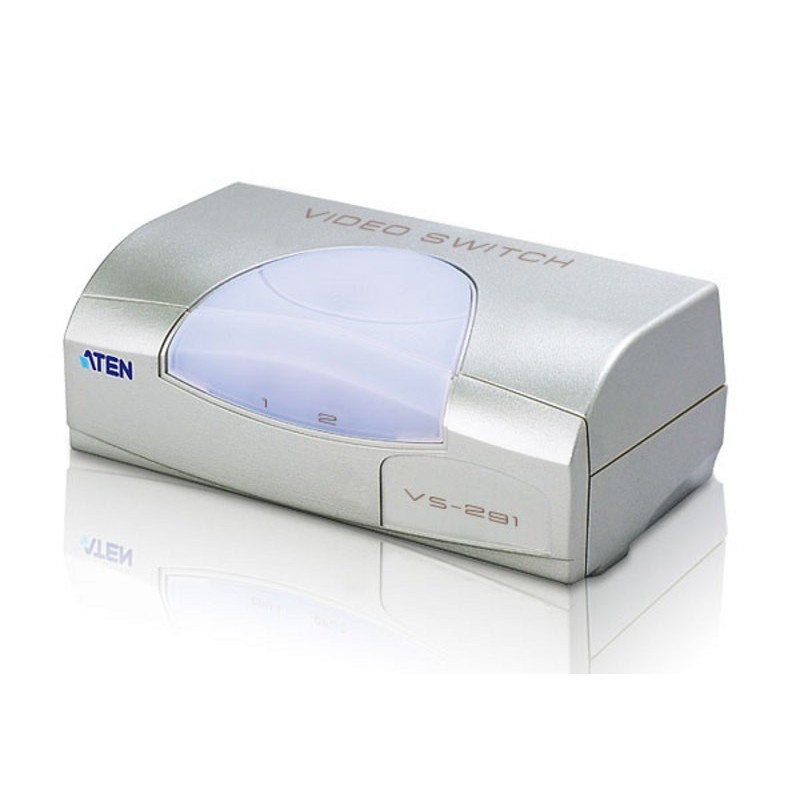

VS291-AT-G

Data sheet

Product color

Silver

Quantity per pack

1 pc(s)

VGA (D-Sub) ports quantity

3

Weight

220 g

Harmonized System (HS) code

85176990

Maximum resolution

1920 x 1440 pixels

Width

2.57" (65.2 mm)

Height

1.73" (44 mm)

Depth

4.72" (120 mm)

Package weight

12.7 oz (360 g)

Material

Metal, Plastic

Master (outer) case width

12.4" (315 mm)

Master (outer) case length

19.3" (490 mm)

Master (outer) case height

13.3" (338 mm)

Master (outer) case weight

17.4 lbs (7.9 kg)

Quantity per master (outer) case

20 pc(s)

Package width

2.32" (59 mm)

Package depth

9.41" (239 mm)

Package height

6.3" (160 mm)

LED indicators

Yes

DC-in jack

Yes

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Power consumption (typical)

0.82 W

Video port type

VGA

Maximum refresh rate

60 Hz

Supported graphics resolutions

640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1440

Output impedance

75 Ω

Master (outer) case net weight

9.7 lbs (4.4 kg)

Maximum operating distance

393.7" (10 m)

Bandwidth

150 MHz

VGA (D-Sub) input ports

2

Input impedance

75 Ω

VGA (D-Sub) output ports

1

Specific References

EAN13

4710423771628

MPN

VS291-AT-G
