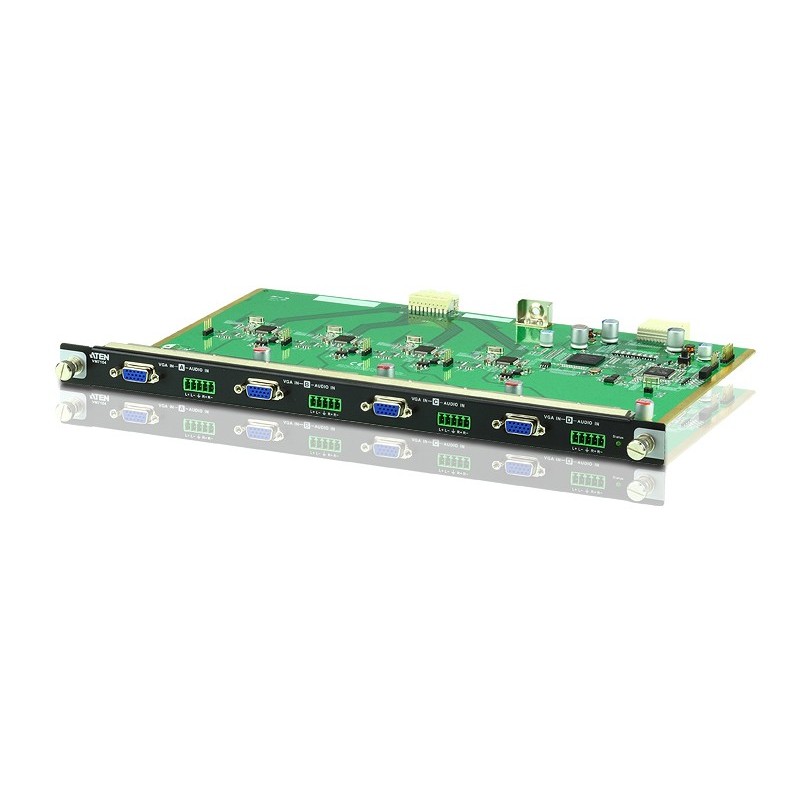

VM7104-AT

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.

- Connects up to 4 VGA or Component inputs
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Hot-swappable design for easy integration of I/O boards
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibilit

ATEN VM7104. Video port type: VGA. Material: Metal, Product color: Black, Green, Supported graphics resolutions: 1920 x 1200 (WUXGA). Power consumption (typical): 7.1 W. Width: 12.9" (328 mm), Height: 8.98" (228 mm), Weight: 19.8 oz (560 g)

Video port type	VGA
VGA (D-Sub) ports quantity	4
Material	Metal
Product color	Black, Green
Supported graphics resolutions	1920 x 1200 (WUXGA)
Bandwidth	300 MHz
Maximum resolution	1920 x 1200 pixels
Power consumption (typical)	7.1 W
Width	12.9" (328 mm)
Height	8.98" (228 mm)
Weight	19.8 oz (560 g)
Length	13.9" (352 mm)
Manual	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
