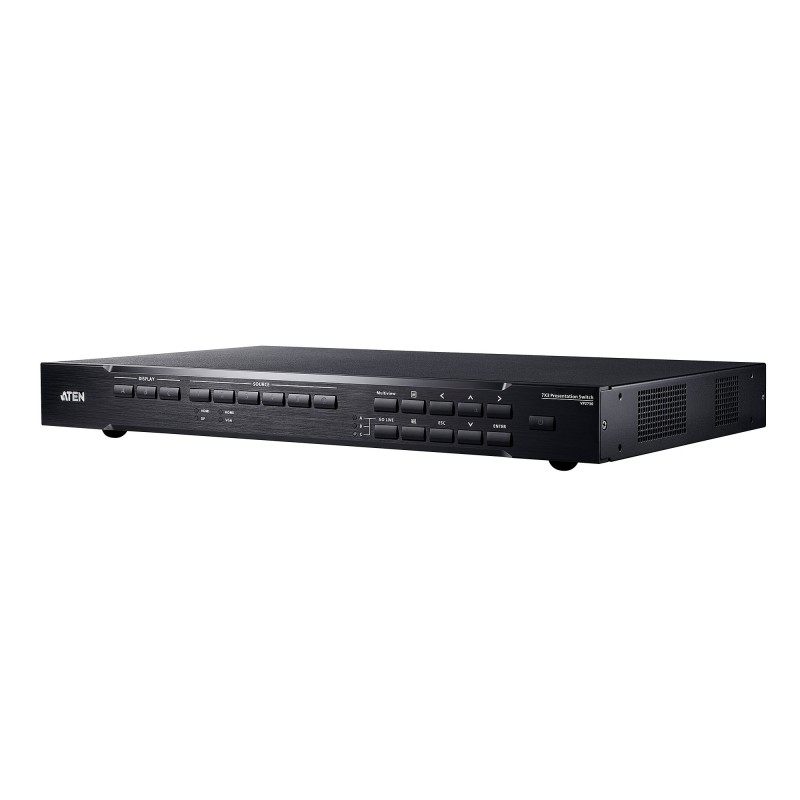

VP2730-AT-G - VP2730-AT-G

Data sheet

Product color

Black

Quantity per pack

1 pc(s)

HDMI ports quantity

7

DisplayPorts quantity

1

Weight

8.6 lbs (3.9 kg)

Harmonized System (HS) code

85176990

Maximum resolution

1920 x 1200 pixels

Width

10.3" (262.8 mm)

Height

1.73" (44 mm)

AC input voltage

100 - 240 V

Depth

17" (432.4 mm)

Package weight

11.7 lbs (5.32 kg)

Material

Metal

Master (outer) case width

13.3" (338 mm)

Master (outer) case length

20.3" (515 mm)

Master (outer) case height

6.1" (155 mm)

Master (outer) case weight

11.7 lbs (5.32 kg)

Quantity per master (outer) case

1 pc(s)

Package width

13.3" (338 mm)

Package depth

20.3" (515 mm)

Package height

6.1" (155 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

User guide

Yes

Built-in speaker(s)

No

Cables included

AC

Rack capacity

1U

Handheld remote control

Yes

Compliance certificates

RoHS

HDCP

Yes

Power consumption (max)

28.5 W

Video port type

HDMI

Maximum refresh rate

60 Hz

Supported video modes

1080p

Master (outer) case net weight

8.6 lbs (3.9 kg)

HDCP version

1.4

Extended display identification data (EDID)

Yes

Power cord included

Yes

Rack mounting

Yes

RJ-45 output ports

1

VGA (D-Sub) input ports

1

RS-232 ports

1

AC adapter frequency

50/60 Hz

Number of HDMI outputs

2

HDMI in

5

Consumer Electronics Control (CEC) support

Yes

AC adapter input current

1 A

Digital audio coaxial out

1

Remote control type

IR

Specific References

EAN13

4719264646768

MPN

VP2730-AT-G
