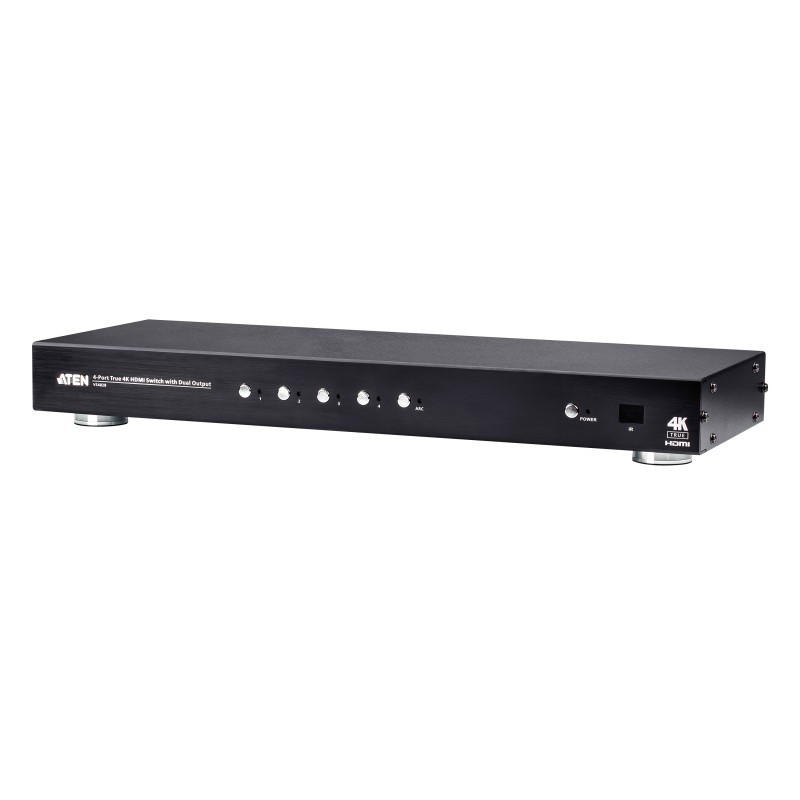

VS482B-AT-G - VS482B-AT-G
ATEN VS482B-AT-G, HDMI, Metal, Black, 60 Hz, 118.1" (3 m), 3840 x 2160, 4096 x 2160
Description
The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions
ATEN VS482B-AT-G. Video port type: HDMI. Material: Metal, Product color: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 3.29 W. Width: 6.25" (158.8 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm). Package width: 4.57" (116 mm), Package depth: 21.3" (540 mm), Package height: 9.17" (233 mm)
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions
ATEN VS482B-AT-G. Video port type: HDMI. Material: Metal, Product color: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 3.29 W. Width: 6.25" (158.8 mm), Depth: 17.2" (437.2 mm), Height: 1.73" (44 mm). Package width: 4.57" (116 mm), Package depth: 21.3" (540 mm), Package height: 9.17" (233 mm)
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| RS-232 ports | 1 |
| DC-in jack | Yes |
| Material | Metal |
| Product color | Black |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 118.1" (3 m) |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 18 Gbit/s |
| LED indicators | Yes |
| Bandwidth | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 2.2 |
| Power consumption (typical) | 3.29 W |
| Width | 6.25" (158.8 mm) |
| Depth | 17.2" (437.2 mm) |
| Height | 1.73" (44 mm) |
| Weight | 4.76 lbs (2.16 kg) |
| Package width | 4.57" (116 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 6.26 lbs (2.84 kg) |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 14.8" (375 mm) |
| Master (outer) case length | 22.2" (565 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Master (outer) case weight | 20.4 lbs (9.27 kg) |
| Quantity per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 14.3 lbs (6.48 kg) |
Product Details
VS482B-AT-G
2026-04-13
New
Data sheet
- Product color
- Black
- HDMI ports quantity
- 6
- Weight
- 4.76 lbs (2.16 kg)
- Harmonized System (HS) code
- 85176990
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Width
- 6.25" (158.8 mm)
- Height
- 1.73" (44 mm)
- Depth
- 17.2" (437.2 mm)
- Package weight
- 6.26 lbs (2.84 kg)
- Material
- Metal
- Master (outer) case width
- 14.8" (375 mm)
- Master (outer) case length
- 22.2" (565 mm)
- Master (outer) case height
- 10.2" (258 mm)
- Master (outer) case weight
- 20.4 lbs (9.27 kg)
- Quantity per master (outer) case
- 3 pc(s)
- Package width
- 4.57" (116 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- LED indicators
- Yes
- HDMI version
- 2.0
- DC-in jack
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- AC adapter included
- Yes
- 3D
- Yes
- Power consumption (typical)
- 3.29 W
- Mounting kit
- Yes
- Compliance certificates
- RoHS
- HDCP
- Yes
- Video port type
- HDMI
- Maximum refresh rate
- 60 Hz
- Supported graphics resolutions
- 3840 x 2160, 4096 x 2160
- Output impedance
- 100 Ω
- Master (outer) case net weight
- 14.3 lbs (6.48 kg)
- HDCP version
- 2.2
- Maximum operating distance
- 118.1" (3 m)
- Bandwidth
- 18 Gbit/s
- RS-232 ports
- 1
- Number of HDMI outputs
- 2
- HDMI in
- 4
- Consumer Electronics Control (CEC) support
- Yes
- Input impedance
- 100 Ω
Specific References
- EAN13
- 4719264649325
- MPN
- VS482B-AT-G
