Description

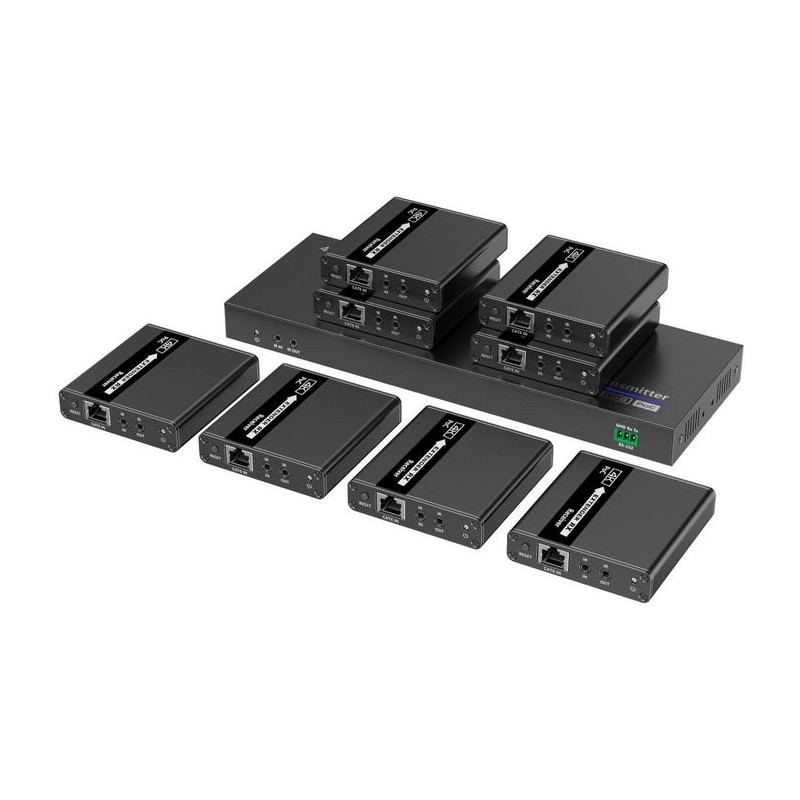

IDATA EX-HL81TYP represents the reliable solution for extending an HDMI signal over long distances, guaranteeing clarity and stability for both video and audio quality, with full support for full HD video and PCM audio signals, all while optimizing costs thanks to the use of a common copper network cable.
It finds application in various contexts: training, school, healthcare or corporate. Suitable for digital advertising, video surveillance systems via DVR, conference rooms, trade fair pavilions or commercial exhibitions and much more.
IDATA EX-HL81TYP can connect devices with HDMI output such as PCs, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
It finds application in various contexts: training, school, healthcare or corporate. Suitable for digital advertising, video surveillance systems via DVR, conference rooms, trade fair pavilions or commercial exhibitions and much more.
IDATA EX-HL81TYP can connect devices with HDMI output such as PCs, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables.
- Extender consisting of a local transmission unit with HDMI output and eight receivers; Distributes the audio/video signal from one HDMI source to eight HDMI displays simultaneously, using a Cat.6 or better network cable
- It can connect devices with HDMI output such as PCs, DVRs, Blue Ray players or other audio/video sources to HDMI displays using a network cable instead of expensive HDMI cables
- Extends the HDMI audio/video signal up to 70 meters; Supports video resolution up to 4K@30Hz; Supported transmission distance with Cat.6/6A/7 cable: 1080p@60Hz 70 meters; 4K@30Hz 40 meters
- With protection against electric discharge, lightning and overvoltage
- Dimensions: TX: 272.0 x 96.5 x 23.0 mm, 615g; RX: 75.0 x 80.0 x 18.0mm, 160g x8; Splitter and extender color: black
Specifications
Features
| 3D | No |
| Audio formats supported | LPCM/PCM |
| Bidirectional | Yes |
| Cable types supported | Cat6/Cat6a/Cat7 |
| Certification | EC, RoHS |
| HDCP | Yes |
| HDCP version | 1.4 |
| LED indicators | Yes |
| Material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 70 m |
| Product colour | Black |
| Supported graphics resolutions | 1024 x 768 (XGA)/1280 x 720 (HD 720)/1280 x 960/1366 x 768/1440 x 900 (WXGA+)/1680 x 1050 (WSXGA+)/1920 x 1080 (HD 1080)/800 x 600 (SVGA) |
| Supported video modes | 1080i/1080p/480i/480p/576i/576p/720p |
| Type | AV transmitter & receiver |
Operational conditions
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Packaging content
| Manual | Yes |
| Mounting kit | Yes |
Packaging data
| Quantity per pack | 9 pc(s) |
Ports & interfaces
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Connectivity technology | Wired |
| DC-in jack | Yes |
| HDMI in | 2 |
| HDMI version | 1.4 |
| Number of HDMI outputs | 8 |
| Remote (IR) input | 8 |
| Remote (IR) output | 8 |
| RJ-45 input ports | 8 |
| RJ-45 output ports | 8 |
Power
| Operating voltage | 12 V |
| Operating voltage (receiver) | 12 V |
| Operating voltage (transmitter) | 12 V |
| Power consumption (typical) | 12 W |
| Power source type | DC |
Vendor information
| Brand Name | Techly |
| Warranty | 1 |
Weight & dimensions
| Receiver dimensions (WxDxH) | 75 x 80 x 18 mm |
| Receiver weight | 160 g |
| Transmitter dimensions (WxDxH) | 272 x 96.5 x 23 mm |
| Transmitter weight | 615 g |
Product Details
1 Item
New
Data sheet
- 3D
- No
- HDCP
- Yes
- Number of HDMI outputs
- 8
- Operating voltage (transmitter)
- 12 V
- Operating voltage (receiver)
- 12 V
- Bidirectional
- Yes
- Fernbedienungseingang (IR)
- 8
- Montage Kits
- Yes
- DC-Eingangsbuchse
- Yes
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- Unterstützte Audioformate
- LPCM/PCM
- Konnektivitätstechnologie
- Wired
- Zertifizierung
- EC, RoHS
- Stromquellentyp
- DC
- Stromverbrauch (typisch)
- 12 W
- Maximum Auflösung
- 3840 x 2160 Pixel
- Unterstützte Videomodi
- 1080i/1080p/480i/480p/576i/576p/720p
- Betriebsspannung
- 12 V
- Maximum Übertragungsentfernung
- 70 m
- HDMI-Version
- 1.4
- Unterstützte Grafikauflösungen
- 1024 x 768 (XGA)/1280 x 720 (HD 720)/1280 x 960/1366 x 768/1440 x 900 (WXGA+)/1680 x 1050 (WSXGA+)/1920 x 1080 (HD 1080)/800 x 600 (SVGA)
- HDCP-Version
- 1.4
- Typ
- AV transmitter & receiver
- Brand Name
- Techly
- Warranty
- 1
- Betriebstemperatur (TT)
- -20 - 60 °C
- Lagertemperatur (TT)
- -30 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 90 %
- Menge pro Packung
- 9 Stück(e)
- Produktfarbe
- Black
- Material
- Metal
- RJ-45-Ausgangsports
- 8
- RJ-45-Eingangsports
- 8
- Unterstützte Kabeltypen
- Cat6/Cat6a/Cat7
- HDMI-Eingang
- 2
- Remote-Ausgang (IR).
- 8
- Empfängerabmessungen (BxTxH)
- 75 x 80 x 18 mm
- Senderabmessungen (BxTxH)
- 272 x 96.5 x 23 mm
- 3,5 mm (1/8 Zoll) heraus
- Yes
- 3,5 mm (1/8 Zoll) Zoll
- Yes
- Gewicht des Empfängers
- 160 g
- Sendergewicht
- 615 g
Specific References
- EAN13
- 8059018368505
- MPN
- IDATA EX-HL81TYP
