C1000-24T-4X-L-RFB
  • C1000-24T-4X-L-RFB
  • C1000-24T-4X-L-RFB

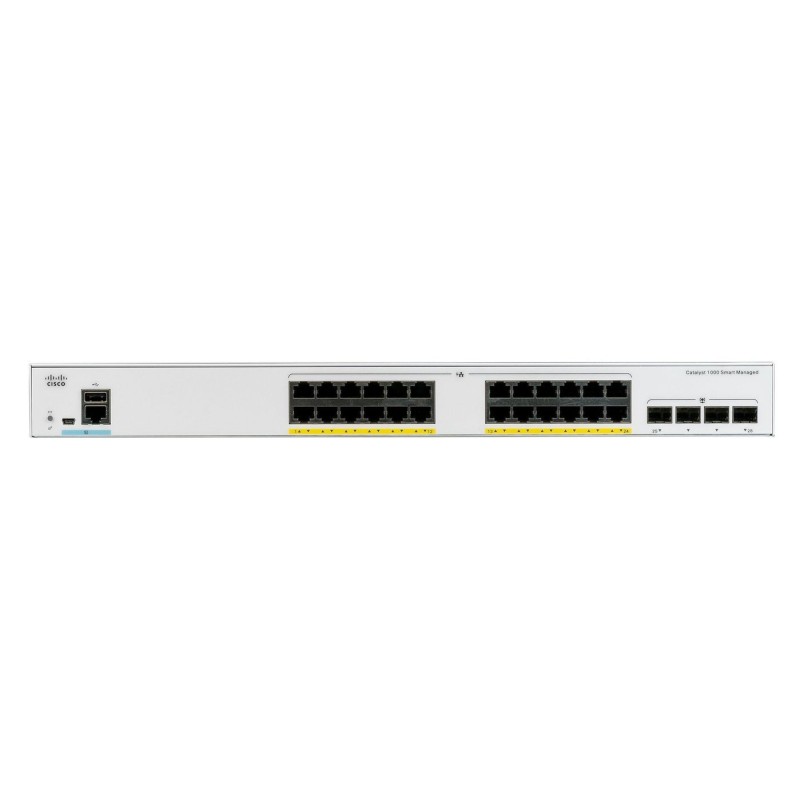

C1000-24T-4X-L-RFB

Cisco
Managed L2, 24 x 10/100/1000 Ethernet ports, 4 x 10G SFP+ uplinks, ARM7 800 MHz, 128 Gbit/s
640,0 CHF
Tasse incluse
592,0 CHF Tasse escluse
Consegna in 4-5 giorni
Quantità
Ultimi articoli in magazzino
1 Articolo

Descrizione
The Cisco Catalyst 1000-24T-4X-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
  • HARDWARE CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) Data ports, 4 SFP+ uplink ports
  • MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
  • SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
  • Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
  • PEACE OF MIND: Enhanced limited lifetime warranty

Specifiche

Data transmission

Forwarding rate41.67 Mpps
Jumbo frames10240
Jumbo frames supportYes
MAC address table16000 voci
Number of static routes16
Static routeYes
Switching capacity128 Gbit/s

Design

LED indicatorsYes
Market segmentBusiness
Product colourGrey

Logistics data

Products per master (outer) case1 pz
Quantity per pack1 pz

Management features

ARP inspectionYes
Configuring Location Settings (CLI)Yes
MIB supportY
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
Traffic classificationYes
Web-based managementYes

Multicast features

IPv4 multicast entries1024
IPv6 multicast entries1024
Multicast supportYes

Network

10G supportYes
Auto MDI/MDI-XYes
Broadcast storm controlYes
Ethernet LAN data rates100/1000/10000 Mbit/s
Full duplexYes
Link aggregationYes
Networking standardsIEEE 802.1ab/IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3ah/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u
Number of VLANs4094
Spanning tree protocolYes
VLAN supportYes

Operational conditions

Non-operating altitude0 - 4500 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)-5 - 50 °C
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C

Other features

Packaging contentC1000-24T-4X-L Switch, Accessory Kit, 1 printed document

Performance

Built-in processorYes
Flash memory256 MB
Internal memory512 MB
Mean time between failures (MTBF)2026793 h
Memory typeDRAM
Processor frequency800 MHz
Processor modelARM7

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/Mini-USB
Installed SFP+ modules quantity4
SFP+ module slots quantity4
USB 2.0 ports quantity1

Power

AC input frequency50 - 60 Hz
AC input voltage110 - 220 V
Power plug typeType C

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Security

Access Control List (ACL)Yes
AuthenticationWeb-based authentication
Authentication typeRADIUS
BPDU filtering/protectionYes
DHCP featuresDHCP snooping
IGMP entries1024
IGMP snoopingYes
Loop protectionYes
SSH/SSL supportYes

Technical details

Products per shipping (inner) case1 pz

Vendor information

Brand NameCisco
Warranty1
Dettagli del prodotto
1 Articolo
imesso a nuovo

Scheda tecnica

Auto MDI/MDI-X
Yes
Memoria flash
256 MB
Controllo Broadcast storm
Yes
Numero di VLA
4094
Caratteristiche DHCP
DHCP snooping
Ispezione ARP
Yes
Protezione/Filtro BPDU
Yes
Autenticazione
Web-based authentication
Numero di instradamenti statici
16
Instradamento statico
Yes
Contenuto della confezione
C1000-24T-4X-L Switch, Accessory Kit, 1 printed document
Voci IGMP
1024
Jumbo-Rahmen
10240
MAC-Adresstabelle
16000 Eintragungen
Unterstützung für Jumbo-Frames
Yes
Ebene wechseln
L2
Schaltertyp
Managed
Verkehrsklassifizierung
Yes
Webbasierte Verwaltung
Yes
Multicast-Unterstützung
Yes
Ethernet-LAN-Datenraten
100/1000/10000 Mbit/s
Link-Aggregation
Yes
Netzwerkstandards
IEEE 802.1ab/IEEE 802.1AX/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3ah/IEEE 802.3at/IEEE 802.3az/IEEE 802.3u
Spanning-Tree-Protokoll
Yes
Grundlegende Anzahl von RJ-45-Ethernet-Ports
24
Grundlegender Switching-RJ-45-Ethernet-Porttyp
Gigabit Ethernet (10/100/1000)
Konsolenport
RJ-45/Mini-USB
Stromversorgung über Ethernet (PoE)
No
Authentifizierungsart
RADIUS
IGMP-Schnüffelei
Yes
Zugriffskontrollliste (ACL)
Yes
Prozessormodell
ARM7
Prozessorfrequenz
800 MHz
Quality of Service (QoS)-Unterstützung
Yes
Anzahl der USB 2.0-Anschlüsse
1
MIB-Unterstützung
Y
Standorteinstellungen konfigurieren (CLI)
Yes
Anzahl der SFP+-Modulsteckplätze
4
SSH/SSL-Unterstützung
Yes
Weiterleitungstarif
41.67 Mpps
Schleifenschutz
Yes
Mean time between failures (MTBF)
2026793 h
Capacità di frenata
128 Gbit/s
LED-Anzeigen
Yes
AC-Eingangsfrequenz
50 - 60 Hz
AC-Eingangsspannung
110 - 220 V
Speichertyp
DRAM
Vollduplex
Yes
Eingebauter Prozessor
Yes
Netzsteckertyp
Type C
Betriebshöhe
0 - 3000 m
Nichtbetriebshöhe
0 - 4500 m
Produkte pro Master (Außen)-Case
1 Stück(e)
10G-Unterstützung
Yes
VLAN-Unterstützung
Yes
Produkte pro (innerem) Versandkarton
1 Stück(e)
Brand Name
Cisco
Warranty
1
Betriebstemperatur (TT)
-5 - 50 °C
Lagertemperatur (TT)
-25 - 70 °C
Relative Luftfeuchtigkeit bei Lagerung (HH)
5 - 95 %
Relative Luftfeuchtigkeit im Betrieb (HH)
5 - 90 %
Menge pro Packung
1 Stück(e)
Interner Speicher
512 MB
Produktfarbe
Grey
Market segment
Business
Anzahl der installierten SFP+-Module
4
IPv4-Multicast-Einträge
1024
IPv6-Multicast-Einträge
1024

Riferimenti Specifici

MPN
C1000-24T-4X-L-RFB
