337,7 CHF
tasse incl.
312,4 CHF
tasse escl.
In magazzino
145,3 CHF
tasse incl.
134,4 CHF
tasse escl.
In magazzino
Descrizione

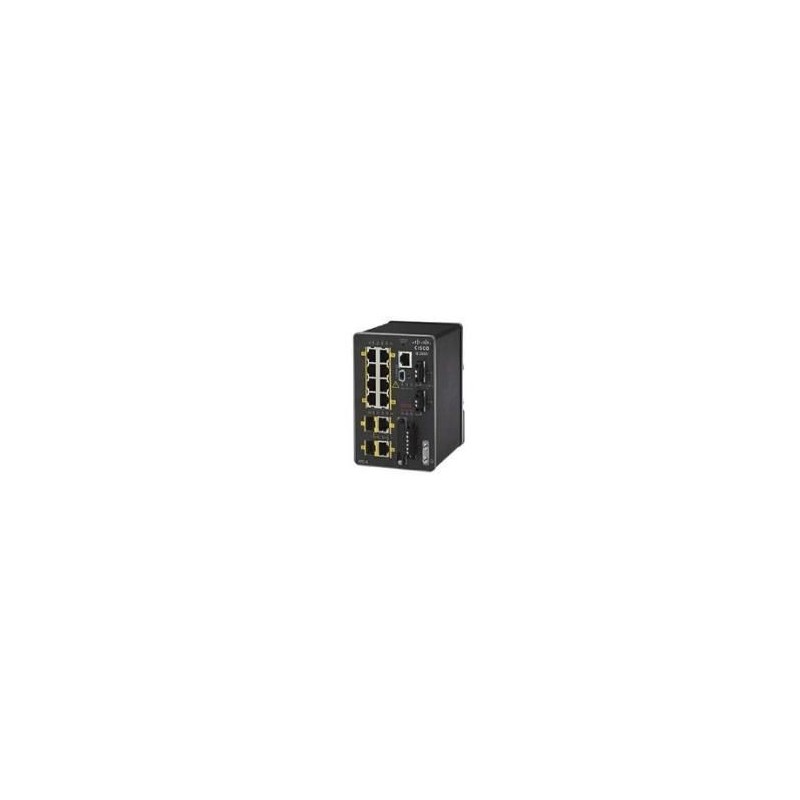

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, industrially ruggedized access switches. IE 2000 series provide customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The newest IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:
- 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor
- 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink
- Dual-input DC power supply, alarm relays, DIN rail mount
- Conformal coating available
- Swappable SD flash card (for configuration storage), mini-USB connector, and RS-232 console port
- Industrial environmental compliance and certifications
- Industrial partner applications: EtherNet/IP and PROFINET
- Primary Applications and Features
- Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance
- Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users
- Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence
- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and CiscoWorks LAN Management Solution (LMS)
- Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments
Cisco IE 2000 Series are designed for low cost, low ports, and small sizes:
- 4, 8, or 16 10/100Base-T Ethernet ports fixed configurations with compact form factor
- 2x Gigabit Combo ports, SFP (100MB and 1G) or RJ45 uplink
- Dual-input DC power supply, alarm relays, DIN rail mount
- Conformal coating available
- Swappable SD flash card (for configuration storage), mini-USB connector, and RS-232 console port
- Industrial environmental compliance and certifications
- Industrial partner applications: EtherNet/IP and PROFINET
- Primary Applications and Features
- Easy deployment: Zero-touch discovery using DHCP, express setup, fast bootup time (60 sec) to help migrating to Ethernet environment without resistance
- Security: Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users
- Resiliency: Flex links for fast recovery, Cisco REP protocol for fast convergence
- Manageability: Auto SmartPort, Web Device Manager, Telnet, HTTPS access, SNMP, CNA and CiscoWorks LAN Management Solution (LMS)
- Industrial automation protocols: Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments
Specifiche
Certificates
| Certification | FCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS |
Data transmission
| MAC address table | 8000 voci |
| Packet buffer memory | 2 MB |
| Throughput | 6.5 Mpps |
Design
| Product colour | Black |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1 |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Traffic shaping | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
| Number of multicast groups filtered | 255 |
Network
| 10G support | No |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x |
| Number of VLANs | 255 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Non-operating altitude | 0 - 4572 m |
| Operating altitude | 0 - 4572 m |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -40 - 85 °C |
Performance
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Mean time between failures (MTBF) | 374052 h |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Fast Ethernet (copper) ports quantity | 8 |
| Power connector | DC-in jack |
| USB 2.0 ports quantity | 1 |
Power
| AC input voltage | 110 - 220 V |
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Protocols
| Management protocols | SNMPv3 |
Security
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | FIPS 140-2/SSH-2 |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Cisco |
| Warranty | 3 Month(s) |
Dettagli del prodotto
2026-05-25
imesso a nuovo
Scheda tecnica
- Memoria flash
- 64 MB
- Sicurezza
- UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, CB IEC 60950-1, NOM NOM-019-SCF1
- Controllo Broadcast storm
- Yes
- Numero di VLA
- 255
- Caratteristiche DHCP
- DHCP server
- Protezione/Filtro BPDU
- Yes
- Routing IP
- Yes
- Numero di gruppi multicast filtrati
- 255
- MAC-Adresstabelle
- 8000 Eintragungen
- Ebene wechseln
- L2
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x
- Spanning-Tree-Protokoll
- Yes
- Anzahl Combo-SFP-Ports
- 2
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 8
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Fast Ethernet (10/100)
- Stromversorgung über Ethernet (PoE)
- No
- Verwaltungsprotokolle
- SNMPv3
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- MAC-Adressfilterung
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Anzahl der USB 2.0-Anschlüsse
- 1
- Verkehrsformung
- Yes
- Durchsatz
- 6.5 Mpps
- Paketpufferspeicher
- 2 MB
- SSH/SSL-Unterstützung
- Yes
- Mean time between failures (MTBF)
- 374052 h
- Zertifizierung
- FCC, IEC/EN 55022A, VCCI, AS/NZS CISPR 22, CISPR 11, CISPR 22, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-64, EN 61373, UL/CSA, CE, AS/NZ RCM, BSMI, KCC, ANATEL, RoHS
- AC-Eingangsspannung
- 110 - 220 V
- Stromverbrauch (typisch)
- 15 W
- Sicherheitsalgorithmen
- FIPS 140-2/SSH-2
- Stecker
- DC-in jack
- Vollduplex
- Yes
- Betriebshöhe
- 0 - 4572 m
- Nichtbetriebshöhe
- 0 - 4572 m
- 10G-Unterstützung
- No
- VLAN-Unterstützung
- Yes
- Brand Name
- Cisco
- Warranty
- 3 Month(s)
- Betriebstemperatur (TT)
- -40 - 70 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Interner Speicher
- 256 MB
- Produktfarbe
- Black
- Anzahl Fast Ethernet (Kupfer) Ports
- 8
Riferimenti Specifici
- ean13
- 5711783482864
- MPN
- IE-2000-8TC-L-RFB
