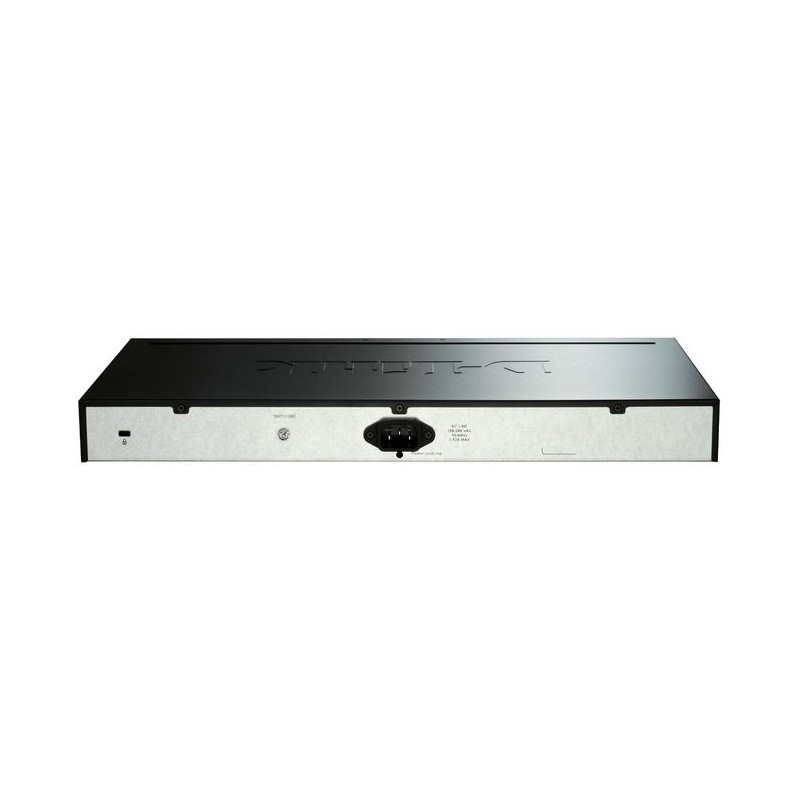

DGS-1510-28P/E - 8226
28-Port Gigabit Stackable SmartPro PoE Switch including 2 SFP ports and 2 x 10G SFP+ ports
Descrizione
28-Port Gigabit Stackable SmartPro PoE Switch including 2 SFP ports and 2 x 10G SFP+ ports
- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 2 x Mini-GBIC SFP ports
- 2 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Stacking Bandwidth of 40Gb. Topology Linear or Ring.
- Support IEEE 802.3af and 802.3at (Support legacy mode)
- Up to 15.4W per port (PoE), Up to 30W per port (PoE+)
- 193W total PoE power budget
- Auto discover the connection of PD and immediately provides power
- AT: Auto disable port if the output power is over 31.2W(+/-2%)
- AF: Auto disable port if the output power is over 16.2W(+/-2%)
- Auto disable port if the port overload detection range (ICUT parameter) is 50V~57V.
- D-Link Green 3.0, 802.3az
- Virtual stacking
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequare Engine
- Smart Console Utility, web based management, compact CLI
- D-View 6.0 support
- 19" Rackmount Installation
- 24 x 10/100/1000Mbps Auto-Negotiating Ports
- 2 x Mini-GBIC SFP ports
- 2 x 10G SFP+ ports
- Physical Stacking up to 6 units per stack. Stacking Bandwidth of 40Gb. Topology Linear or Ring.
- Support IEEE 802.3af and 802.3at (Support legacy mode)
- Up to 15.4W per port (PoE), Up to 30W per port (PoE+)
- 193W total PoE power budget
- Auto discover the connection of PD and immediately provides power
- AT: Auto disable port if the output power is over 31.2W(+/-2%)
- AF: Auto disable port if the output power is over 16.2W(+/-2%)
- Auto disable port if the port overload detection range (ICUT parameter) is 50V~57V.
- D-Link Green 3.0, 802.3az
- Virtual stacking
- Static route
- IPv6 Management/Ready Logo
- Half-/Full-Duplex, auto-negotiation, Auto MDI/MDIX
- IEEE 802.3x Flow Control
- 802.3ad Link Aggregation
- Asymmetric VLAN, Auto Voice VLAN, GVRP
- 802.1p priority queues
- MAC/IP filtering
- MAC/IP-based ACL
- 802.1X port-base Access Control, Port Security, traffic segmentation
- D-Link Safequare Engine
- Smart Console Utility, web based management, compact CLI
- D-View 6.0 support
- 19" Rackmount Installation
- 28-Port Gigabit Stackable SmartPro PoE Switch including 2 SFP ports and 2 x 10G SFP+ ports
Specifiche
Data transmission
| Forwarding rate | 68.45 Mpps |
| Jumbo frames support | Yes |
| MAC address table | 16000 voci |
| Number of static routes | 512 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | Yes |
| Switching capacity | 92 Gbit/s |
Design
| Certification | CE, FCC, C-Tick, VCCI, BSMI, CCC |
| LED indicators | Activity/Link/PoE/Power |
| Number of fans | 2 ventola(e) |
| Product colour | Black |
| Rack mounting | Yes |
| Safety | cUL, CB |
| Stackable | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Cable types supported | Cat5/Cat5e |
| Flow control support | Yes |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u/IEEE 802.3x |
| Port mirroring | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 813.967 BTU/h |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
Packaging content
| Manual | Yes |
Performance
| Noise level | 46.4 dB |
| Physical stacking (units) | 6 |
| Virtual stacking (units) | 32 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| SFP+ module slots quantity | 2 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 238.7 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client/DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
Technical details
| Master (outer) cases per pallet (air) | 40 pz |
| Master (outer) cases per pallet (sea) | 40 pz |
| Pallet gross length | 110 cm |
| Pallet gross weight (air) | 533900 g |
| Pallet gross weight (sea) | 533900 g |
| Pallet gross width | 120 cm |
| Pallet height (air) | 205 cm |
| Pallet height (sea) | 205 cm |
| Products per pallet (air) | 120 pz |
| Products per pallet (sea) | 120 pz |
| Products per shipping (inner) case | 3 pz |
| Shipping (inner) case gross weight | 12885 g |
| Shipping (inner) case height | 38.3 cm |
| Shipping (inner) case length | 52.9 cm |
| Shipping (inner) case net weight | 9270 g |
| Shipping (inner) case width | 29.6 cm |
Vendor information
| Brand Name | D-Link |
Dettagli del prodotto
8226
2026-04-30
Nuovo
Scheda tecnica
- Auto MDI/MDI-X
- Yes
- Registro evento di sistema
- Yes
- Sicurezza
- cUL, CB
- Impilabile
- Yes
- Controllo Broadcast storm
- Yes
- Caratteristiche DHCP
- DHCP client/DHCP server
- Altezza del pallet (aria)
- 205 cm
- Dissipazione del calore
- 813.967 BTU/h
- Numero di instradamenti statici
- 512
- MAC-Adresstabelle
- 16000 Eintragungen
- Unterstützung für Jumbo-Frames
- Yes
- Anzahl Fans
- 2 Lüfter
- Gestellmontage
- Yes
- Ebene wechseln
- L3
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3u/IEEE 802.3x
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Gesamtbudget für Power over Ethernet (PoE)
- 193 W
- Stromversorgung über Ethernet (PoE)
- Yes
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- MAC-Adressfilterung
- Yes
- Quality of Service (QoS)-Unterstützung
- Yes
- Paketpufferspeicher
- 1.5 MB
- Speichern und weiterleiten
- Yes
- Portspiegelung
- Yes
- Anzahl der SFP+-Modulsteckplätze
- 2
- SSH/SSL-Unterstützung
- Yes
- Weiterleitungstarif
- 68.45 Mpps
- Capacità di frenata
- 92 Gbit/s
- LED-Anzeigen
- Activity/Link/PoE/Power
- Geräuschpegel
- 46.4 dB
- Handbuch
- Yes
- Zertifizierung
- CE, FCC, C-Tick, VCCI, BSMI, CCC
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 238.7 W
- Stecker
- DC-in jack
- Vollduplex
- Yes
- Bruttobreite der Palette
- 120 cm
- Bruttolänge Palette
- 110 cm
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Produkte pro (innerem) Versandkarton
- 3 Stück(e)
- Brand Name
- D-Link
- Betriebstemperatur (TT)
- -5 - 50 °C
- Lagertemperatur (TT)
- -20 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 95 %
- Produktfarbe
- Black
- Unterstützte Kabeltypen
- Cat5/Cat5e
- Anzahl der SFP-Modulsteckplätze
- 2
- Statische Hafensicherheit
- Yes
- Auto-Negotiation
- Yes
- Automatisches Lernen von MAC-Adressen wird unterstützt
- Yes
- Anzahl der Power over Ethernet (PoE)-Anschlüsse
- 24
- Head-of-Line (HOL)-Blockierung
- Yes
- Physisches Stapeln (Einheiten)
- 6
- Bruttogewicht des (inneren) Versandkartons
- 12885 g
- Höhe des Versandkartons (innen)
- 38.3 cm
- Versand (innere) Kartonlänge
- 52.9 cm
- Versandkartonbreite (innen)
- 29.6 cm
- Virtuelles Stapeln (Einheiten)
- 32
- Master-(Außen-)Kartons pro Palette (Luft)
- 40 Stück(e)
- Nettogewicht des Versandkoffers (Innenkoffer)
- 9270 g
- Produkte pro Palette (See)
- 120 Stück(e)
- Palettenhöhe (Meer)
- 205 cm
- Produkte pro Palette (Luft)
- 120 Stück(e)
- Bruttogewicht Palette (Luft)
- 533900 g
- Bruttogewicht Palette (See)
- 533900 g
- Master-(Außen-)Kartons pro Palette (See)
- 40 Stück(e)
Riferimenti Specifici
- Codice a barre UPC
- 790069467936
- MPN
- DGS-1510-28P/E
16 altri prodotti della stessa categoria:
Marca: Cisco
CBS250-48T-4G-EU-RFB
Network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Silver Cisco CBS250-48T-4G-EU, Managed, L2/L3, Gigabit Ethernet
459,4 CHF
tasse incl.
425,0 CHF
tasse escl.
Verrà ordinato per te
Riferimento: W127016771
Marca: MikroTik
CSS610-8P-2S+IN
Cloud Smart Switch 610-8P-2S+IN with 8 x Gigabit 802.3af/at PoE-out ports, 2 x SFP+ cages, SwOS, desktop case, PSU
323,8 CHF
tasse incl.
299,5 CHF
tasse escl.
In magazzino
Riferimento: W128272268
Marca: Cisco
CBS220-24P-4X-EU
Cbs220-24P-4X Managed L2 Gigabit Ethernet (10/100/1000) Power Over Ethernet (Poe) White
1.073,3 CHF
tasse incl.
992,9 CHF
tasse escl.
In magazzino
Marca: D-Link
DXS-1210-28S
D-Link DXS-1210-28S, Gestito, L2/L3, 10G Ethernet (100/1000/10000), Montaggio rack, 1U
3.369,4 CHF
tasse incl.
3.116,9 CHF
tasse escl.
Verrà ordinato per te
168,9 CHF
tasse incl.
156,2 CHF
tasse escl.
In magazzino
991,5 CHF
tasse incl.
917,2 CHF
tasse escl.
Verrà ordinato per te
Riferimento: MX-EX2028XXA-E
Marca: Cambium Networks
MX-EX2028XXA-E
cnMatrix EX2028 Intelligent Ethernet Switch 24 1G and 4 SFP+ fiber ports - EU power cord
1.691,4 CHF
tasse incl.
1.564,7 CHF
tasse escl.
Verrà ordinato per te
Riferimento: WS-C3750G-48PS-E
Marca: Cisco
WS-C3750G-48PS-E-RFB
Catalyst 3750 48 10/100/1000 ports & 4 SFP-based Gigabit Ethernet ports, PoE, EMI
1.026,8 CHF
tasse incl.
949,9 CHF
tasse escl.
Verrà ordinato per te
Marca: D-Link
DIS-100E-8W
D-Link DIS-100E-8W, Non gestito, L2, Fast Ethernet (10/100), Full duplex, Montaggio rack, Montabile a parete
389,2 CHF
tasse incl.
360,0 CHF
tasse escl.
Verrà ordinato per te
789,3 CHF
tasse incl.
730,2 CHF
tasse escl.
In magazzino
1.816,9 CHF
tasse incl.
1.680,8 CHF
tasse escl.
Verrà ordinato per te
1.840,2 CHF
tasse incl.
1.702,3 CHF
tasse escl.
Verrà ordinato per te
123,7 CHF
tasse incl.
114,4 CHF
tasse escl.
In magazzino
80,8 CHF
tasse incl.
74,7 CHF
tasse escl.
Verrà ordinato per te
696,1 CHF
tasse incl.
643,9 CHF
tasse escl.
In magazzino
71,2 CHF
tasse incl.
65,9 CHF
tasse escl.
Verrà ordinato per te
Potrebbe anche piacerti
28-Port Gigabit Stackable SmartPro PoE Switch including 2 SFP ports and 2 x 10G SFP+ ports
