394,2 CHF
tasse incl.
364,7 CHF
tasse escl.
In magazzino
168,5 CHF
tasse incl.
155,9 CHF
tasse escl.
In magazzino
Descrizione

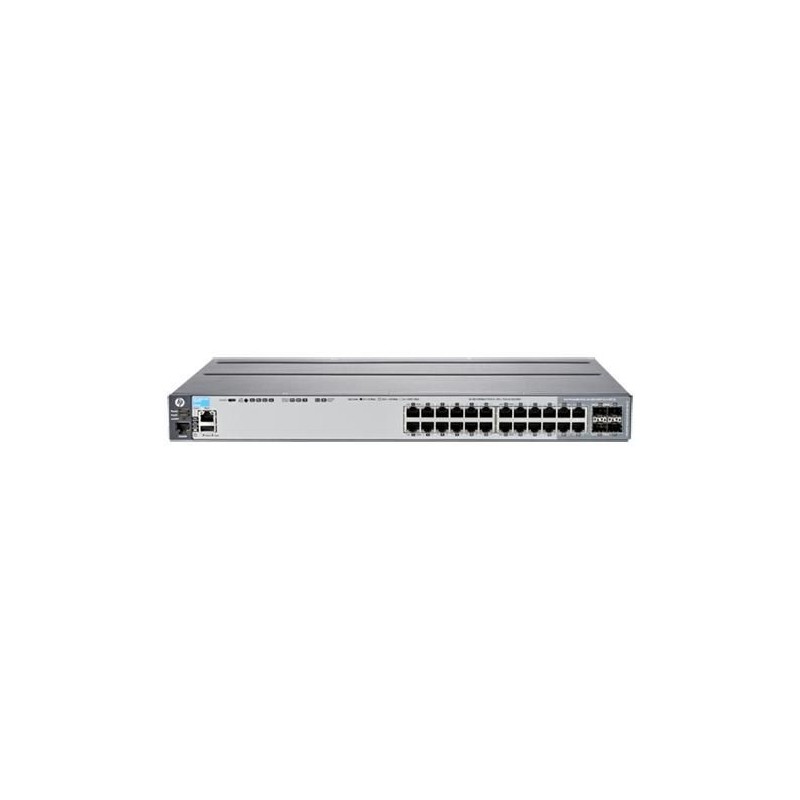

The HP 2920 Switch Series provides security, scalability and ease of use for enterprise edge, SMB and branch office access layer deployments. A powerful HP Networking ASIC delivers low latency, more packet buffering, and adaptive power consumption to this robust Basic Layer 3 switch that supports modular stacking, 10GbE, RIP routing, PoE+, ACLs, sFlow and IPv6.
The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.
The HP 2920 Switch Series can be managed with the optional HP Intelligent Management Center (IMC) software for a single view of your entire network and is ready for the Software-defined Network (SDN) with OpenFlow support.
Specifiche
Data transmission
| Latency (1 Gbps) | 3.3 µs |
| Latency (10 Gbps) | 3.3 µs |
| Latency (10-100 Mbps) | 9 µs |
| MAC address table | 16000 voci |
| Packet buffer memory | 11.25 MB |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
Design
| Form factor | 1U |
| Product colour | Grey |
| Rack mounting | Yes |
| Stackable | Yes |
Management features
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
Multicast features
| Multicast support | Yes |
Network
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T |
| Flow control support | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Link aggregation | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Operational conditions
| Heat dissipation | 198 BTU/h |
| Operating relative humidity (H-H) | 15 - 95 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage relative humidity (H-H) | 15 - 95 % |
| Storage temperature (T-T) | -40 - 70 °C |
Optical fiber
| Switching optical modules type | 40 Gigabit Ethernet |
Performance
| Built-in processor | Yes |
| Flash memory | 1024 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM |
| Processor frequency | 625 MHz |
| Processor model | ARM11 |
| Virtual stacking (units) | 4 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 58 W |
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
Security
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
Vendor information
| Brand Name | Hewlett Packard Enterprise |
| Warranty | 1 |
Dettagli del prodotto
15 Articoli
imesso a nuovo
Scheda tecnica
- Auto MDI/MDI-X
- Yes
- Memoria flash
- 1024 MB
- Impilabile
- Yes
- Caratteristiche DHCP
- DHCP server
- Dissipazione del calore
- 198 BTU/h
- Routing IP
- Yes
- MAC-Adresstabelle
- 16000 Eintragungen
- Gestellmontage
- Yes
- Ebene wechseln
- L3
- Schaltertyp
- Managed
- Webbasierte Verwaltung
- Yes
- Multicast-Unterstützung
- Yes
- Kupfer-Ethernet-Verkabelungstechnologie
- 1000BASE-T/100BASE-TX/10BASE-T
- Link-Aggregation
- Yes
- Netzwerkstandards
- IEEE 802.3/IEEE 802.3ab/IEEE 802.3u
- Spanning-Tree-Protokoll
- Yes
- Unterstützung der Flusskontrolle
- Yes
- Grundlegende Anzahl von RJ-45-Ethernet-Ports
- 24
- Grundlegender Switching-RJ-45-Ethernet-Porttyp
- Gigabit Ethernet (10/100/1000)
- Stromversorgung über Ethernet (PoE)
- No
- IGMP-Schnüffelei
- Yes
- Zugriffskontrollliste (ACL)
- Yes
- Prozessormodell
- ARM11
- Prozessorfrequenz
- 625 MHz
- Quality of Service (QoS)-Unterstützung
- Yes
- Inklusive Netzteil
- Yes
- Durchsatz
- 95.2 Mpps
- Paketpufferspeicher
- 11.25 MB
- Ratenbegrenzung
- Yes
- SSH/SSL-Unterstützung
- Yes
- Capacità di frenata
- 128 Gbit/s
- Formfaktor
- 1U
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 58 W
- Speichertyp
- SDRAM
- Vollduplex
- Yes
- Eingebauter Prozessor
- Yes
- 10G-Unterstützung
- Yes
- VLAN-Unterstützung
- Yes
- Brand Name
- Hewlett Packard Enterprise
- Warranty
- 1
- Betriebstemperatur (TT)
- 0 - 55 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 15 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 15 - 95 %
- Interner Speicher
- 512 MB
- Produktfarbe
- Grey
- Automatische Erkennung
- Yes
- Anzahl der installierten SFP-Module
- 0
- Anzahl der installierten SFP+-Module
- 0
- Latenz (1 Gbit/s)
- 3.3 µs
- Latenz (10 Gbit/s)
- 3.3 µs
- Umschalten des optischen Modultyps
- 40 Gigabit Ethernet
- Virtuelles Stapeln (Einheiten)
- 4
- Latenz (10-100 Mbit/s)
- 9 µs
Riferimenti Specifici
- ean13
- 5704174168997
- MPN
- J9726A-RFB
