CL25-550WH1

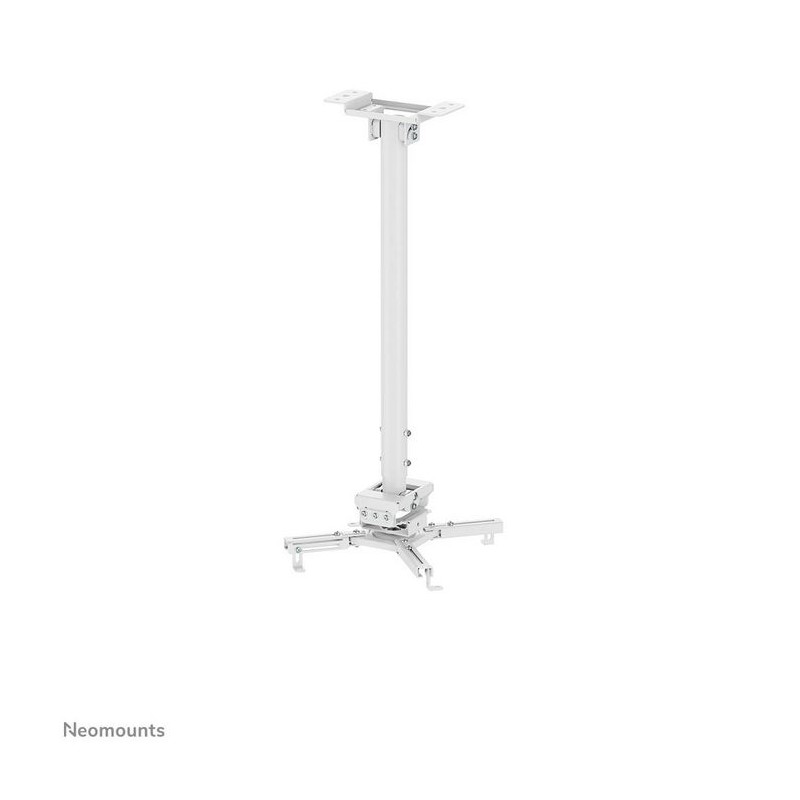

CL25-550WH1, Universal Projector Ceiling Mount, Max 35 kg, Full Motion, H:74,5 - 114,5 cm, Easy Install-model, -White
Descrizione
The Neomounts CL25-550WH1 is a universal projector ceiling mount. Because of the high weight capacity up to 35 kg and the various adjustment options, this projector ceiling mount is widely applicable. The CL25-550WH1 has four extendable arms and the versatile tilt (+20°, -20°), rotate (360°) and swivel (+8°, -8°) technology, provides optimal placement of the projection on any canvas, screen or wall. The support is also adjustable in height from 74,5 to 114,5 cm.
The Neomounts CL25-550WH1 is equipped with an Easy-release system, which highly eases installation; (de)installation of the projector to the projector mount can be done in an instant and by only one person. In addition, the round pole allows easy installation to a suspended ceiling. Finally, the pole of the Neomounts projector mount can be tilted on the ceiling side, so that installation against a sloped ceiling is effortless. The fixation of the mount itself is sturdy and firm, therefore vibration free.
The cable management system of the CL25-550WH1 ensures the cables are neatly concealed, because they are routed through the pole of the projector ceiling mount.
The Neomounts CL25-550WH1 is equipped with an Easy-release system, which highly eases installation; (de)installation of the projector to the projector mount can be done in an instant and by only one person. In addition, the round pole allows easy installation to a suspended ceiling. Finally, the pole of the Neomounts projector mount can be tilted on the ceiling side, so that installation against a sloped ceiling is effortless. The fixation of the mount itself is sturdy and firm, therefore vibration free.
The cable management system of the CL25-550WH1 ensures the cables are neatly concealed, because they are routed through the pole of the projector ceiling mount.
Specifiche
Logistics data
| Master (outer) case gross weight | 20600 g |
| Master (outer) case height | 43 cm |
| Master (outer) case length | 28.5 cm |
| Master (outer) case net weight | 14800 g |
| Master (outer) case width | 73.5 cm |
| Products per master (outer) case | 4 pz |
| Products per pallet (EU) | 48 pz |
Performance
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment range | 745 - 1145 mm |
| Housing material | Steel |
| Maximum weight capacity | 35 kg |
| Mounting type | Ceiling |
| Product colour | White |
| Rotating | Yes |
| Safety lock | Yes |
| Swivel angle range | -8 - 8 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -20 - 20 ° |
Technical details
| Warranty period | 5 anno/i |
Vendor information
| Brand Name | Neomounts |
| Warranty | 5 |
Weight & dimensions
| Package net weight | 4900 g |
Dettagli del prodotto
1 Articolo
Nuovo
Scheda tecnica
- Angolo di rotazione
- -8 - 8 °
- Maximale Traglast
- 35 kg
- Durata della garanzia
- 5 Jahr(e)
- Produkte pro Palette (EU)
- 48 Stück(e)
- Produkte pro Master (Außen)-Case
- 4 Stück(e)
- Befestigungsart
- Ceiling
- Drehwinkel
- 360 °
- Gehäusematerial
- Steel
- Höhenverstellbereich
- 745 - 1145 mm
- Höhenverstellung
- Yes
- Neigungswinkelbereich
- -20 - 20 °
- Brand Name
- Neomounts
- Warranty
- 5
- Produktfarbe
- White
- Kabelmanagement
- Yes
- Master (äußere) Gehäusebreite
- 73.5 cm
- Master (äußere) Gehäusehöhe
- 43 cm
- Master (äußere) Gehäuselänge
- 28.5 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 20600 g
- Nettogewicht des Pakets
- 4900 g
- Nettogewicht des (äußeren) Hauptkoffers
- 14800 g
- Inclinazione regolabile
- Sì
- Girevole
- Sì
- Sicherheitsschloss
- Yes
- Rotating
- Yes
Riferimenti Specifici
- ean13
- 8721246340621
- MPN
- CL25-550WH1
