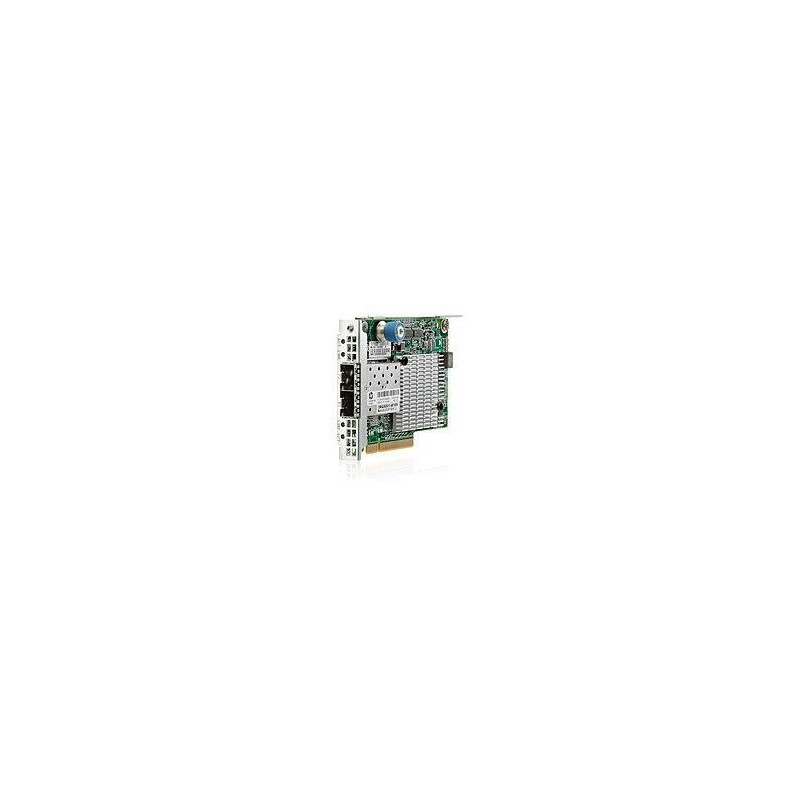

647581-B21
  • 647581-B21

647581-B21 - 647581-B21 , 649869-001, 649869-001

647581-B21 , 649869-001, 649869-001
2 Ports, SFP+, PCIe 2.0 x8, 10Gb/s, 256MB, 12W
280,4 CHF
Tasse incluse
259,4 CHF Tasse escluse
Consegna in pochi giorni
Quantità
Verrà ordinato per te

Descrizione
The HP Ethernet 10Gb 2-port 530FLR-SFP+ adapter features the next generation, single chip 10GbE solution from Broadcom in a FlexibleLOM form factor designed for select HP ProLiant Gen8 rack servers. The HP 530FLR dual-port design with a total aggregate throughput of 20Gb meets the needs for customers desiring high bandwidth. The HP 530FLR supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors Technology enhances server performance while reducing energy use and expense.

Single-chip, dual-port 10Gb Ethernet Flexible LOM designed for select HP ProLiant Gen8 rack servers.

20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate) to provide the network performance needed to improve response times and alleviate bottlenecks for the most demanding workloads in next generation data centers. Comprehensive stateless offloads to optimize host efficiency and VM density by leaving host CPU available for other duties. Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Support for MSI/MSI-X to provide performance benefits for multi-core servers by load balancing interrupts between CPUs/cores. Stateful hardware offload for TCP/IP: TCP Offload Engine (TOE).

Specifiche

Design

CertificationBSMI, CNS13438 (2006) Class EN55022:2006+A12007 class A/CE/EN 60590/EN55022:2006 + A1:2007 Class A/EN55024:1998+A1:2011+A2/EN61000-3-2:2006, EN61000-3-3:2008/FCC Part 15 Class A/ICES=--3, Issue 4/KN22 Class A, KN24/UL/cUL/VCCI V3 (2010.04) Class A
ChipsetBroadcom BCM57810S
InternalYes
LED indicatorsYes
Product colourGrey

Network

Ethernet LANYes
Full duplexYes
Jumbo frames supportYes
Maximum data transfer rate40000 Mbit/s
Networking standardsIEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3x
Wi-FiNo

Operational conditions

Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 55 °C

Other features

Connector(s)SFP+
Data transfer rate10 Gbit/s
Internal memory256 MB
Networking features10G
Ports quantity2
Wireless connectionNo

Ports & interfaces

Compatible memory cardsNot supported
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet

Power

Power consumption (typical)12 W

System requirements

Compatible operating systemsRed Hat Enterprise Linux 5.x/6.0/SLES 10/11/Solaris 10/VMware 4.0/4.1/Windows Server 2008, Server 2008R2, HPC Server 2008 32/64-bit/Windows Server Hyper-V

Vendor information

Brand NameHewlett Packard Enterprise
Warranty1
Dettagli del prodotto
647581-B21 , 649869-001, 649869-001
2026-04-07
Nuovo

Scheda tecnica

Particolarità networking
10G
Unterstützung für Jumbo-Frames
Yes
Netzwerkstandards
IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3x
Maximum Datenübertragungsrate
40000 Mbit/s
Wi-Fi
No
LED-Anzeigen
Yes
Ethernet-LAN
Yes
Konnektivitätstechnologie
Wired
Zertifizierung
BSMI, CNS13438 (2006) Class EN55022:2006+A12007 class A/CE/EN 60590/EN55022:2006 + A1:2007 Class A/EN55024:1998+A1:2011+A2/EN61000-3-2:2006, EN61000-3-3:2008/FCC Part 15 Class A/ICES=--3, Issue 4/KN22 Class A, KN24/UL/cUL/VCCI V3 (2010.04) Class A
Stromverbrauch (typisch)
12 W
Kompatible Speicherkarten
Not supported
Chipsatz
Broadcom BCM57810S
Stecker
SFP+
Vollduplex
Yes
Kompatible Betriebssysteme
Red Hat Enterprise Linux 5.x/6.0/SLES 10/11/Solaris 10/VMware 4.0/4.1/Windows Server 2008, Server 2008R2, HPC Server 2008 32/64-bit/Windows Server Hyper-V
Ports Menge
2
Schnittstelle
Ethernet
Brand Name
Hewlett Packard Enterprise
Warranty
1
Betriebstemperatur (TT)
0 - 55 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 90 %
Datenübertragungsrate
10 Gbit/s
Intern
Yes
Interner Speicher
256 MB
Host-Schnittstelle
PCI Express
Produktfarbe
Grey
Kabellose Verbindung
No

Riferimenti Specifici

ean13
5711045427299
MPN
647581-B21
