260,4 CHF
tasse incl.
240,9 CHF
tasse escl.
In magazzino
106,8 CHF
tasse incl.
98,8 CHF
tasse escl.
In magazzino
Descrizione

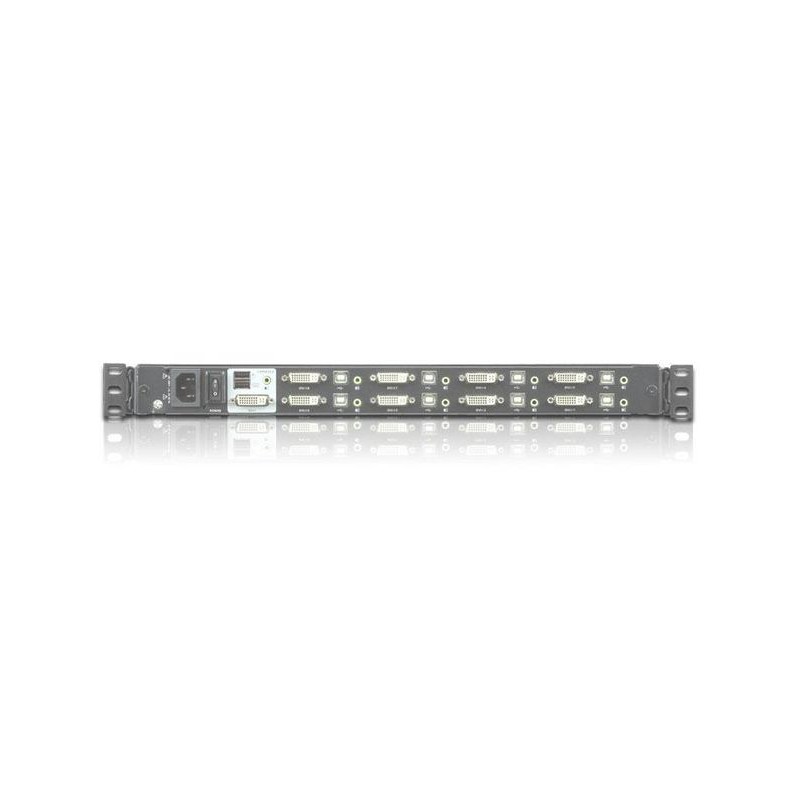

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
Specifiche
Design
| Housing material | Metal/Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
Display
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 17.3 " |
| On Screen Display (OSD) | Yes |
Logistics data
| Master (outer) case gross weight | 16580 g |
| Master (outer) case height | 13.5 cm |
| Master (outer) case length | 82.5 cm |
| Master (outer) case net weight | 13500 g |
| Master (outer) case width | 66 cm |
| Products per master (outer) case | 1 pz |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Manual | Yes |
| Quick installation guide | Yes |
Performance
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 Pixel |
| Scan interval | 1/255 s |
Ports & interfaces
| Console ports | 3.5mm headphone/DVI-I/USB A |
| Console USB ports quantity | 2 |
| DVI-I ports quantity | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Video port type | DVI-I |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input voltage | 100 - 240 V |
| Power source | AC |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Dettagli del prodotto
CL6708MW
2 Articoli
Nuovo
Scheda tecnica
- Gestellmontage
- Yes
- Bildschirmanzeige (OSD)
- Yes
- Eingangsspannung
- 100 - 240 V
- Anzeige
- LCD
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Maximum Auflösung
- 1920 x 1200 Pixel
- Anzahl der DVI-I-Anschlüsse
- 8
- Eingebautes Display
- Yes
- Produkte pro Master (Außen)-Case
- 1 Stück(e)
- Schnellinstallationsanleitung
- Yes
- Diagonale anzeigen
- 17.3 "
- Gehäusematerial
- Metal/Plastic
- Anzahl der kontrollierten Computer
- 8
- Anzahl der USB 2.0 Typ-B-Anschlüsse
- 8
- Anzahl der USB-Anschlüsse der Konsole
- 2
- Konsolenports
- 3.5mm headphone/DVI-I/USB A
- Mausanschlusstyp
- USB
- Typ des Tastaturanschlusses
- USB
- Typ des Videoanschlusses
- DVI-I
- Energiequelle
- AC
- HD-Typ
- WUXGA
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 80 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Produktfarbe
- Black
- Master (äußere) Gehäusebreite
- 66 cm
- Master (äußere) Gehäusehöhe
- 13.5 cm
- Master (äußere) Gehäuselänge
- 82.5 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 16580 g
- Nettogewicht des (äußeren) Hauptkoffers
- 13500 g
- Scan-Intervall
- 1/255 s
Riferimenti Specifici
- ean13
- 5715328143500
- MPN
- CL6708MW-ATA-XG
