Description

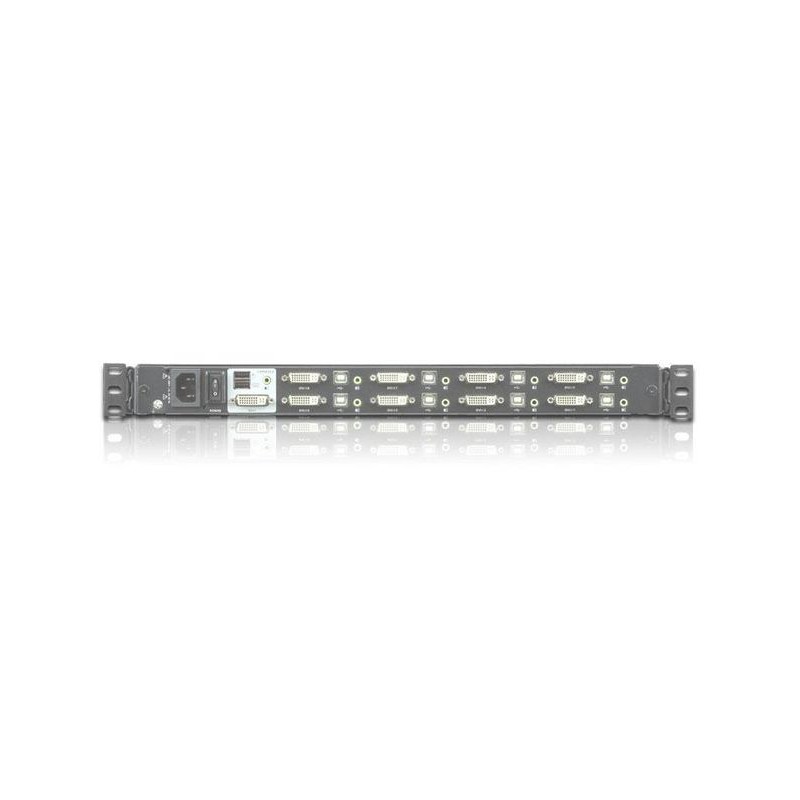

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM with a 17.3” Widescreen DVI Full HD LCD monitor
- A single console controls up to 64 computers by cascade to 1 level and connect up to 8 switches
- Superior video quality – 1920 x 1080 @ 60Hz; DDC2B
Specifications
Design
| Housing material | Metal/Plastic |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
Display
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 17.3 " |
| On Screen Display (OSD) | Yes |
Logistics data
| Master (outer) case gross weight | 16580 g |
| Master (outer) case height | 13.5 cm |
| Master (outer) case length | 82.5 cm |
| Master (outer) case net weight | 13500 g |
| Master (outer) case width | 66 cm |
| Products per master (outer) case | 1 pc(s) |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Manual | Yes |
| Quick installation guide | Yes |
Performance
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1/255 s |
Ports & interfaces
| Console ports | 3.5mm headphone/DVI-I/USB A |
| Console USB ports quantity | 2 |
| DVI-I ports quantity | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Video port type | DVI-I |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Input voltage | 100 - 240 V |
| Power source | AC |
Vendor information
| Brand Name | Aten |
| Warranty | 2 |
Product Details
CL6708MW
2 Items
New
Data sheet
- Gestellmontage
- Yes
- Bildschirmanzeige (OSD)
- Yes
- Eingangsspannung
- 100 - 240 V
- Anzeige
- LCD
- LED-Anzeigen
- Yes
- Handbuch
- Yes
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Maximum Auflösung
- 1920 x 1200 Pixel
- Anzahl der DVI-I-Anschlüsse
- 8
- Eingebautes Display
- Yes
- Produkte pro Master (Außen)-Case
- 1 Stück(e)
- Schnellinstallationsanleitung
- Yes
- Diagonale anzeigen
- 17.3 "
- Gehäusematerial
- Metal/Plastic
- Anzahl der kontrollierten Computer
- 8
- Anzahl der USB 2.0 Typ-B-Anschlüsse
- 8
- Anzahl der USB-Anschlüsse der Konsole
- 2
- Konsolenports
- 3.5mm headphone/DVI-I/USB A
- Mausanschlusstyp
- USB
- Typ des Tastaturanschlusses
- USB
- Typ des Videoanschlusses
- DVI-I
- Energiequelle
- AC
- HD-Typ
- WUXGA
- Brand Name
- Aten
- Warranty
- 2
- Betriebstemperatur (TT)
- 0 - 40 °C
- Lagertemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 0 - 80 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 0 - 80 %
- Produktfarbe
- Black
- Master (äußere) Gehäusebreite
- 66 cm
- Master (äußere) Gehäusehöhe
- 13.5 cm
- Master (äußere) Gehäuselänge
- 82.5 cm
- Bruttogewicht des (äußeren) Hauptkoffers
- 16580 g
- Nettogewicht des (äußeren) Hauptkoffers
- 13500 g
- Scan-Intervall
- 1/255 s
Specific References
- EAN13
- 5715328143500
- MPN
- CL6708MW-ATA-XG
