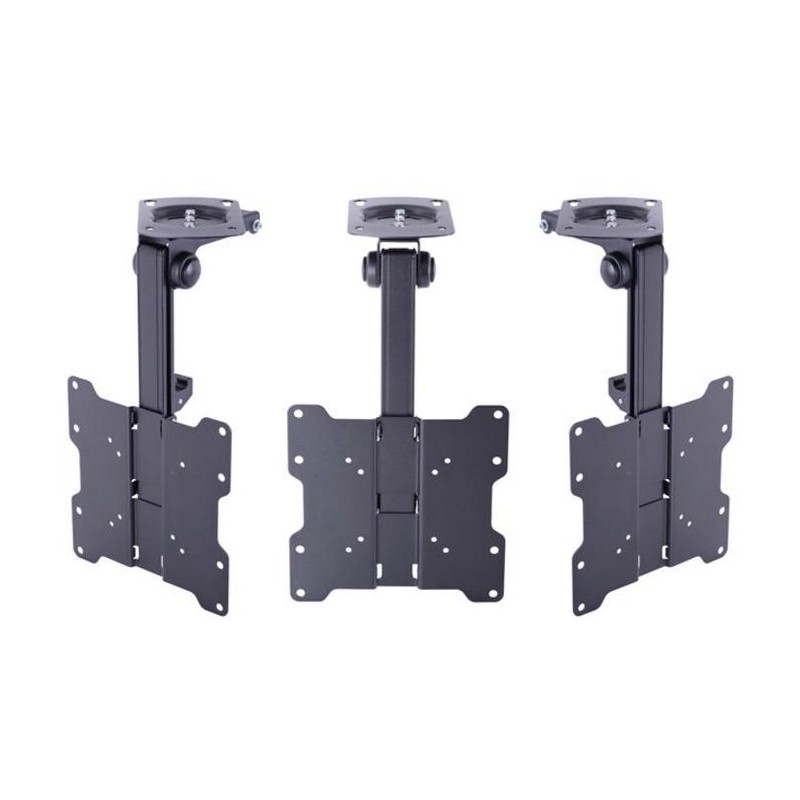

Multibrackets M VESA Flip Down - Mounting kit ( mounting plate, mounting arm ) for LCD display - black - screen size: 15" - 37" - ceiling mountable, under-the-cabinet, counter
Descrizione
Are you in the need of an under table or counter mounted TV or display? The M VESA Flip Down is the ideal mount for your TV installation if an under the counter installation is wanted. Often placed in kitchens, offices, schools or stores it can fold your screen down or up -90 — 0. This under the cabinet / ceiling mount includes a locking system to keep the screen in position and is a very practical solution supporting screens both smaller and larger, 15" to 37".
The M VESA Flip Down is the ideal choice when you want a TV in a location where space is needed or a TV function is needed only from time to time, or for pure aesthetic reasons.
The mounts arm length is easily adjusted to the size of your TV and will hold your flat panel safely in place and quickly fold down in position. The mount also includes a locking mechanism to safely lock your flat screen in place a while traveling, thus minimizing fatigue and vibration.
The flip down uses a rapid flip down transition technique and when in down folded position the TV can also swivel in both left and right directions. Multiple viewing positions is that way possible to achieve.
The M VESA Flip Down is the ideal choice when you want a TV in a location where space is needed or a TV function is needed only from time to time, or for pure aesthetic reasons.
The mounts arm length is easily adjusted to the size of your TV and will hold your flat panel safely in place and quickly fold down in position. The mount also includes a locking mechanism to safely lock your flat screen in place a while traveling, thus minimizing fatigue and vibration.
The flip down uses a rapid flip down transition technique and when in down folded position the TV can also swivel in both left and right directions. Multiple viewing positions is that way possible to achieve.
- The ideal solution for mounting under a cabinet
- Supporting 15" up to 37" flat panel displays
- Locking Mechanism for rigid storage when positioned up against cabinet/counter/ceiling
- Rapid transition from static to dynamic viewing-90 — +0 up and down folded position
- Swivel +/- 45 degrees (left and right)
- Lightweight construction that is easy to mount
- Cabinet/counter/ceiling plate dimensions: 145mm x 105mm
- Max screen weight capacity: 20 kg
- Instructions and mounting hardware included
Specifiche
Design
| Product colour | Black |
Ergonomics
| Swivel angle range | -45 - 45 ° |
Logistics data
| Products per shipping (inner) case | 8 pz |
| Shipping (inner) case gross weight | 17000 g |
| Shipping (inner) case height | 24.5 cm |
| Shipping (inner) case length | 34.5 cm |
| Shipping (inner) case width | 74.5 cm |
Mounting
| Maximum screen size | 37 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 20 kg |
| Minimum screen size | 15 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Ceiling |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/200 x 200/75 x 75 mm |
| Suitable for computer monitor | Yes |
Packaging content
| Mounting kit | Yes |
Technical details
| Metal packaging weight | 1570 g |
| Paper/cardboard packaging weight | 300 g |
| Plastic packaging weight | 30 g |
Vendor information
| Brand Name | Multibrackets |
| Warranty | 1 |
Weight & dimensions
| Aluminium content weight | 1270 g |
| Other metals content weight | 0 g |
| Steel content weight | 300 g |
Dettagli del prodotto
8 Articoli
Nuovo
Scheda tecnica
- Compatibilità interfaccia di montaggio (min)
- 75 x 75 mm
- Angolo di rotazione
- -45 - 45 °
- Adatto per monitor di computer
- Yes
- Schnittstelle für Schalttafeleinbau
- 100 x 100/200 x 100/200 x 200/75 x 75 mm
- Montage Kits
- Yes
- Maximale Traglast
- 20 kg
- Paper/cardboard packaging weight
- 300 g
- Aluminium content weight
- 1270 g
- Steel content weight
- 300 g
- Other metals content weight
- 0 g
- Minimale Bildschirmgröße
- 15 "
- Befestigungsart
- Ceiling
- Produkte pro (innerem) Versandkarton
- 8 Stück(e)
- Brand Name
- Multibrackets
- Warranty
- 1
- Produktfarbe
- Black
- Maximum Bildschirmgröße
- 37 "
- Anzahl der unterstützten Displays
- 1
- Maximum VESA-Halterung
- 200 x 200 mm
- Metal packaging weight
- 1570 g
- Plastic packaging weight
- 30 g
- Bruttogewicht des (inneren) Versandkartons
- 17000 g
- Höhe des Versandkartons (innen)
- 24.5 cm
- Versand (innere) Kartonlänge
- 34.5 cm
- Versandkartonbreite (innen)
- 74.5 cm
Riferimenti Specifici
- MPN
- 7350022739826
