561174

Save installation time and money with PoE.

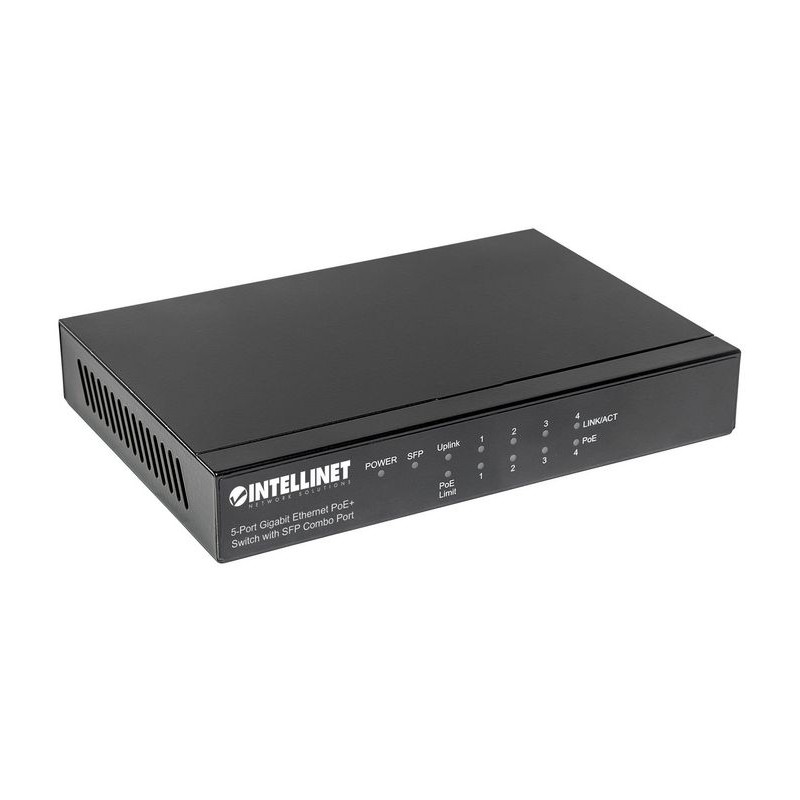

The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch with SFP Combo Port passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.

Power over Ethernet 802.3at
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.

Green Ethernet Technology
More often than not, a network switch does not utilize all of its ports at all times. Normally, when a computer, notebook, network printer or other network device powers down, the switch continues to consume the same amount of power as if it were active. To overcome this waste of energy, the Intellinet Network Solutions 5-Port Gigabit PoE+ Switch employs the new energy-efficient IEEE 802.3az technology, which detects link status to all connected devices and reduces the power usage of ports that are not in use. To facilitate maximum network performance, the Intellinet Network Solutions switch adjusts power output based on the length of the network cable that is connected to a particular port. When things slow down, it automatically scales back power usage to conserve energy and save money.

Gigabit Uplink
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch is equipped with one 1-Gigabit combo port. Available as both an onboard RJ45 port and an optional SFP transceiver module slot, the Gigabit uplink port is ideal for connecting the switch to the network's backbone, a server or, perhaps, your video recording solution (NVR).

* Total PoE budget for this switch is 80 watts. Per-port average power distribution is 20 watts; maximum per-port power usage cannot exceed 30 watts.

• Connecteur d'alimentation et de données pour 4 périphériques réseau PoE maximum.
• Réduit les coûts d'installation en utilisant les câbles existants pour transférer les données et alimenter les dispositifs.
• Quatre ports PoE RJ45 compatibles IEEE 802.3at/af 10/100/1000 Mbits/s et un port Gigabit mixte
• Ports de sortie RJ45 PoE/PoE+ compatibles IEEE 802.3at/af.
• La technologie d'économie d'énergie Green Ethernet désactive les ports non utilisés et adapte les niveaux de charge en fonction de la longueur de câble.
• Alimentation en sortie : jusqu'à 30 watts par port
• Budget de puissance PoE : 80 watts
• Prend en charge les périphériques PoE compatibles IEEE 802.3at et IEEE 802.3af (points d'accès sans fil, téléphones VoIP, caméras IP).
• Prend en charge la détection IEEE 802.3at/af, la détection des courts-circuits, et la protection contre les pics d'intensité et la surtension.
• Tous les ports RJ45 offrent le basculement MDIX automatique et la négociation automatique.
• Conforme aux normes IEEE 802.3az (Energy Efficient Ethernet, EEE).
• Architecture de commutation de type « Store and forward » (stockage et retransmission).
• Structure du commutateur de 10 Gbits/s
• Prend en charge les trames surdimensionnées, jusqu'à 9 ko.
• Contrôle de flux IEEE 802.3x pour le full duplex.
• Conception sans ventilateur pour un fonctionnement silencieux.
• Coffret métallique sur bureau.
