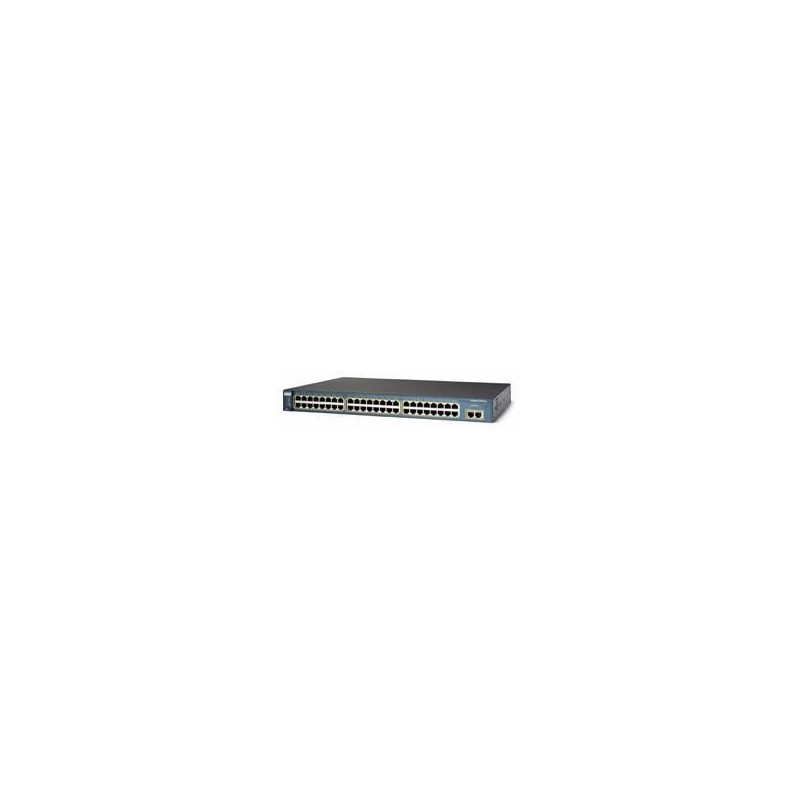

The Cisco® Catalyst® 2950SX-48, 2950T-48, 2950SX-24, 2950-24, and 2950-12 switches, members of the Cisco Catalyst 2950 Series, are standalone, fixed-configuration, managed 10/100-Mbps switches providing basic workgroup connectivity for small to midsize networks. These wire-speed desktop switches come with Standard Image software features and offer Cisco IOS® Software functions for basic data, voice, and video services at the edge of the network. Embedded in all Cisco Catalyst 2950 Series switches is the Cisco Cluster Management Suite (CMS) software, which allows users to simultaneously configure and troubleshoot multiple Cisco Catalyst desktop switches using a standard Web browser. In addition, with the newly launched Cisco Express Setup, users now have the option to set up the switch through a Web browser, eliminating the need for more complex terminal emulation programs and knowledge of the command-line interface (CLI). Cisco Express Setup reduces the cost of deployment by enabling less-skilled personnel to set up switches quickly. This product line offers two distinct sets of software features and a range of configurations to allow small, midsize, and enterprise branch offices to select the right combination for the network edge. For networks that require additional security, advanced quality of service (QoS), and high availability, Enhanced Image software delivers intelligent services such as rate limiting and security filtering for deployment at the network edge.
Spécifications
Autres caractéristiques
Alimentation d'énergie
25 W
Caractéristiques réseau
LAN,W-lan
Dimensions (LxPxH)
445 x 445 x 413 mm
Ports E/S
48 10/100 ports and two fixed GBIC-based 1000BASE-X uplink ports
Programme de gestion
Web-based Cisco CMS Software
Taux de transfert de données
100 Mbit/s
Conditions environnementales
Humidité relative de fonctionnement (H-H)
10 - 85 %
Température d'opération
5 - 55 °C
Protocoles
Protocole de commutation
EEE 802.1w (RSTP),IEEE 802.1D
Protocoles de gestion
SNMP, CLI,SNMPv3, SSHv2
Protocoles de liaison de données
PAgP
représentation / réalisation
Systèmes d'exploitation compatibles
Cisco IOS
Réseau
Full duplex
Oui
Transmition des données
Débit de transfert de données
10/100/1000 Mbps
Répertoire MAC
12000 entrées
Vendor information
Brand Name
Cisco
Warranty
1
Détails du produit
2026-02-16
Reconditionné
Fiche technique
Caractéristiques réseau
LAN,W-lan
MAC-Adresstabelle
12000 Eintragungen
Verwaltungsprotokolle
SNMP, CLI,SNMPv3, SSHv2
Dimensions (WxDxH)
445 x 445 x 413 mm
Power supply
25 W
Datenverbindungsprotokolle
PAgP
Vollduplex
Yes
Kompatible Betriebssysteme
Cisco IOS
Brand Name
Cisco
Warranty
1
Betriebstemperatur (TT)
5 - 55 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 85 %
Datenübertragungsrate
100 Mbit/s
Verwaltungsplattform
Web-based Cisco CMS Software
Unterstützte Datenübertragungsraten
10/100/1000 Mbps
I/O-Ports
48 10/100 ports and two fixed GBIC-based 1000BASE-X uplink ports
