736467

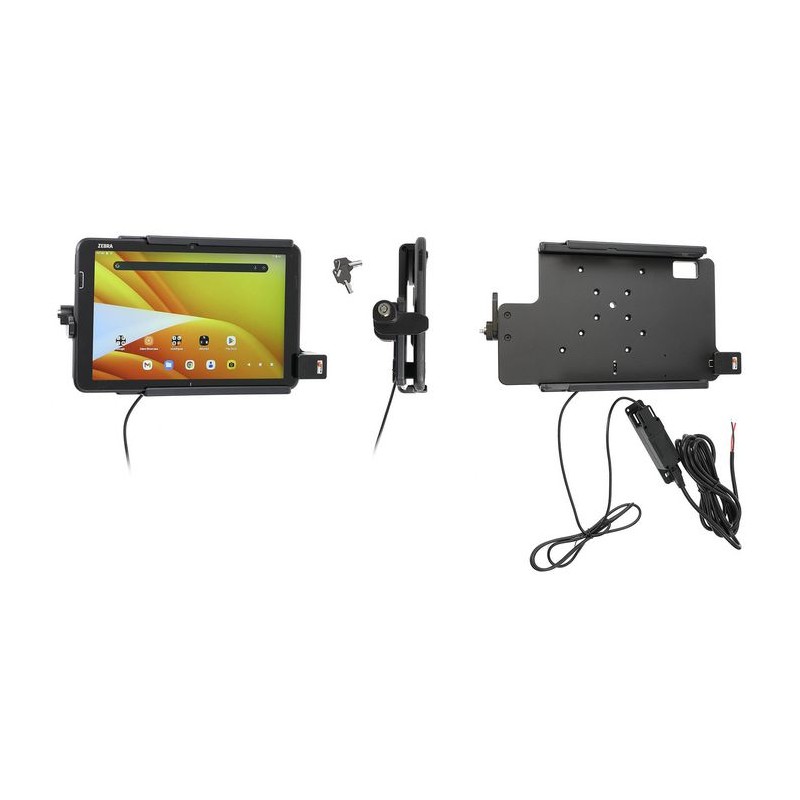

Holder with key-lock
USB-C 3.1 holder. Active holder for fixed installation. Fits devices without Rugged Boot / Exoskeleton, Zebra original expansion back. With AMPS, VESA 75 holes.

Fits for:
Zebra ET401 10"

The Zebra ET401 series holders from Brodit are designed to withstand frequent wear and tear in professional every day use, providing a more productive working day and better working environment with your device within sight and reach. Safe, efficient and convenient! To get more out of your holder, you can choose both a power supply or accessories such as a USB hub.

This cradle is the perfect choice when you want to have your device sequrely locked in place while easy accessible. The key lock prevents the tablet from being removed by unauthorized personnel, in order to remove the device you will need a key (2 keys included).

The cradle is customized with a perfect fit. It has a robust design for use in a normal forklift environment. You have full access to the camera,scanner, buttons and ports while docked. Easy one-hand insertion and removal.

Attach the cradle onto any flat surface or Pedestal Mount in a forklift, truck, distribution vehicle, warehouse, table top etc. Backplate with 4 mm AMPS and 4 mm VESA 75 standard holes. Made of high grade ABS-, Acetal-plastic. Color: Black. Made in Sweden.

Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.


Discreet hard-wire installation with hidden cables

Keep your device in a charging cradle and you will always have a freshly charged battery! This holder features a straight cord for connection inside the vehicle´s dashboard.
Connect the power cable with a 7A fuse. Professional installation recommended.

Specifications

Input voltage: 12-24V
Input current: 7A Max
Output voltage:
Output USB-C: DC 5V/3A, 9V/3A, 12V/2,5A, 15V/2A, 20V/1,5A, 30W Max, PPS (DC 3.3-11V/3A)
USB-C Charging Protocols: PPS, PD 3.0, PD 2.0, QC 3.0, QC 2.0, AFC, FCP, PE 2.0, BC1.2, DCP, Apple 2.4A
Output USB-A: DC 5V/3A, 9V/2A, 10V/2A, 12V/2.5A 30W Max
USB-A Charging Protocols: QC 3.0, QC 2.0, AFC, FCP, HVSCP, PE 2.0, BC1.2, DCP, Apple 2.4A

Input connections: 2-pin connector to open ends
Output connections: USB-A, USB-C
Rated power: 60W
Input & output protection: Overvoltage, Low-voltage, Overcurrent, Short-circuit, Over-temperature
