One dock. One cable. Ultimate Performance.The Dell Thunderbolt™ Dock TB16 -180W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

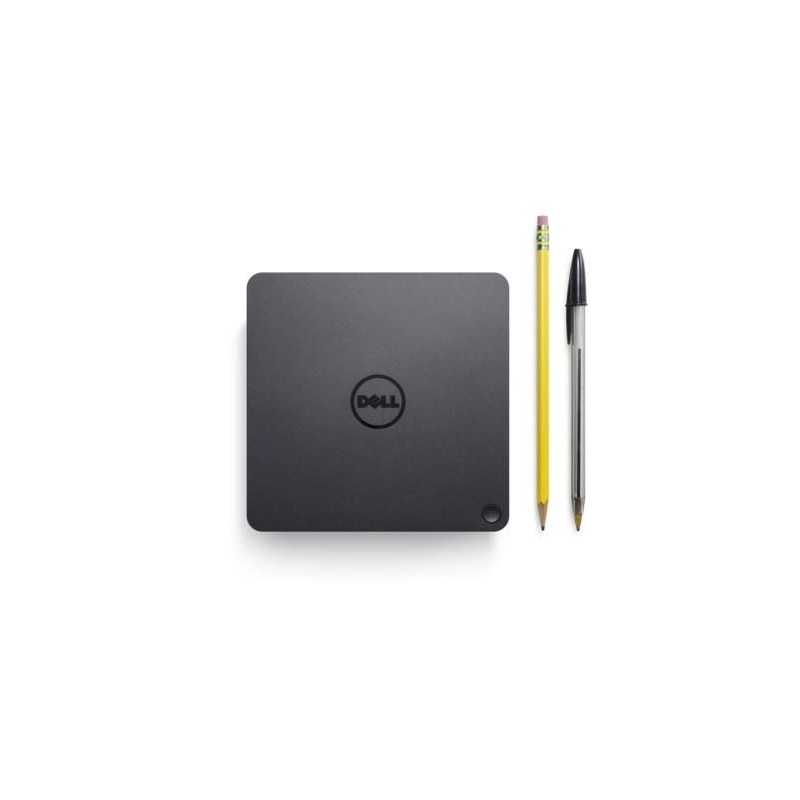

Small footprint and big flexibilityThe Dell Thunderbolt™ Dock TB16 -180W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
One source for powerThe Dell Thunderbolt™ Dock TB16 -180W can provide power to your laptop (at 19.5V) and can also provide power to attached Thunderbolt™ 3 peripherals. With the ability to provide up to 60W of power to an external Thunderbolt™ 3 device, this version is best for Dell Latitude and XPS notebooks and 2-in-1s with a Thunderbolt™ 3 port that require up to 65W of power.
Connections and Features:- Supports 3 displays
- Two USB 2.0 ports;
- Three USB 3.0 ports;
- Thunderbolt 3 (USB-C) port;
- Speaker output (rear);
- Combo audio (front);
- Gigabit Ethernet;
- Kensington Lock Slot;
- 7.4 mm DC-IN Power Input.
OverviewThe Dell Thunderbolt™ Dock TB16 -180W allows you to quickly connect your mobile workstation to a single data and power source for ultimate display performance and speedy data transfers. The dock connects to Thunderbolt™ 3 enabled notebooks* with a single USB Type-C Thunderbolt™ Cable, allowing users to quickly connect to multiple displays and peripherals, providing power to the notebook, and freeing up space on your desk and in your workspace.
Spécifications
Connectivité
| Casque connection | 3,5 mm |
| Combo casque / microphone Port | Oui |
| Connecteur USB | USB Type-A/USB Type-C |
| Interface de l'hôte | Thunderbolt 3 |
| Nombre de ports VGA (D-Sub) | 1 |
| Quantité d'interface DisplayPorts | 1 |
| Quantité de Mini DisplayPorts | 1 |
| Quantité de ports de type A USB 3.2 Gen 1 (3.1 Gen 1) | 3 |
| Quantité de ports de type C USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
| Quantité de ports HDMI | 1 |
| Quantité de ports Thunderbolt 3 | 1 |
| Quantité de Ports USB 2.0 | 2 |
| Sortie de casque | 1 |
| Sortie ligne | Oui |
| Technologie de connectivité | Avec fil |
Contenu de l'emballage
| Adaptateur secteur fourni | Oui |
| Câbles inclus | USB Type-C |
| Manuel d'utilisation | Oui |
Logiciel
| Prise en charge du système d'exploitation Windows | Oui |
Puissance
| Consommation (max) | 180 W |
| Type de source d'alimentation | Secteur |
représentation / réalisation
| Compatibilité | Precision 15 3000 Series (3510)/Precision 15 5000 Series (5510)/Precision 15 7000 Series (7510)/Precision 17 7000 Series (7710)/Precision 3520/Precision 5520/XPS 12 (9250)/XPS 13 (9350)/XPS 13 (9360)/XPS 15 (9550)/XPS 9560 |
| Compatibilité de marque | Dell |
| Couleur du produit | Noir |
| Lecteur de cartes mémoires intégré | Non |
| Voyants | Oui |
Réseau
| Ethernet/LAN | Oui |
| LAN Ethernet : taux de transfert des données | 10/100/1000 Mbit/s |
| Nombre de port ethernet LAN (RJ-45) | 1 |
