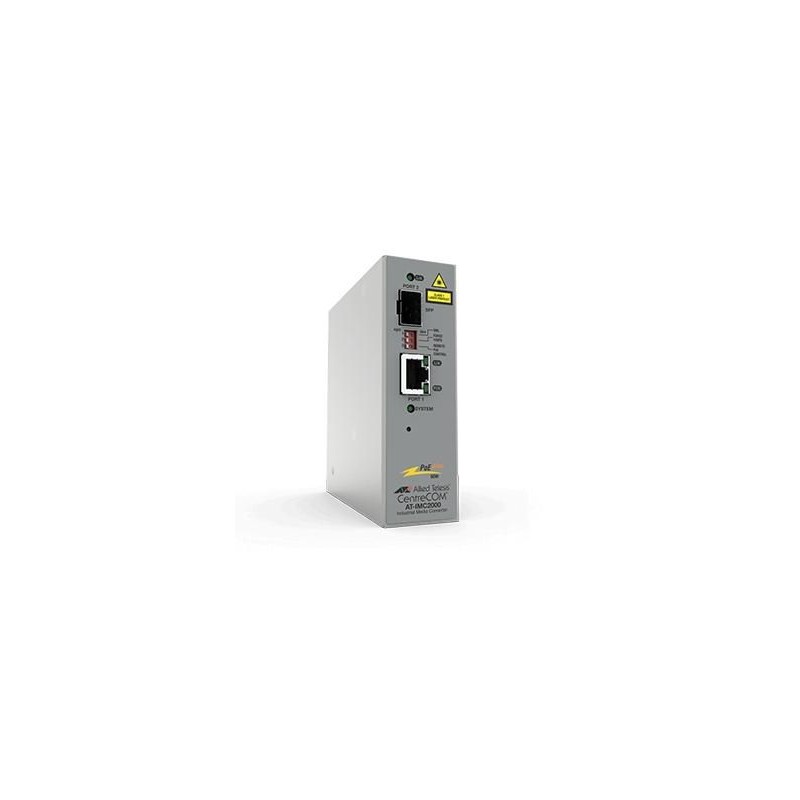

AT-IMC2000TP/SP-980
TAA, 10/100/1000T POE+ to 100X/1000X SFP Industrial Temp Gigabit Media Converter
Description
10/100/1000T to 100Mbps/1000Mbps SFP industrial temperature PoE+ media converter. These converters support 802.3at, PoE+, 30W, LTPoE++ and 4-pair up to 70W. The IMC2000TP/SP-980 features Remote Power Cycle and Smart MissingLink™ (SML) and is fanless for silent operation.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
- Converts speed as well as media type
- Supports 802.3at, PoE+, 30W and LTPoE++, 4-pair up to 70W
- Supplies up to 70W of PoE power
- Supports 100 and 1000Mbps fiber SFP modules (IMC2000/SP)
- Auto MDI/MDI-X
- Smart Missing Link (SML)
- Supports up to 10K jumbo frames
- Supports multi-mode fiber
- 4K MAC address table
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Standalone or DIN rail mount
- Fanless for silent operation
Spécifications
Certificat
| Certificats de conformité | RoHS |
Conditions environnementales
| Altitude de fonctionnement | 0 - 3048 m |
| Humidité relative de fonctionnement (H-H) | 5 - 95 % |
| Taux d'humidité relative (stockage) | 5 - 95 % |
| Température d'opération | -40 - 75 °C |
| Température hors fonctionnement | -40 - 85 °C |
Connectivité
| Connecteur de fibre optique | SFP |
| Ports Fibre Channel | 1 |
| Quantité de ports Power Over Ethernet plus (PoE+) | 1 |
| Technologie de connectivité | Avec fil |
Design
| Certification | EMI/Emission & Stability/EN55024 (immunity standard)/EN55032 Class A/EN55035/FCC Class A/TAA/VCCI Class A |
| Code (IP) Internationale Protection | IP30 |
| Couleur du produit | Gris |
| Interne | Non |
| Montage des rails DIN | Oui |
| Sécurité | UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark) |
| Voyants | Oui |
Détails techniques
| Certificats de durabilité | RoHS |
Puissance
| Connexion Ethernet, supportant l'alimentation via ce port (PoE) | Oui |
| Tension d'entrée | 51 - 57 V |
représentation / réalisation
| Longueur d'onde | 850 nm |
| pouvoir Rx (max) | -3 dBmW |
| pouvoir Rx (min) | -17 dBmW |
| pouvoir Tx (max) | -4 dBmW |
| pouvoir Tx (min) | -9,5 dBmW |
Réseau
| Auto MDI/MDI-X | Oui |
| Convertisseur d'interface d'entrée | 1000Base-T/100Base-T/10Base-T |
| Débit de transfert des données maximum | 1000 Mbit/s |
| Enregistrement-et-réémission | Oui |
| Interface de sortie du convertisseur | 1000Base-X/100Base-X |
| LAN Ethernet : taux de transfert des données | 10/100/1000 Mbit/s |
| Négociation automatique | Oui |
| Support de trames étendues (Jumbo Frames) | Oui |
| Support VLAN | Oui |
| Système recto-verso | Complète/Demi |
| Taux de transfert des paquets (1 Gbps) | 1488000 pps |
| Taux de transfert des paquets (10 Gbps) | 14880 pps |
| Taux de transfert des paquets (100 Mbps) | 148800 pps |
| Trames géantes | 10000 |
| Type d'interface Ethernet | Fast Ethernet/Gigabit Ethernet |
Vendor information
| Brand Name | Allied Telesis |
| Warranty | 1 |
Détails du produit
2026-03-06
Neuf
Fiche technique
- Auto MDI/MDI-X
- Yes
- Taux de transfert des paquets (1 Gbps)
- 1488000 pps
- Sécurité
- UL 62368-1, EN 62368-1, UL 60950-1 (UL mark), CAN/CSA C22.2 No. 60950-1 (cUL mark), EN 60950-1 (TUV mark)
- Jumbo-Rahmen
- 10000
- Unterstützung für Jumbo-Frames
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000 Mbit/s
- Anzahl der Power over Ethernet Plus (PoE+) Ports
- 1
- Stromversorgung über Ethernet (PoE)
- Yes
- Maximum Datenübertragungsrate
- 1000 Mbit/s
- Ethernet-Schnittstellentyp
- Fast Ethernet/Gigabit Ethernet
- Speichern und weiterleiten
- Yes
- Eingangsspannung
- 51 - 57 V
- Compliance certificates
- RoHS
- LED-Anzeigen
- Yes
- Internationaler Schutzcode (IP).
- IP30
- Konnektivitätstechnologie
- Wired
- Zertifizierung
- EMI/Emission & Stability/EN55024 (immunity standard)/EN55032 Class A/EN55035/FCC Class A/TAA/VCCI Class A
- Nachhaltigkeitszertifikate
- RoHS
- Anzahl der Glasfaseranschlüsse
- 1
- Wellenlänge
- 850 nm
- Glasfaseranschluss
- SFP
- Betriebshöhe
- 0 - 3048 m
- Duplex-System
- Full/Half
- VLAN-Unterstützung
- Yes
- Brand Name
- Allied Telesis
- Warranty
- 1
- Betriebstemperatur (TT)
- -40 - 75 °C
- Lagertemperatur (TT)
- -40 - 85 °C
- Relative Luftfeuchtigkeit bei Lagerung (HH)
- 5 - 95 %
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Intern
- No
- Produktfarbe
- Grey
- Auto-Negotiation
- Yes
- Paketweiterleitungsrate (10 Mbps)
- 14880 pps
- Paketweiterleitungsrate (100 Mbps)
- 148800 pps
- DIN-Schienenmontage
- Yes
- Sendeleistung (max.)
- -4 dBmW
- Sendeleistung (min)
- -9.5 dBmW
- Ausgangsschnittstelle des Konverters
- 1000Base-X/100Base-X
- Eingangsschnittstelle des Konverters
- 1000Base-T/100Base-T/10Base-T
- Empfangsleistung (max.)
- -3 dBmW
- Empfangsleistung (min)
- -17 dBmW
Références spécifiques
- MPN
- AT-IMC2000TP/SP-980
