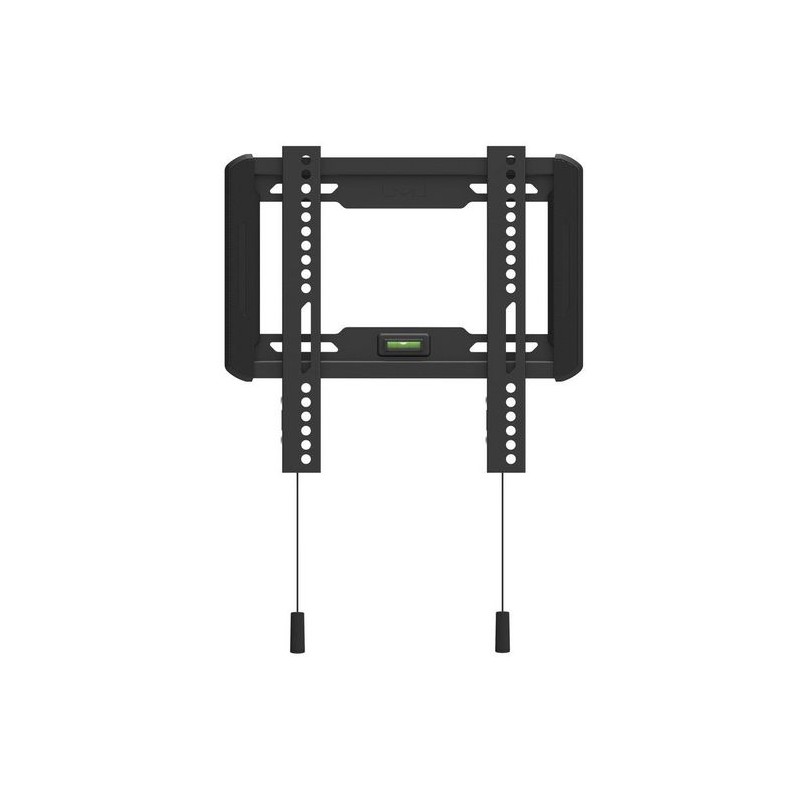

The all new M OLED Wallmount Fixed is designed to perfectly fit the the new ultra thin OLED TV´s by LG*. Enhance your OLED installation with the easy to install M OLED Wallmount Fixed. Adjust and correctly set your TV position with the wall mount kit and hang your TV very snug to wall. When installed the TV can slide from side-to-side for perfect positioning on the wall. Easy release your TV via safety straps well hidden behind the TV with smart magnets._x000D_
M OLED Wallmount Fixed is about 19 mm thin. The M OLED Wallmount Fixed uses only the very highest metal quality to keep its thin profile and make it match the high end TV it supports. This makes the wall mount construction super strong and makes it is tested to withhold many times the weight of the QLED screens it was aimed for._x000D_
Available in black it matches most LG OLED´s perfectly._x000D_
OLED TV list_x000D_
LG OLED65E8PLA_x000D_
LG OLED65G8PLA_x000D_
LG OLED65C8PLA_x000D_
LG OLED65B8PLA_x000D_
LG OLED65B8SLC_x000D_
LG OLED65W7V_x000D_
LG OLED65G7V_x000D_
LG OLED65E7V_x000D_
LG OLED65C7V_x000D_
LG OLED65B7V_x000D_
LG OLED55E8PLA_x000D_
LG OLED55B8PLA_x000D_
LG OLED55B8SLC_x000D_
LG OLED55B7V_x000D_
LG OLED55C7V_x000D_
_x000D_
*LG is a registered trademark of LG Electronics Co., Ltd
- Holds TVs up to 55" or 50kg
- Supports VESA up to 200x200
- Low profile design offers sufficient room for cable connections and cooling
- Multibrackets straps with smart magnets makes single-person installation possible
- Open frame provides ample room for power and A/V cutouts behind TV
- Vertical rails slide on wall plate for minor left/right lateral shift after installation
- Full hardware kit included
Spécifications
Design
Données logistiques
| Hauteur du carton d'expédition | 26,7 cm |
| Largeur du carton d'expédition | 30 cm |
| Longueur du carton d'expédition | 35,3 cm |
| Poids brut du casier d’expédition (interne) | 14500 g |
| Produit par casier d’expédition (interne) | 10 pièce(s) |
| Produits par palette(EU) | 240 pièce(s) |
Ergonomie
| Distance du mur (max) | 2,3 cm |
Montage
| Capacité de charge maximale | 50 kg |
| Compatibilité interface de montage (max) | 200 x 200 mm |
| Compatibilité interface de montage (min) | 50 x 50 mm |
| Nombre d'affichages pris en charge | 1 |
| Norme VESA | 100 x 100/100 x 200/200 x 100/200 x 200/50 x 50/75 x 75 mm |
| Taille maximale de l’écran | 55 " |
| Taille minimale de l'écran | 24 " |
| Type de montage | Mur |
Poids et dimensions
Vendor information
| Brand Name | Multibrackets |
| Warranty | 1 |
