Failure safety or performanceDouble the security of your data by mirroring with RAID 1 or push the performance of your drives and data transfer rates to the limits with RAID 0. Use each installed drive separately with SINGLE mode or the entire available storage volume in LARGE mode.
Data transfer at top speedWith USB 3.2 Gen 2 you enjoy data transfer rates of up to 10 Gbit/s without waiting times or delay and can transport files from one drive to another within seconds. To suit your current equipment best, the IBRD2253- C31 comes fully equipped with both a USB Type-C® and a Type-A cable.
Compact and resilientThe enclosure is made from aluminium and therefore very durable. Designed with passive cooling and without a fan, both professional and private workplaces benefit from this very silent setup. A status LED keeps you informed about the current state of the installed drives at all times.
- RAID Enclosure with four modes: The IB-RD2253-C31 is equipped with four RAID modes in total. You can use RAID 1 for improved data security or RAID 0 for better performance, as well as SINGLE and LARGE modes for special use cases

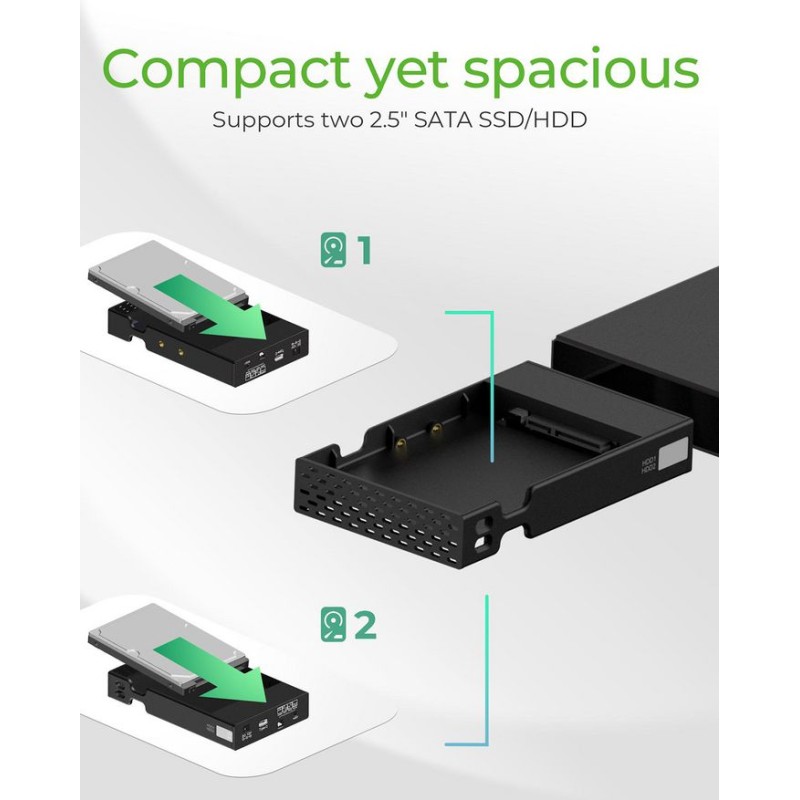

- Compact yet spacious: With space for two 2.5'' SATA SSD drives, the IB-RD2253-C31 offers exceptional storage capacity at an uncompromisingly small enclosure size, making this compact RAID enclosure ideal for the mobile use
- Completely silent: The enclosure operates completely silent because of the fanless design. Due to the efficient heat dissipation properties of the aluminium casing, your drives remain at an optimal temperature
- Data transfer at top speed: With USB 3.2 Gen 2 you benefit from data transfer rates of up to 10 Gbit/s. Data of almost any size is transferred to the drives within seconds and can be retrieved just as quickly
- Plug & Play: Just plug in and get started: Once the drives are mounted in the enclosure, you can connect the IB-RD2253-C31 to your computer and start using it straight away. No additional software necessary
Spécifications
Configuration minimale du système
| Prise en charge du système d'exploitation Mac | Oui |
| Prise en charge du système d'exploitation Windows | Oui |
Connectivité
| Connecteur USB | USB Type-C |
| Connectivité USB | Oui |
| Type de connecteur USB | Femelle |
| Version USB | 3.2 Gen 2 (3.1 Gen 2) |
Contenu de l'emballage
| Adaptateur secteur fourni | Oui |
| Câbles inclus | USB Type-A vers USB Type-C/USB Type-C vers USB Type-C |
| Manuel d'utilisation | Oui |
| Tournevis inclus | Oui |
| Vis incluses | Oui |
Design
| Couleur du produit | Noir |
| Matériel | Aluminium/Plastique |
| Type de produit | Boîtier disque dur/SSD |
| Voyants | Access/Énergie/RAID mode |
Données logistiques
| Hauteur du casier principal (externe) | 27 cm |
| Largeur du casier principal (externe) | 34,1 cm |
| Longueur du casier principal (externe) | 50,6 cm |
| Poids brut du casier principal (externe) | 10740 g |
| Produit par casier principal (externe) | 20 pièce(s) |
Puissance
| Courant de sortie de l'adaptateur secteur | 2 A |
| Tension d'entrée de l'adaptateur secteur | 230 V |
| Tension sortie de l'adaptateur secteur | 5 V |
| Type de source d'alimentation | CC |
représentation / réalisation
| Plug and Play | Oui |
| Support UASP | Oui |
| Taux de transfert des données | 10 Gbit/s |
Support de stockage
| Hauteurs de lecteur de stockage prises en charge | 9.5 mm |
| Interfaces de lecteur de stockage prises en charge | SATA/Série ATA II/Série ATA III |
| Niveaux RAID | 0/1 |
| Nombre d'unités de stockage pris en charge | 1 |
| Taille de l'unité de stockage | 2.5 " |
Vendor information
| Brand Name | ICY BOX |
| Warranty | 1 |
