Fast on the moveWith USB 3.1 (Gen 2) Type-C™ even higher data transfer rates can be achieved. The high transfer rate of up to 10 Gbit/s is ensured by the supplied USB 3.1 Type-C™ cable and only needs a matching end device in the form of a PC, tablet or similar with Windows® or macOS®.
USB Type-C™ controller based on NVMeIf you wanted to connect an external case with an M.2 SSD via USB Type-C™ in the past, you were limited to SATA models. The new chipset allows NVMe M.2 SSDs to be connected to a USB 3.1 (Gen 2) Type-C™ host computer and enables the full data transfer rate of up to 1000 MB per second.
Lightweight aluminumWeighing less than 40 g, the IB-1816M-C31 features a sleek, compact, and crush-resistant aluminium enclosure that safeguards the M.2 SSD against shock and vibration. Its grooved finned heatsink design supports heat dissipation for an excellent cooling effect and protects the SSD from overheating and thermal throttling even under heavy use.
- ROBUST: The high-quality aluminium housing is very stable and protects the SSD from external damage. The use of an elegant cooling fin design also ensures excellent heat dissipation
- VERSATILE: The enclosure offers high compatibility and supports all common lengths of NVMe SSDs (22x30/42/60/80). It can be used flexibly and is easy to transport
- VERY FAST: Thanks to the Type-C interface and USB 3.1 (Gen 2), transfer rates of up to 10 Gbit/s are achieved. This means your data can be transferred at lightning speed
- COOLING: There is an excellent cooling effect due to the heat sink and the included silicone heat pad. Heat is conducted to the outside to protect your M.2 SSD from overheating and prolong its life

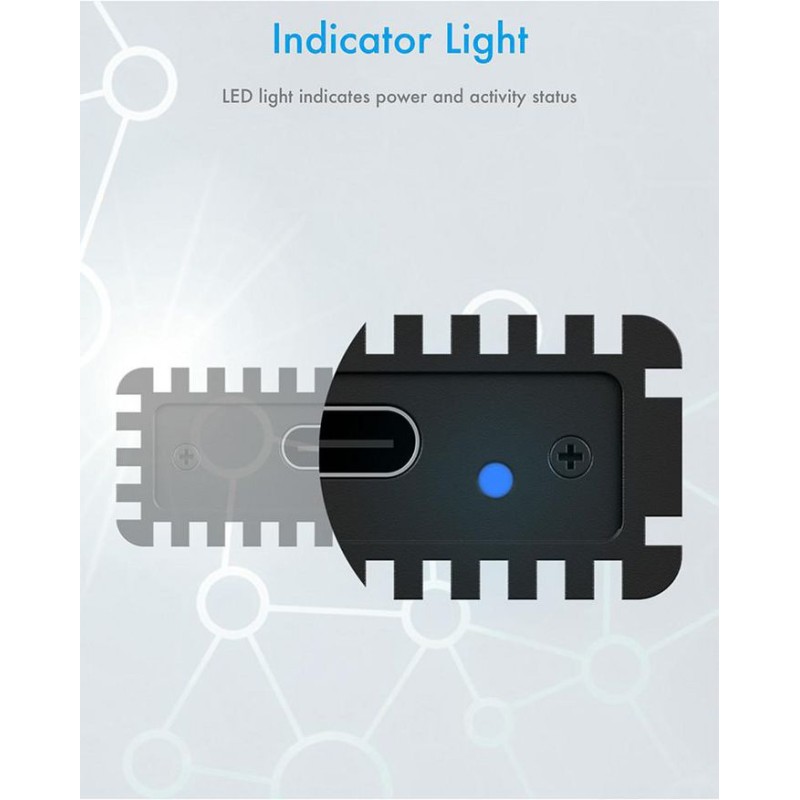

- EASY TO USE: Tool-free installation through Plug & Play and HotSwap. The enclosure can be used directly and everywhere. In addition, there is an LED display for operation and hard disk access
Spécifications
Configuration minimale du système
| Prise en charge du système d'exploitation Mac | Oui |
| Prise en charge du système d'exploitation Windows | Oui |
Connectivité
| Connecteur USB | USB Type-C |
| Connectivité USB | Oui |
| Nombre de ports USB | 1 |
| Type de connecteur USB | Femelle |
| Version USB | 3.2 Gen 2 (3.1 Gen 2) |
Contenu de l'emballage
| Câbles inclus | USB Type-A vers USB Type-C/USB Type-C vers USB Type-C |
| Manuel d'utilisation | Oui |
| Tournevis inclus | Oui |
| Vis incluses | Oui |
Design
| Couleur du produit | Noir |
| Matériel | Aluminium |
| Type de produit | Enceinte ssd |
| Voyants | Oui |
Données logistiques
| Produit par casier principal (externe) | 40 pièce(s) |
Poids et dimensions
Puissance
| Type de source d'alimentation | USB |
représentation / réalisation
| Jeu de composants | JMS583 |
| Plug and Play | Oui |
| Taux de transfert des données | 10 Gbit/s |
Support de stockage
| Hauteurs de lecteur de stockage prises en charge | 2,2 cm |
| Interfaces de lecteur de stockage prises en charge | M.2/PCI Express 3.0 |
| Longueurs des lecteurs de stockage prise en charge | 30/42/60/80 mm |
| Nombre d'unités de stockage pris en charge | 1 |
| Taille de l'unité de stockage | U.2 " |
Vendor information
| Brand Name | ICY BOX |
| Warranty | 2 |
