Description

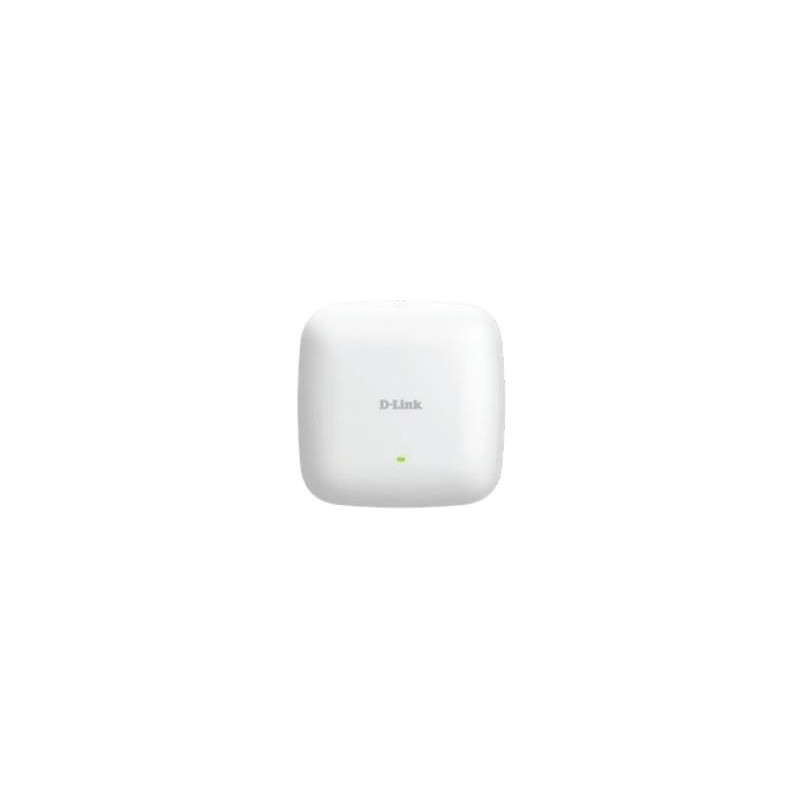

BE9500 Ceiling Mount Access Point (2x2+2x2+2x2)
- Indoor
- Wi-Fi 7 BE11000
- 11 Gbps Tri-Band WiFi
- 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- 1x 10G PoE (802.3bt) + 1x 1GE
Specifications
Antenna
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
Design
| Placement | Ceiling/Wall |
| Product colour | White |
Features
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Automatic channel selection | Yes |
| Ethernet LAN data rates | 10/100/1000/10000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 720 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2880 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5760 Mbit/s |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 21 dBmW |
| Maximum Tx power (6 GHz) | 21 dBmW |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.3bt |
Management features
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Power over Ethernet (PoE) | Yes |
Security
| Number of SSID supported | 24 |
Vendor information
| Brand Name | D-Link |
| Warranty | 2 Month(s) |
Product Details
2025-12-01
New
Data sheet
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- Automatic channel selection
- Yes
- Placement
- Ceiling/Wall
- 6 GHz
- Yes
- Webbasierte Verwaltung
- Yes
- Ethernet-LAN-Datenraten
- 10/100/1000/10000 Mbit/s
- Netzwerkstandards
- IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n/IEEE 802.3bt
- Stromversorgung über Ethernet (PoE)
- Yes
- Ethernet-LAN-Anschlüsse (RJ-45)
- 2
- Antennenrichtungstyp
- Omni-directional
- Antenna type
- Internal
- Brand Name
- D-Link
- Warranty
- 2 Month(s)
- Betriebstemperatur (TT)
- 0 - 40 °C
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- White
- Maximum Datenübertragungsrate (2,4 GHz)
- 720 Mbit/s
- Maximum Datenübertragungsrate (5 GHz)
- 2880 Mbit/s
- Anzahl der unterstützten SSIDs
- 24
- Maximum data transfer rate (6 GHz)
- 5760 Mbit/s
- Maximum Tx power (2.4 GHz)
- 23 dBmW
- Maximum Tx power (5 GHz)
- 21 dBmW
- Maximum Tx power (6 GHz)
- 21 dBmW
Specific References
- ISBN
- 978-1-23456-789-0
- UPC
- 790069477355
- EAN13
- 0790069477355
- MPN
- DAP-E9560
